Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 27, 2018, 05:16 AM

  • 15 0614_15 0613A_09262018_221744.mp4

Date
09/26/2018
W/O
729689
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00601
PipeID
P24099
Time
10:16 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6047
Sewer Name
15 DOUBLE AVENUE TRUNK
City
EL MONTE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
11
Purpose
Routine Assessment
Project
RFIR_WO_729689_TV15205_OCT2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
15 0614
Downstream MH
15 0613A
Dir. of Survey
Downstream
Length Surveyed
233.3 ft.
Total Length
233.3 ft.
Structural Index
4
Structural Quick
4H3H
Structural Rating
315
O&M Index
2
O&M Quick
2H00
O&M Rating
92
Overall Index
3
Overall Quick
—
Overall Rating
407
Pipe schematic from manhole 15 0614 to 15 0613A
MH: 15 0614MH: 15 0613Adownstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 15 06142 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start5.7 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start5.7 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start17.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"49.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"50.8 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start50.8 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish77.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"102.1 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"128.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"149.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"224.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"227.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"231.6 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish231.6 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish231.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish233.3 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 AND 9 O'CLOCK233.3 ft. AMH - Downstream Manhole, Survey Ends - 15 0613A

Observation photos (4)

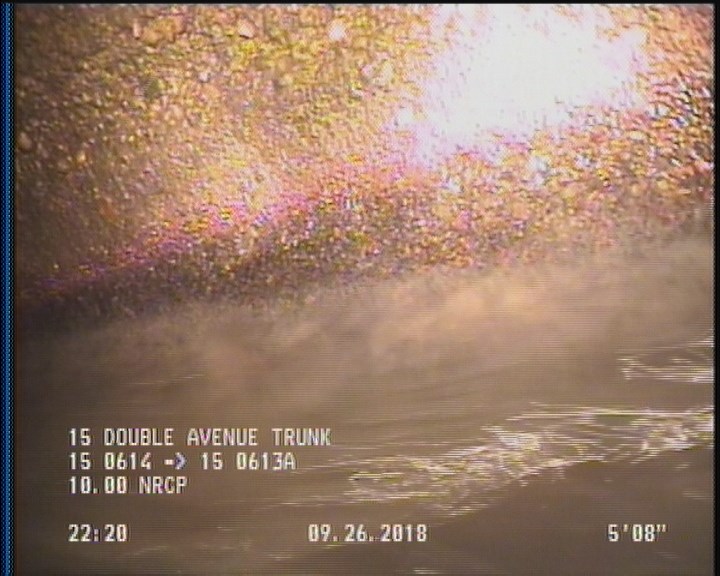

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

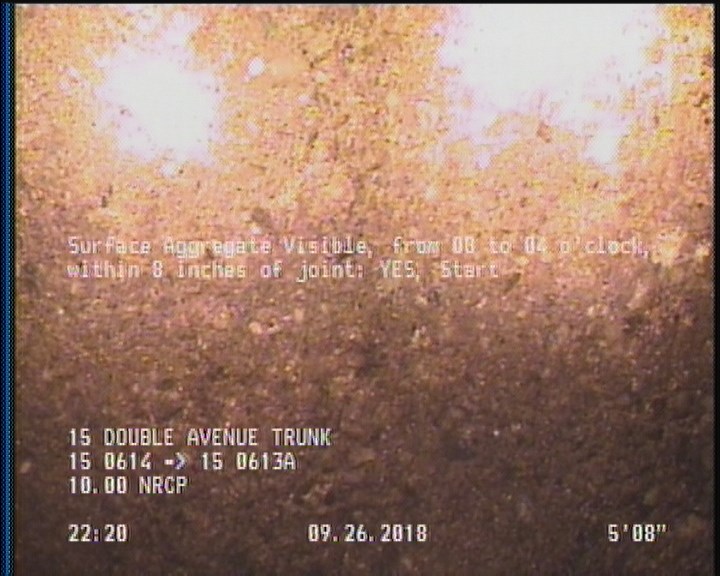

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5.7 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

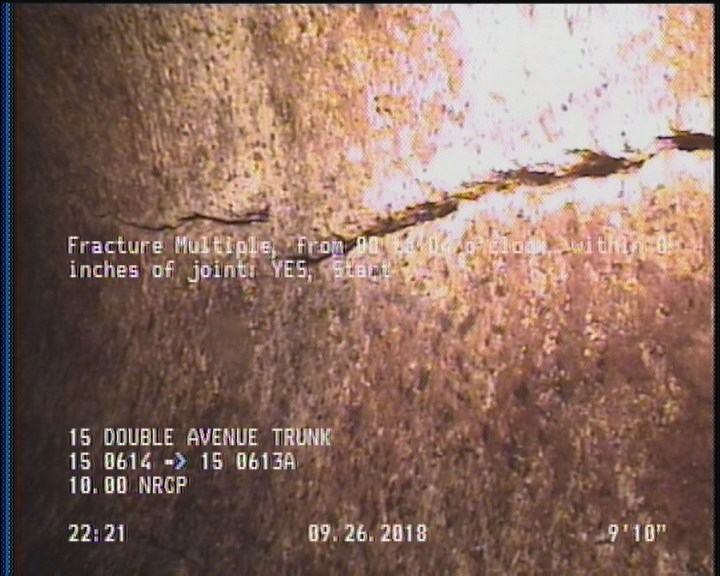

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    5.7 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

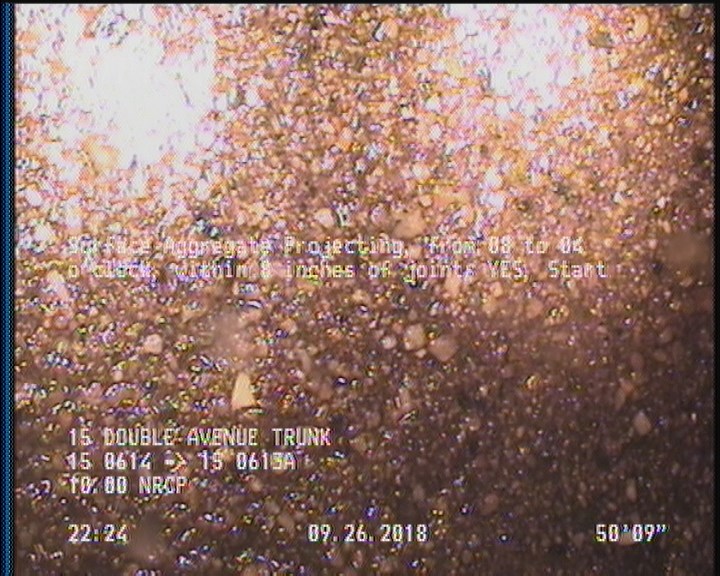

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    50.8 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P24099Work order 729689

Observations (21)

DistanceCodeObservation
0MWL—
0MWM—
50.8SAP—
227.1TF—
128.6TFA—
233.3MGOACTIVE CONNECTION AT MH 3 AND 9 O'CLOCK
224.4TF—
49.8TFA—
233.3AMH15 0613A
50.8SAV—
0AMH15 0614
231.6SAP—
231.6FM—
231.6DAGS—
149.7TF—
2DAGS—
17.3TFC—
5.7SAV—
102.1TB—
77.3TF—
5.7FM—

Properties (5)

additional_info
SC365110
custom_field_two
2
customer
LACSD
datetime
2018-09-26T22:16:12-07:00
is_lateral_inspection
false
