Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 11, 2019, 07:24 AM

  • E 0209_01 0053A_04112019_004549.mp4

Date
04/11/2019
W/O
761341
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00209
PipeID
P02146
Time
12:24 AM
Certificate
U-115-06022794
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5926
Sewer Name
01 HOOPER AVENUE-COMPTON CREEK TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
09
Purpose
Routine Assessment
Project
WO_761341_TV01254_APR2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0053A
Downstream MH
E 0209
Dir. of Survey
Upstream
Length Surveyed
159.9 ft.
Total Length
159.9 ft.
Structural Index
4
Structural Quick
4200
Structural Rating
8
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 01 0053A to E 0209
MH: 01 0053AMH: E 0209upstream0 ft. AMH - Upstream Manhole, Survey Ends - E 02091.6 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish89.1 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: YES, 6"90.9 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"140.2 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start140.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"141.5 ft. FM - Fracture Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES141.7 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: YES, 6"159.9 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK159.9 ft. MWL - Water Level, 5 %of cross sectional area159.9 ft. AMH - Downstream Manhole, Survey Begins - 01 0053A159.9 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK159.9 ft. MWM - Water Mark, 55 %of cross sectional area

Observation photos (4)

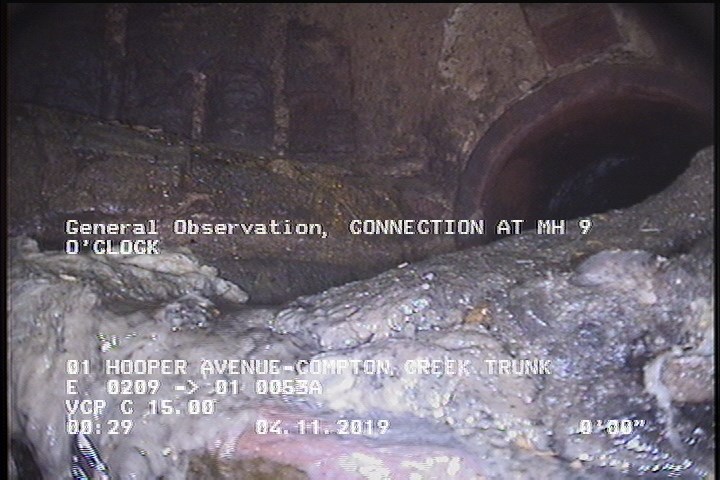

  • General Observation - CONNECTION AT MH 9 O'CLOCK

    0 ft. - General Observation - CONNECTION AT MH 9 O'CLOCK

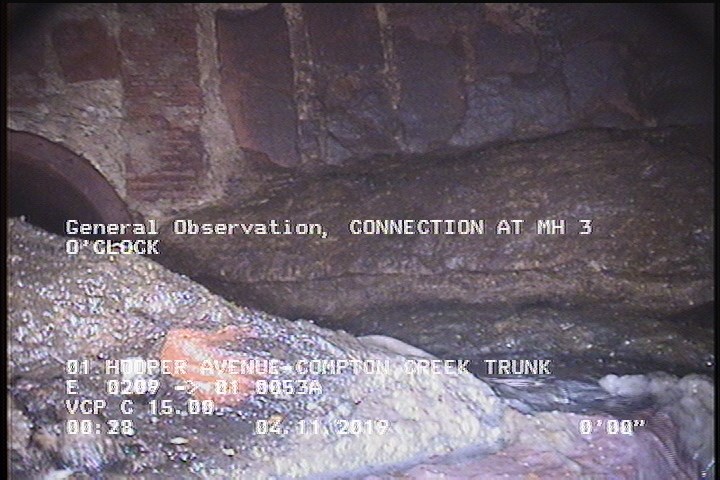

  • General Observation - CONNECTION AT MH 3 O'CLOCK

    0 ft. - General Observation - CONNECTION AT MH 3 O'CLOCK

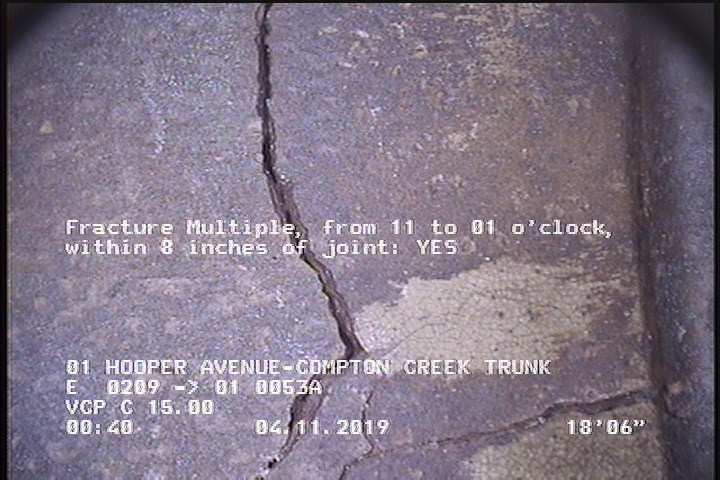

  • Fracture Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

    18.4 ft. - Fracture Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES

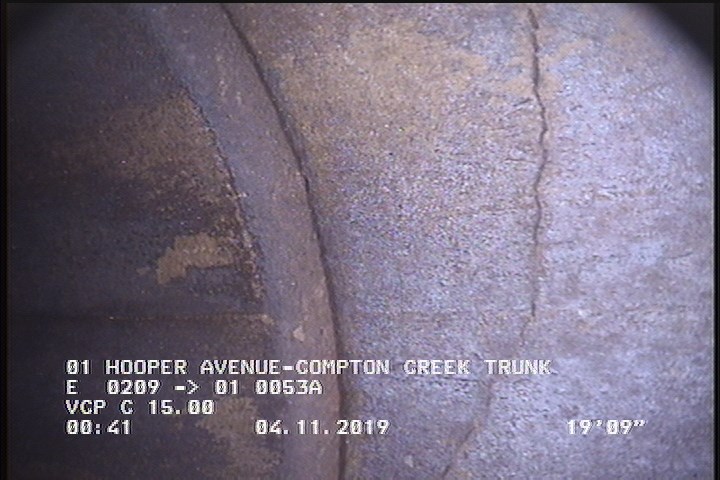

  • Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    19.7 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

All inspections of P02146Work order 761341

Observations (13)

DistanceCodeObservation
0MGOCONNECTION AT MH 9 O'CLOCK
0MWL—
19.7FM—
158.3FM—
19.6TFC—
159.9AMHE 0209
70.8TFC—
0AMH01 0053A
69TFC—
18.2TFC—
18.4FM—
0MGOCONNECTION AT MH 3 O'CLOCK
0MWM—

Properties (5)

custom_field_two
2
customer
LACSD
datetime
2019-04-11T00:24:22-07:00
documentation
PROPIPE
is_lateral_inspection
false
