Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 11, 2019, 08:43 AM

  • 01 0086_01 0085_04112019_020421.mp4

Date
04/11/2019
W/O
761341
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00209
PipeID
P00755
Time
1:43 AM
Certificate
U-115-06022794
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5926
Sewer Name
01 HOOPER AVENUE-COMPTON CREEK TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
06
Purpose
Routine Assessment
Project
WO_761341_TV01254_APR2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0086
Downstream MH
01 0085
Dir. of Survey
Downstream
Length Surveyed
358.6 ft.
Total Length
358.6 ft.
Structural Index
4
Structural Quick
4100
Structural Rating
4
O&M Index
2
O&M Quick
4124
O&M Rating
13
Overall Index
2
Overall Quick
—
Overall Rating
17
Pipe schematic from manhole 01 0086 to 01 0085
MH: 01 0086MH: 01 0085downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 01 00860 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK CAPPED0 ft. MWM - Water Mark, 50 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start69.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"124.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"176.5 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"202.3 ft. LD - Alignment Down, 10 %218.7 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6"222.3 ft. TBC - Tap Break-In Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"225.3 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 6"248.4 ft. TBC - Tap Break-In Capped, at 12 o'clock, -, within 8 inches of joint: YES, 6"279.8 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 6"293.3 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish302.8 ft. TBC - Tap Break-In Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"330.2 ft. TB - Tap Break-In, at 12 o'clock, -, within 8 inches of joint: YES, 6"356.2 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish358.6 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK CAPPED358.6 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK358.6 ft. AMH - Downstream Manhole, Survey Ends - 01 0085

Observation photos (5)

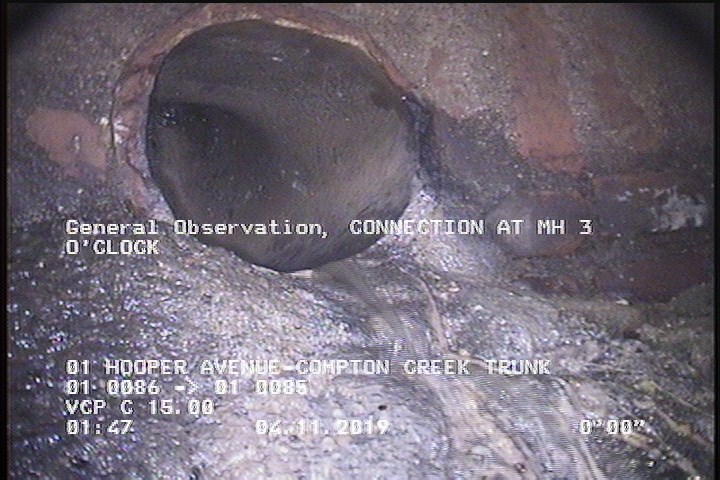

  • General Observation - CONNECTION AT MH 3 O'CLOCK

    0 ft. - General Observation - CONNECTION AT MH 3 O'CLOCK

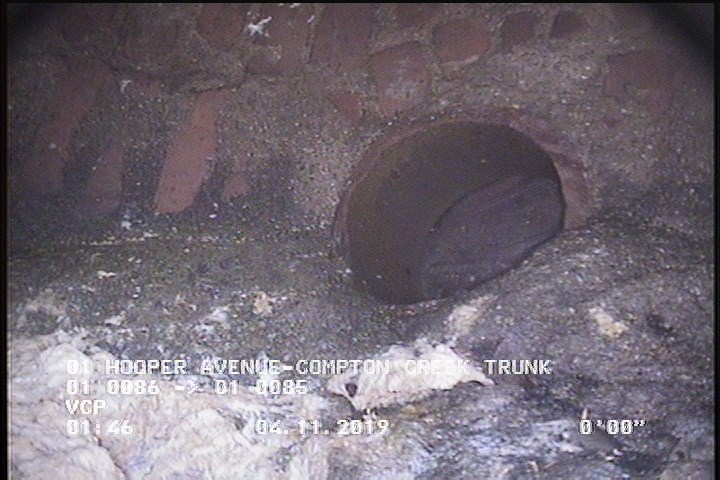

  • General Observation - CONNECTION AT MH 9 O'CLOCK CAPPED

    0 ft. - General Observation - CONNECTION AT MH 9 O'CLOCK CAPPED

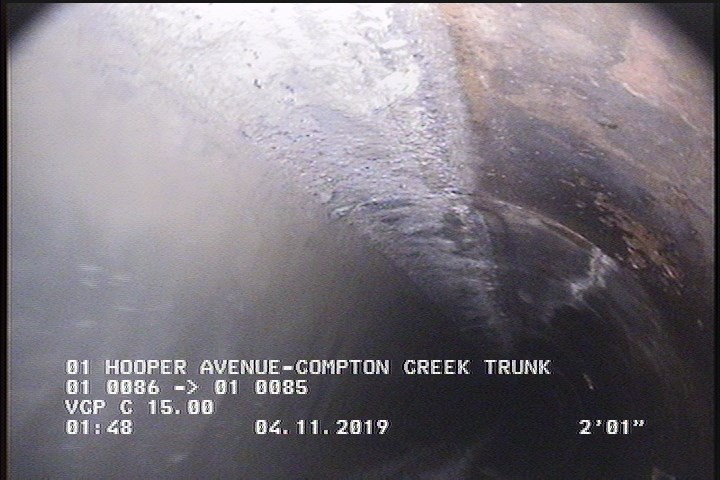

  • Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

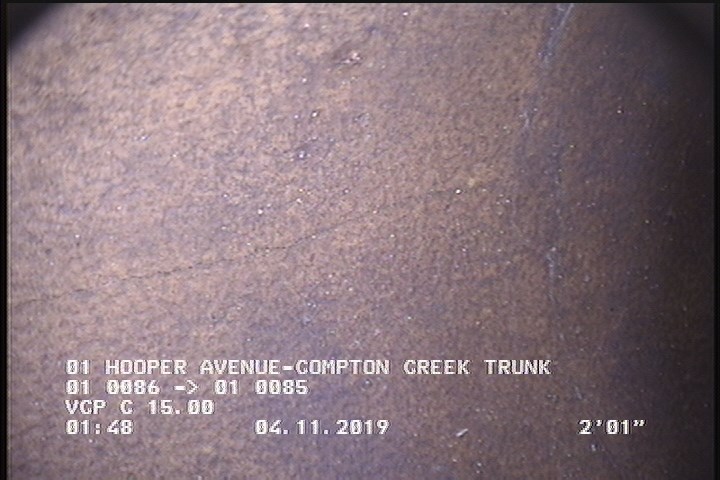

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

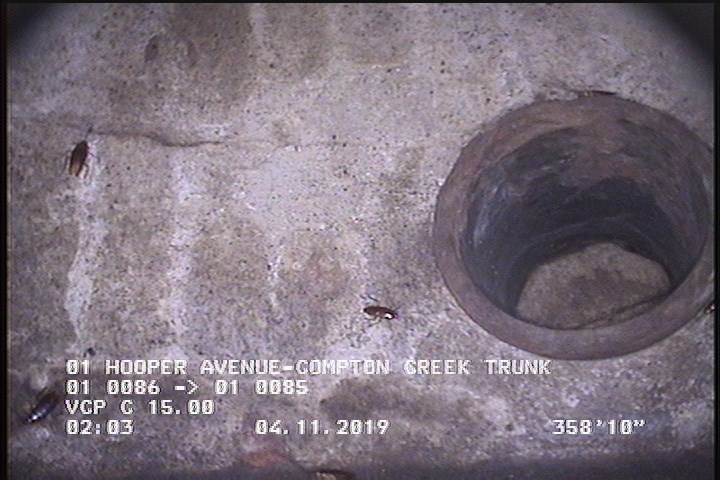

  • General Observation - CONNECTION AT MH 3 O'CLOCK CAPPED

    358.6 ft. - General Observation - CONNECTION AT MH 3 O'CLOCK CAPPED

All inspections of P00755Work order 761341

Observations (23)

DistanceCodeObservation
302.8TBC—
293.3FM—
248.4TBC—
358.6MGOCONNECTION AT MH 3 O'CLOCK CAPPED
0MWL—
2DAGS—
2FM—
330.2TB—
279.8TB—
0MGOCONNECTION AT MH 3 O'CLOCK
69.8TFC—
222.3TBC—
0AMH01 0086
358.6MGOCONNECTION AT MH 9 O'CLOCK
0MGOCONNECTION AT MH 9 O'CLOCK CAPPED
0MWM—
225.3TB—
124.8TF—
218.7TFC—
356.2DAGS—
202.3LD—
358.6AMH01 0085
176.5TF—

Properties (5)

custom_field_two
2
customer
LACSD
datetime
2019-04-11T01:43:52-07:00
documentation
PROPIPE
is_lateral_inspection
false
