Wastewater/Activity/PacpInspection/1.0Mar 13, 2019, 05:58 AM
03 0187_03 0186 _03122019_230914.mp4
- Date
- 03/12/2019
- W/O
- 756072
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00387
- PipeID
- P04786
- Time
- 10:58 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5825
- Sewer Name
- 03 NORTH LONG BEACH TRUNK
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 18
- Purpose
- Routine Assessment
- Project
- WO_756072_TV03028_MAR2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- 03 0187
- Downstream MH
- 03 0186
- Dir. of Survey
- Downstream
- Length Surveyed
- 414.5 ft.
- Total Length
- 414.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

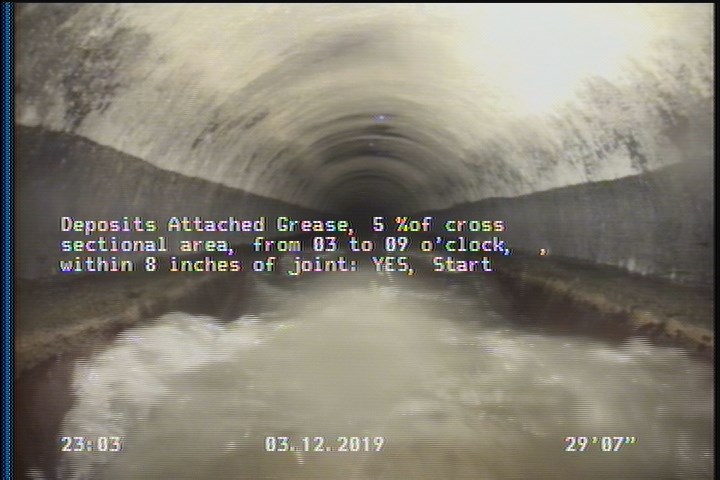

29.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 03 0187 |
| 5 | MGO | LINER |
| 0 | MWM | — |
| 0 | MWL | — |
| 412.7 | DAGS | — |
| 414.5 | AMH | 03 0186 |
| 29.6 | DAGS | — |
Properties (8)
- additional_info
- SC366055
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2019-03-12T22:58:59-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
- lining
- FR POLY LINE
- year_laid
- 36115
