Wastewater/Activity/PacpInspection/1.0Mar 12, 2019, 09:00 AM
03 0195_03 0194 _03122019_021439.mp4
- Date
- 03/12/2019
- W/O
- 756072
- Weather
- Light Rain
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00387
- PipeID
- P04795
- Time
- 2:00 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5824
- Sewer Name
- 03 NORTH LONG BEACH TRUNK
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_756072_TV03028_MAR2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- 03 0195
- Downstream MH
- 03 0194
- Dir. of Survey
- Downstream
- Length Surveyed
- 485.1 ft.
- Total Length
- 485.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 4122
- O&M Rating
- 8
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (1)

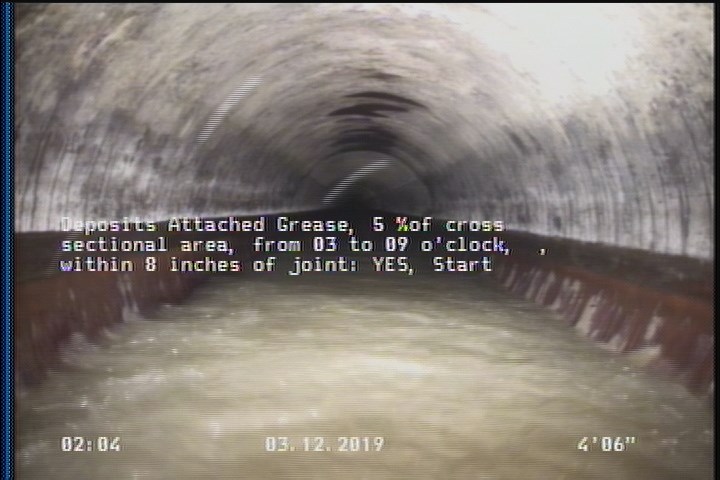

4.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 484 | DSC | — |
| 484 | DAGS | — |
| 421.2 | DSC | — |
| 4.5 | DAGS | — |
| 485.1 | AMH | 03 0194 |
| 0 | AMH | 03 0195 |
| 0 | MWM | — |
| 4.5 | MGO | LINER |
| 0 | MWL | — |
Properties (8)
- additional_info
- SC366054
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2019-03-12T02:00:04-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
- lining
- FR POLY LINE
- year_laid
- 36115
