Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Mar 12, 2019, 08:12 AM

  • 03 0196_03 0195 _03122019_012813.mp4

Date
03/12/2019
W/O
756072
Weather
Dry
Operator/Surveyor
J. BUENROSTRO
Sewer ID
Z00387
PipeID
P04796
Time
1:12 AM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5824
Sewer Name
03 NORTH LONG BEACH TRUNK
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
14
Purpose
Routine Assessment
Project
WO_756072_TV03028_MAR2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Width
30 in.
Upstream MH
03 0196
Downstream MH
03 0195
Dir. of Survey
Downstream
Length Surveyed
479.9 ft.
Total Length
479.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
4122
O&M Rating
8
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 03 0196 to 03 0195
MH: 03 0196MH: 03 0195downstream0 ft. AMH - Upstream Manhole, Survey Begins - 03 01960 ft. MWL - Water Level, 35 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area0.1 ft. MGO - General Observation - HANGING MH LINER2.9 ft. MGO - General Observation - LINER2.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start47.6 ft. DSC - Deposits Settled Compacted, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start479.9 ft. MGO - General Observation - SERVICE CONNECTION AT 3 O' CLOCK AT MH479.9 ft. DSC - Deposits Settled Compacted, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish479.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish479.9 ft. AMH - Downstream Manhole, Survey Ends - 03 0195

Observation photos (2)

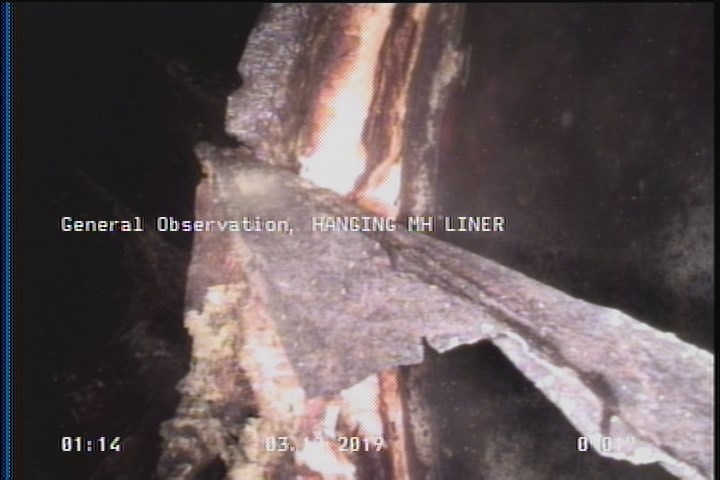

  • General Observation - HANGING MH LINER

    0.1 ft. - General Observation - HANGING MH LINER

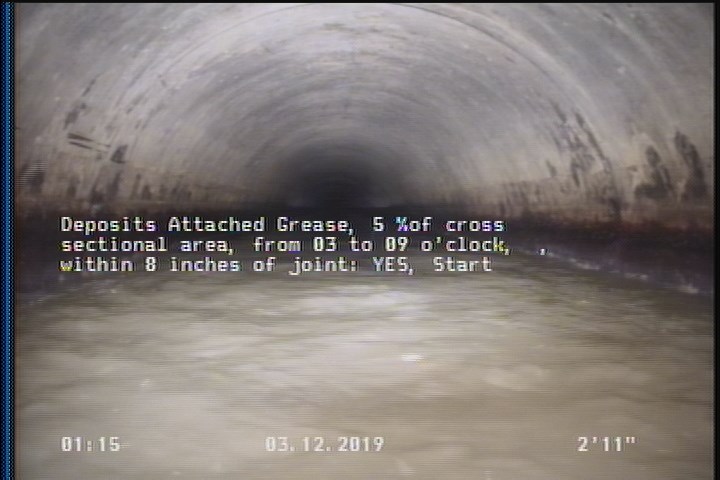

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

All inspections of P04796Work order 756072

Observations (11)

DistanceCodeObservation
479.9MGOSERVICE CONNECTION AT 3 O' CLOCK AT MH
0AMH03 0196
0MWL—
479.9DSC—
0.1MGOHANGING MH LINER
479.9DAGS—
47.6DSC—
479.9AMH03 0195
2.9MGOLINER
2.9DAGS—
0MWM—

Properties (8)

additional_info
SC366054
custom_field_two
4
customer
LACSD
datetime
2019-03-12T01:12:43-07:00
documentation
PROPIPE
is_lateral_inspection
false
lining
FR POLY LINE
year_laid
36115
