Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 12, 2019, 09:40 AM

  • 22 0301_22 0300 _02122019_020537.mp4

Date
02/12/2019
W/O
745403
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00794
PipeID
P16588
Time
1:40 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6391
Sewer Name
22 CAMERON TRUNK, SECTION 4
City
WEST COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
36
Purpose
Routine Assessment
Project
WO_745403_TV22008_JAN2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
22 0300
Downstream MH
22 0301
Dir. of Survey
Upstream
Length Surveyed
344.7 ft.
Total Length
344.7 ft.
Structural Index
3
Structural Quick
3M00
Structural Rating
204
O&M Index
2
O&M Quick
2M00
O&M Rating
136
Overall Index
3
Overall Quick
—
Overall Rating
340
Pipe schematic from manhole 22 0300 to 22 0301
MH: 22 0300MH: 22 0301upstream0 ft. AMH - Upstream Manhole, Survey Ends - 22 03010 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK1.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish1.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish5.3 ft. RPZ - Repair Other, within 8 inches of joint: YES - LINK PIPE75.8 ft. CM - Crack Multiple, from 08 to 02 o'clock, within 8 inches of joint: YES105 ft. RPZ - Repair Other, within 8 inches of joint: YES - LINK PIPE109.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"120.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"120.4 ft. RPZ - Repair Other, within 8 inches of joint: YES - LINK PIPE146.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"169.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"196.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"218.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"245.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"268.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"294.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"318.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"336.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"338.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start342.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start344.7 ft. MWM - Water Mark, 20 %of cross sectional area344.7 ft. AMH - Downstream Manhole, Survey Begins - 22 0300344.7 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (5)

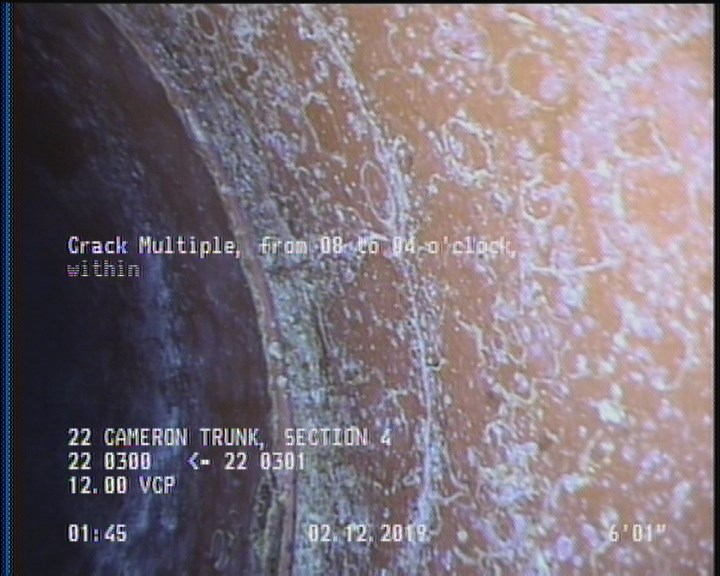

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

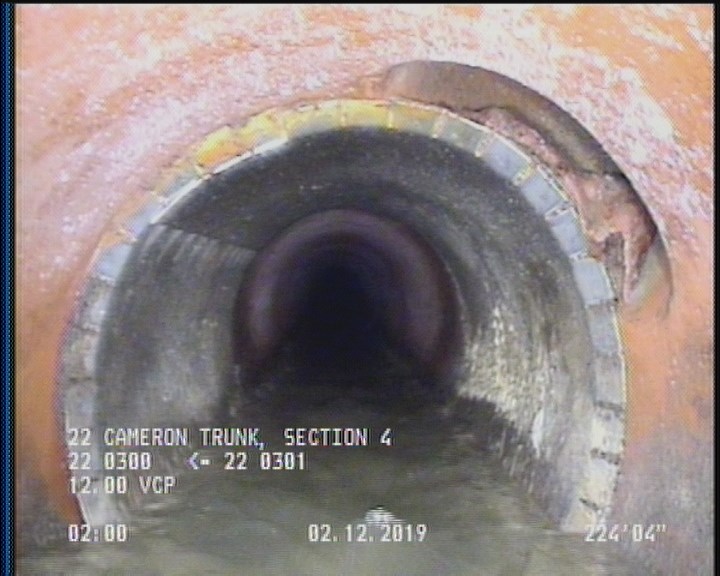

  • Repair Other, within 8 inches of joint: YES - LINK PIPE

    224.3 ft. - Repair Other, within 8 inches of joint: YES - LINK PIPE

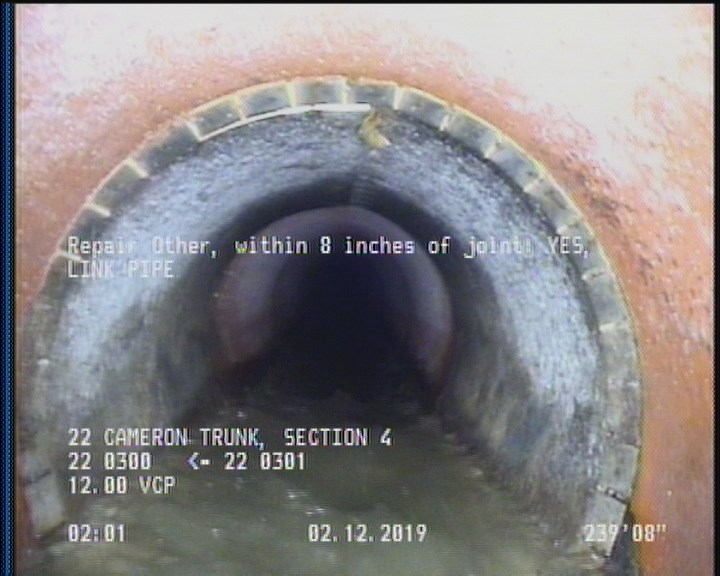

  • Repair Other, within 8 inches of joint: YES - LINK PIPE

    239.7 ft. - Repair Other, within 8 inches of joint: YES - LINK PIPE

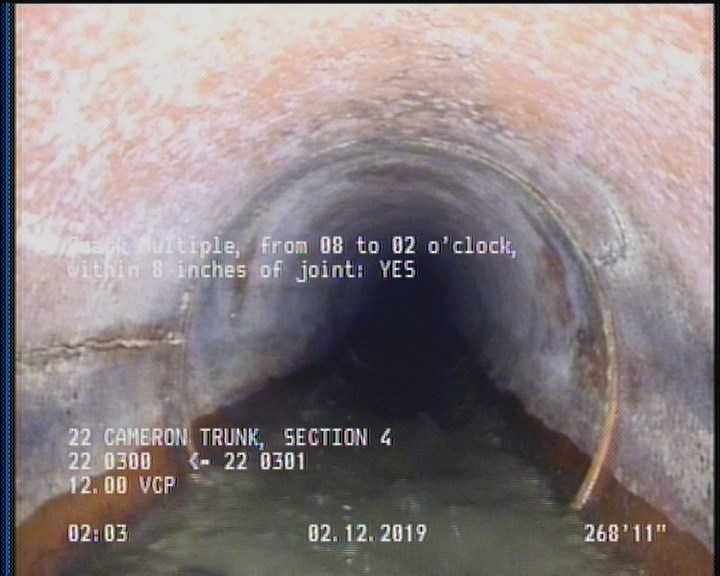

  • Crack Multiple, from 08 to 02 o'clock, within 8 inches of joint: YES

    268.9 ft. - Crack Multiple, from 08 to 02 o'clock, within 8 inches of joint: YES

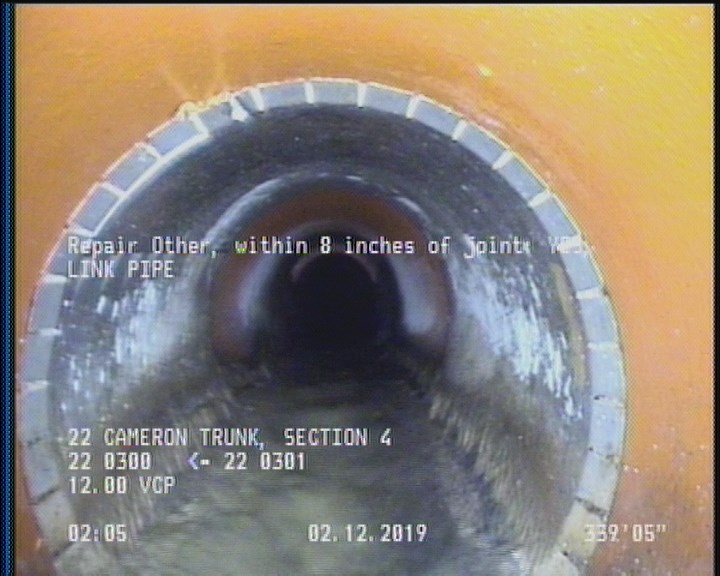

  • Repair Other, within 8 inches of joint: YES - LINK PIPE

    339.4 ft. - Repair Other, within 8 inches of joint: YES - LINK PIPE

All inspections of P16588Work order 745403

Observations (24)

DistanceCodeObservation
0MWM—
198.2TFA—
7.8TFC—
339.4RPZLINK PIPE
2DAGS—
148.6TFC—
224.3TFC—
268.9CM—
0AMH22 0300
235.6TFC—
224.3RPZLINK PIPE
0MWL—
344.7AMH22 0301
239.7RPZLINK PIPE
50TFC—
26.6TFC—
6CM—
76.6TFC—
342.9CM—
344.7MGOACTIVE CONNECTION AT MH 3 O'CLOCK
126.3TFC—
98.9TFC—
342.9DAGS—
175.2TFC—

Properties (6)

additional_info
SC365902
custom_field_two
3
customer
LACSD
datetime
2019-02-12T01:40:37-08:00
documentation
PRO PIPE
is_lateral_inspection
false
