Wastewater/Activity/PacpInspection/1.0Feb 12, 2019, 10:18 AM
22 1351_22 0268_02122019_022632.mp4
- Date
- 02/12/2019
- W/O
- 745403
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00794
- PipeID
- P16585
- Time
- 2:18 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6391
- Sewer Name
- 22 CAMERON TRUNK, SECTION 4
- City
- WEST COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- WO_745403_TV22008_JAN2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 22 1351
- Downstream MH
- 22 0268
- Dir. of Survey
- Downstream
- Length Surveyed
- 7.2 ft.
- Total Length
- 7.2 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (3)
0 ft. - General Observation - DATA STATES 12". UNABLE TO DETERMINE ACTUAL DIAMETER.

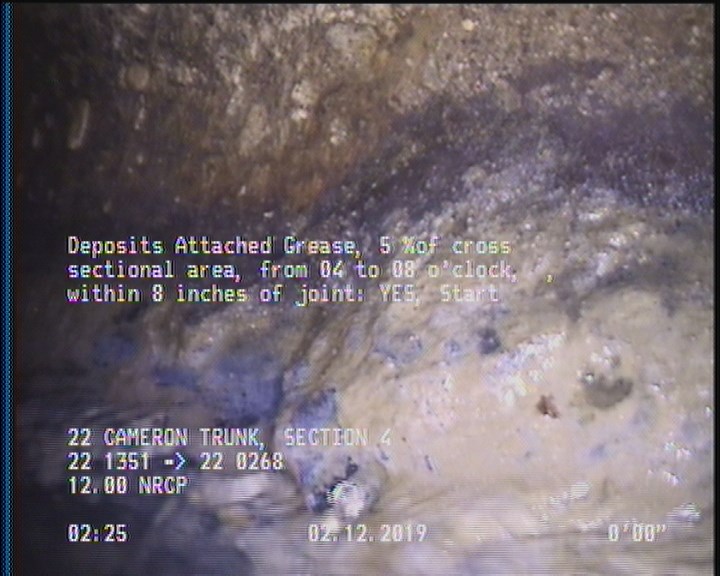

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

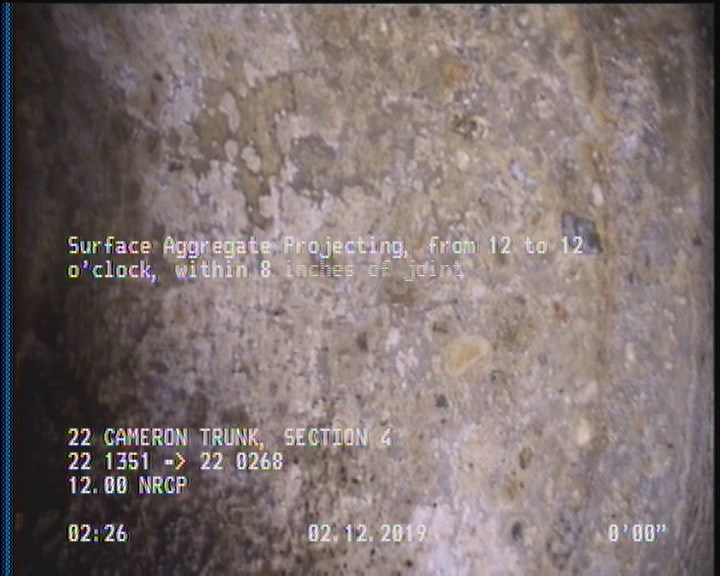

2 ft. - Surface Aggregate Projecting, from 12 to 12 o'clock, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 0 | MWM | — |
| 2 | SAP | — |
| 6.3 | DAGS | — |
| 0 | MGO | DATA STATES 12". UNABLE TO DETERMINE ACTUAL DIAMETER. |
| 0 | MWL | — |
| 7.2 | AMH | 22 0268 |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 7.2 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | AMH | 22 1351 |
Properties (6)
- additional_info
- SC365902
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-02-12T02:18:58-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
