Wastewater/Activity/PacpInspection/1.0Jan 8, 2019, 06:06 AM
B 1534_B 1533 _01072019_222451.mp4
- Date
- 01/07/2019
- W/O
- 740204
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01200
- PipeID
- P26344
- Time
- 10:06 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6293
- Sewer Name
- B JOINT OUTFALL B - UNIT 6J RELIEF
- City
- LA CANADA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- WO_740204_TV16116_DEC2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- B 1534
- Downstream MH
- B 1533
- Dir. of Survey
- Downstream
- Length Surveyed
- 243 ft.
- Total Length
- 243 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2P00
- O&M Rating
- 174
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 174
Observation photos (2)

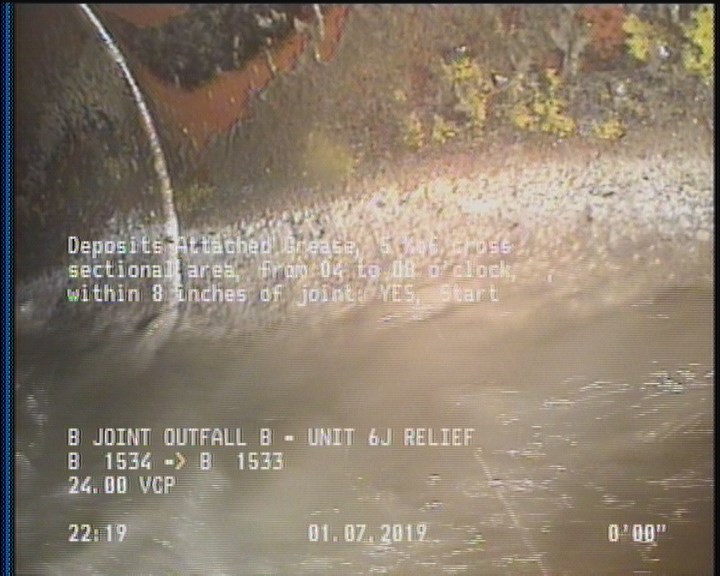

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

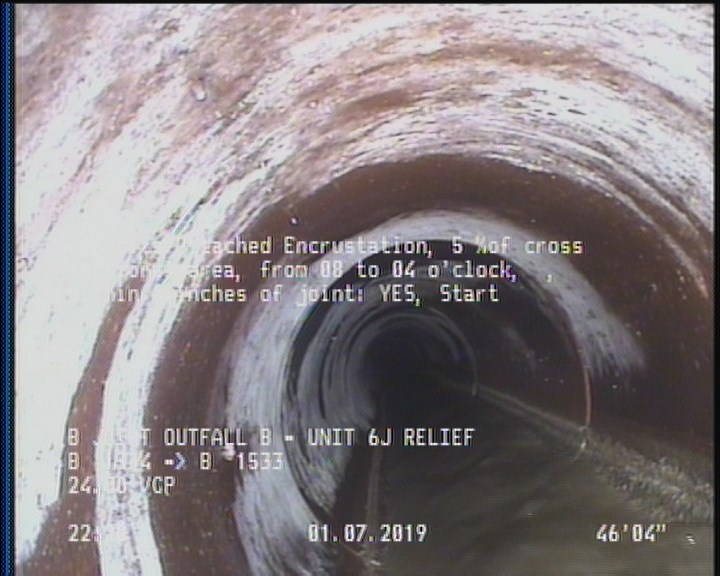

46.3 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | B 1534 |
| 46.3 | DAE | — |
| 241.1 | DAGS | — |
| 2 | DAGS | — |
| 0 | MWL | — |
| 241.1 | DAE | — |
| 0 | MWM | — |
| 243 | AMH | B 1533 |
Properties (7)
- additional_info
- SC365659
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-01-07T22:06:05-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 40603
