Wastewater/Activity/PacpInspection/1.0Apr 10, 2019, 05:45 AM
F 0174_F 0173 _04092019_233757.mp4
- Date
- 04/09/2019
- W/O
- 761821
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00044
- PipeID
- P10307
- Time
- 10:45 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5851
- Sewer Name
- F JOINT OUTFALL F - UNIT 7B
- City
- NORWALK
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 34
- Purpose
- Routine Assessment
- Project
- RFIR_WO_761821_TV18071_APR2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Width
- 48 in.
- Upstream MH
- F 0174
- Downstream MH
- F 0173
- Dir. of Survey
- Downstream
- Length Surveyed
- 509.6 ft.
- Total Length
- 509.6 ft.
- Structural Index
- 2
- Structural Quick
- 2111
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (3)

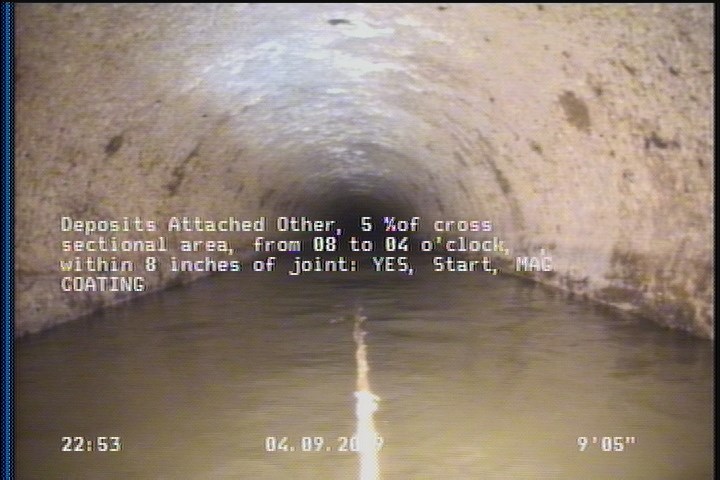

9.4 ft. - Deposits Attached Other, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start - MAG COATING

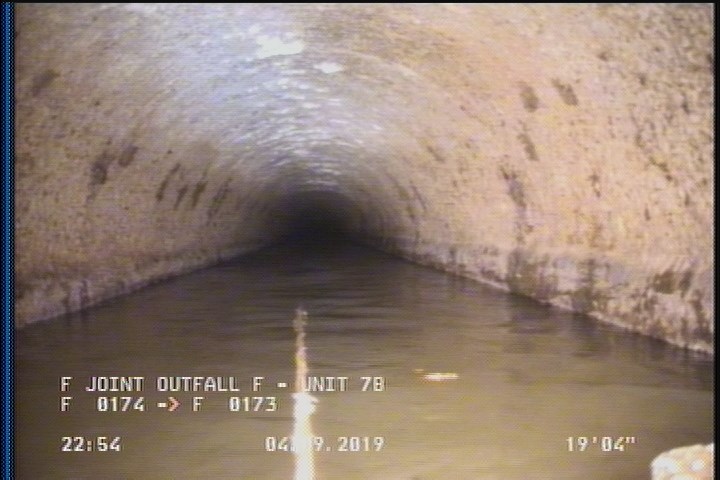

19.4 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

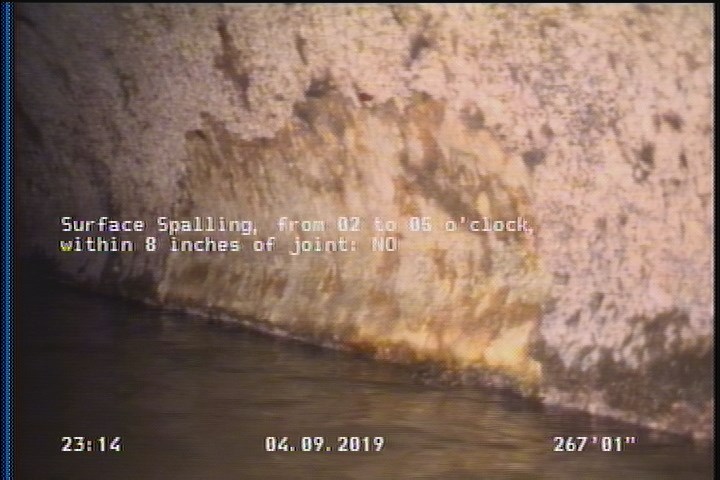

267.1 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 494.5 | TB | — |
| 19.4 | SRI | — |
| 267.1 | SSS | — |
| 0 | AMH | F 0174 |
| 0 | MWM | — |
| 0 | MGO | FLOW METER IN MH |
| 509.6 | AMH | F 0173 |
| 9.4 | DAZ | MAG COATING |
| 504.1 | SSS | — |
| 87.2 | TF | — |
| 504.1 | DAZ | — |
| 504.1 | SRI | — |
| 509.6 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 309.8 | TB | — |
Properties (6)
- additional_info
- SC366091
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-04-09T22:45:27-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
