Wastewater/Activity/PacpInspection/1.0May 1, 2019, 08:10 AM
21 1093_21 1092 _05012019_012306.mp4
- Date
- 05/01/2019
- W/O
- 761424
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00784
- PipeID
- P16153
- Time
- 1:10 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6518
- Sewer Name
- 21 SAN ANTONIO TRUNK
- City
- CLAREMONT
- Loc. details
- Sidewalk
- Location Code
- F
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- RFIR_WO_761424_TV21105_APR2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 21 1093
- Downstream MH
- 21 1092
- Dir. of Survey
- Downstream
- Length Surveyed
- 294 ft.
- Total Length
- 294 ft.
- Structural Index
- 3
- Structural Quick
- 3K00
- Structural Rating
- 174
- O&M Index
- 2
- O&M Quick
- 412K
- O&M Rating
- 120
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 294
Observation photos (2)

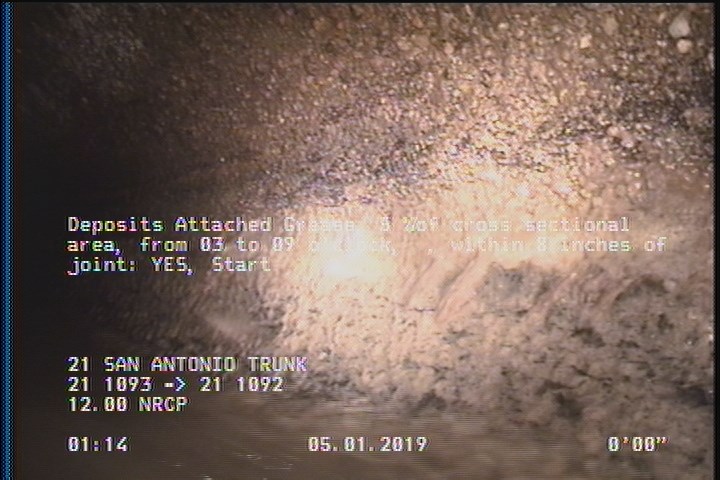

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

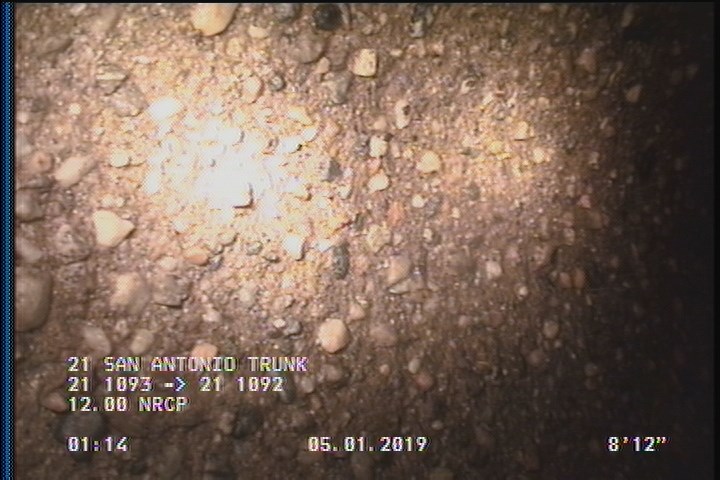

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 208.8 | TFC | — |
| 57.7 | TBA | — |
| 276.9 | TFA | — |
| 294 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 0 | MWM | — |
| 294 | AMH | 21 1092 |
| 291.5 | SAP | — |
| 0 | MWL | — |
| 108.9 | TFC | — |
| 2 | DAGS | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 AND 9 O'CLOCK |
| 160.6 | TFC | — |
| 291.5 | DAGS | — |
| 0 | AMH | 21 1093 |
| 182.6 | TBA | — |
| 2 | SAP | — |
Properties (6)
- additional_info
- SC366238
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-05-01T01:10:29-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
