Wastewater/Activity/PacpInspection/1.0Apr 26, 2019, 09:37 AM
22 0495_22 0494 _04262019_024931.mp4
- Date
- 04/26/2019
- W/O
- 761339
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00800
- PipeID
- P16834
- Time
- 2:37 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6511
- Sewer Name
- 22 COVINA CONNECTION EXTENSION TRUNK
- City
- COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 31
- Purpose
- Routine Assessment
- Project
- RFIR_WO_761339_TV22031_APR2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 22 0494
- Downstream MH
- 22 0495
- Dir. of Survey
- Upstream
- Length Surveyed
- 166.9 ft.
- Total Length
- 166.9 ft.
- Structural Index
- 3
- Structural Quick
- 3J00
- Structural Rating
- 159
- O&M Index
- 2
- O&M Quick
- 2E00
- O&M Rating
- 64
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 223
Observation photos (3)
2 ft. - Surface Aggregate Projecting, from 12 to 12 o'clock, within 8 inches of joint: YES, Start
2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

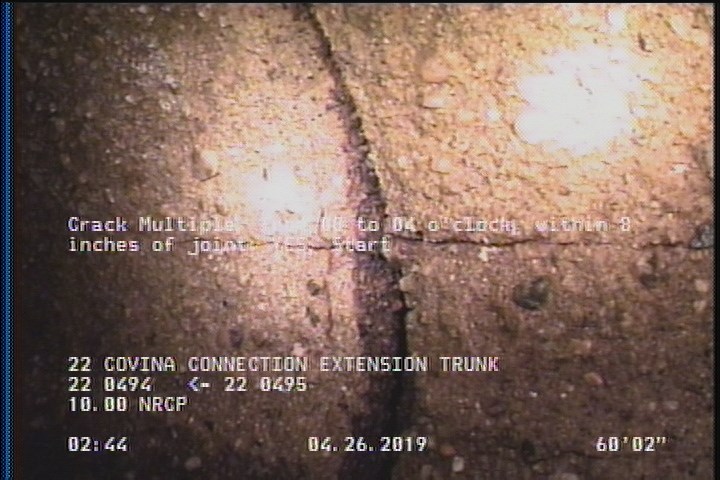

60.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 164.3 | DAGS | — |
| 0 | MWM | — |
| 60.2 | CM | — |
| 36.1 | TFC | — |
| 140.3 | TFC | — |
| 2 | SAP | — |
| 38.6 | TFC | — |
| 0 | AMH | 22 0494 |
| 166.9 | AMH | 22 0495 |
| 137 | TFC | — |
| 164.3 | CM | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 2 | DAGS | — |
| 86.8 | TFC | — |
| 89.5 | TFC | — |
| 164.3 | SAP | — |
Properties (6)
- additional_info
- SC366230
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-04-26T02:37:32-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
