Wastewater/Activity/PacpInspection/1.0Apr 18, 2019, 06:09 AM
21 0665_21 0664_04172019_235407.mp4
- Date
- 04/17/2019
- W/O
- 761295
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00766
- PipeID
- P21350
- Time
- 11:09 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6505
- Sewer Name
- 21 FIRST STREET TRUNK, SECTS 1&2
- City
- POMONA
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- RFIR_WO_761295_TV21117_APR2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 16 in.
- Width
- 16 in.
- Upstream MH
- 21 0664
- Downstream MH
- 21 0665
- Dir. of Survey
- Upstream
- Length Surveyed
- 964.4 ft.
- Total Length
- 964.4 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

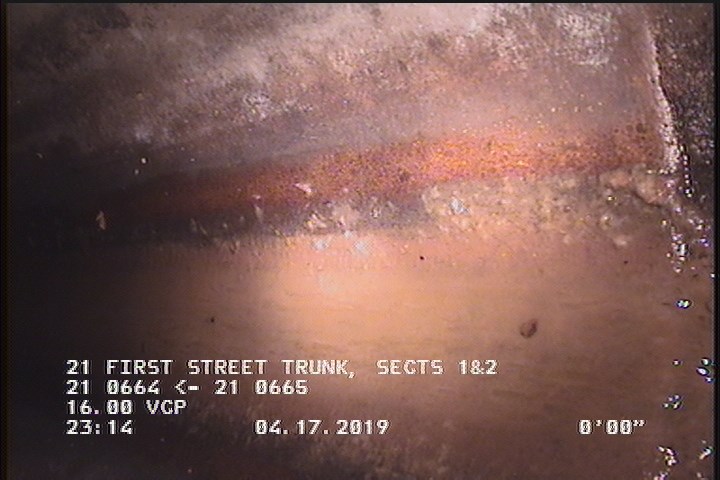

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

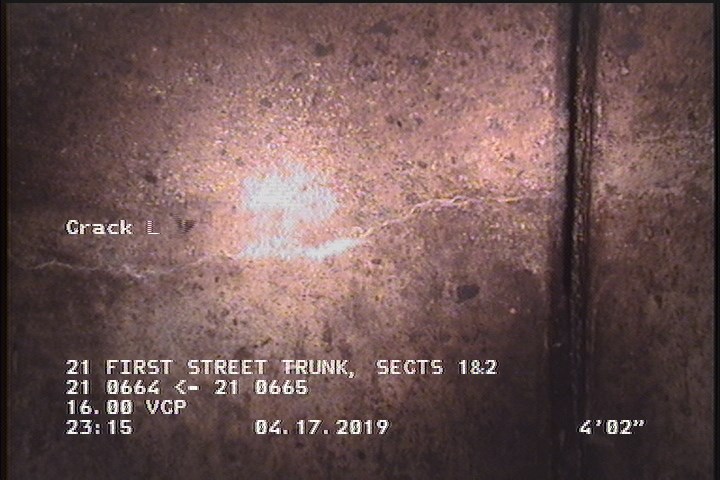

4.2 ft. - Crack Longitudinal, at 09 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 4.2 | CL | — |
| 243.5 | TFA | — |
| 964.4 | MSA | WILL COMPLETE FROM U/S MH. |
| 964.4 | DAGS | — |
| 412.1 | TB | — |
| 0 | AMH | 21 0664 |
| 2 | DAGS | — |
| 0 | MWL | — |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC366223
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2019-04-17T23:09:59-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
