Wastewater/Activity/PacpInspection/1.0Jan 25, 2019, 09:56 AM
18 0492_18 0491 _01252019_021749.mp4
- Date
- 01/25/2019
- W/O
- 745743
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z00691
- PipeID
- P14346
- Time
- 1:56 AM
- Certificate
- U-715-07000753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5348
- Sewer Name
- 18 NORTH PLANT OUTFALL TRUNK
- City
- WHITTIER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- RFIR_WO_745743_TV18091_JAN2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 16 in.
- Width
- 16 in.
- Upstream MH
- 18 0492
- Downstream MH
- 18 0491
- Dir. of Survey
- Downstream
- Length Surveyed
- 173.9 ft.
- Total Length
- 173.9 ft.
- Structural Index
- 5
- Structural Quick
- 5141
- Structural Rating
- 9
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (2)

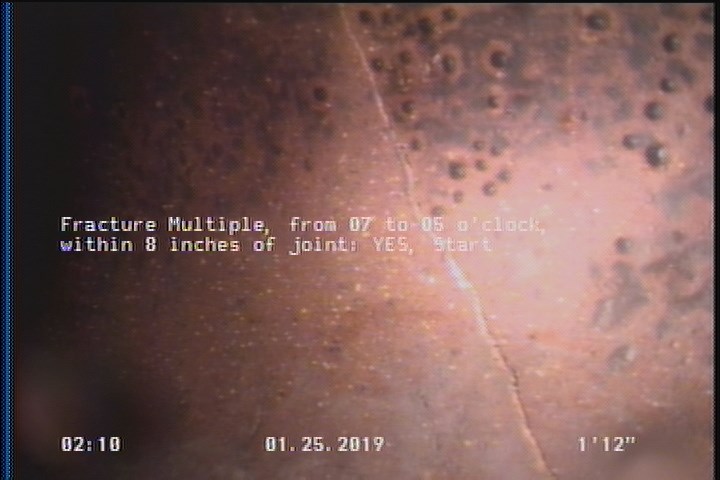

2 ft. - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

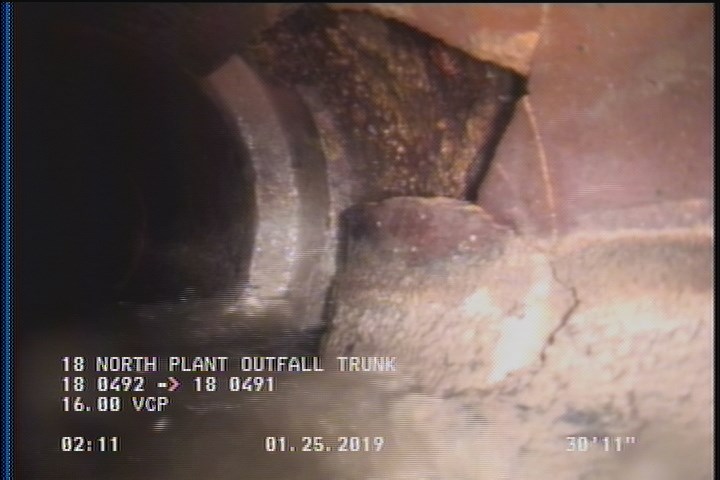

30.9 ft. - Broken, from 01 to 11 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 30.9 | B | — |
| 0 | MWL | — |
| 0 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 2 | FM | — |
| 0 | MWM | — |
| 0 | AMH | 18 0492 |
| 173.5 | FM | — |
| 173.9 | MGO | SERVICE CONNECTION AT 9 O'CLOCK AT MH |
| 173.9 | AMH | 18 0491 |
Properties (5)
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2019-01-25T01:56:39-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
