Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 14, 2019, 06:38 AM

  • 02 0431_02 0430 _02132019_225439.mp4

Date
02/13/2019
W/O
745529
Weather
Light Rain
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00312
PipeID
P02754
Time
10:38 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6395
Sewer Name
02 70TH WAY EXTENSION TRUNK
City
PARAMOUNT
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
35
Purpose
Routine Assessment
Project
RFIR_WO_745529_TV02338_JAN2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 0430
Downstream MH
02 0431
Dir. of Survey
Upstream
Length Surveyed
305.4 ft.
Total Length
305.4 ft.
Structural Index
3
Structural Quick
413J
Structural Rating
166
O&M Index
2
O&M Quick
412K
O&M Rating
124
Overall Index
3
Overall Quick
—
Overall Rating
290
Pipe schematic from manhole 02 0430 to 02 0431
MH: 02 0430MH: 02 0431upstream0 ft. AMH - Upstream Manhole, Survey Ends - 02 04313.3 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish3.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish10.6 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"60 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"72.9 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES113.1 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"161.9 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"208.2 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"261.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"273.3 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start303.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start305.4 ft. AMH - Downstream Manhole, Survey Begins - 02 0430305.4 ft. MWL - Water Level, 40 %of cross sectional area305.4 ft. MWM - Water Mark, 50 %of cross sectional area

Observation photos (3)

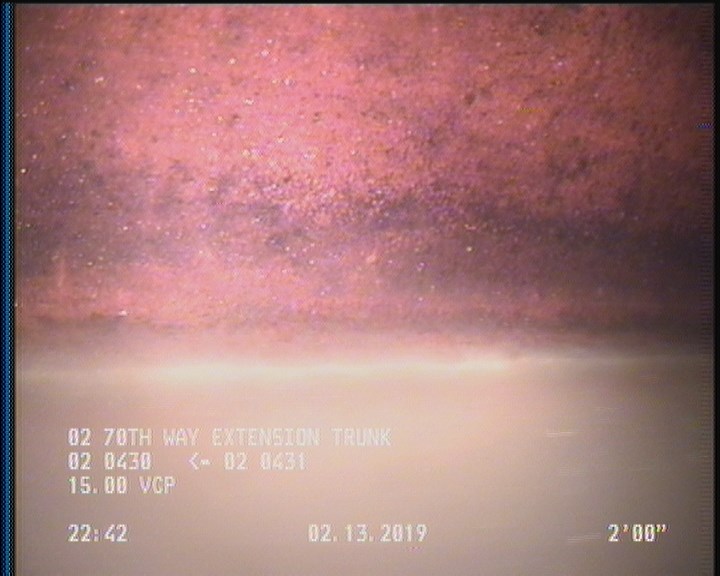

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

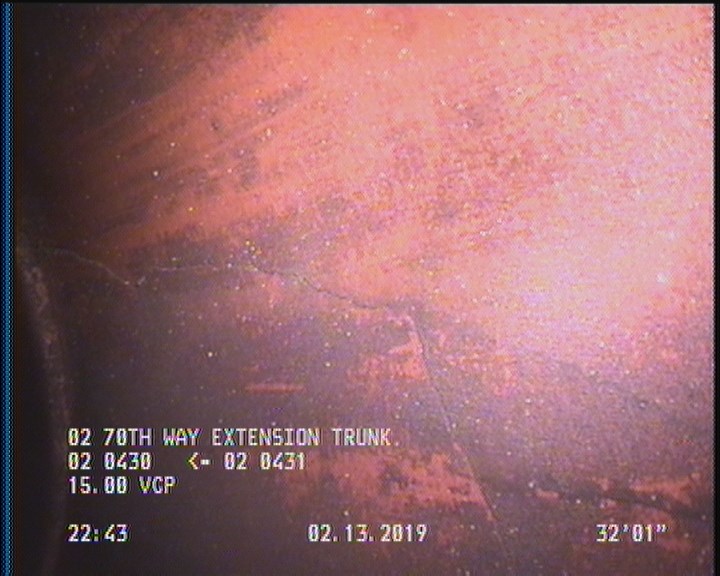

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    32.1 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

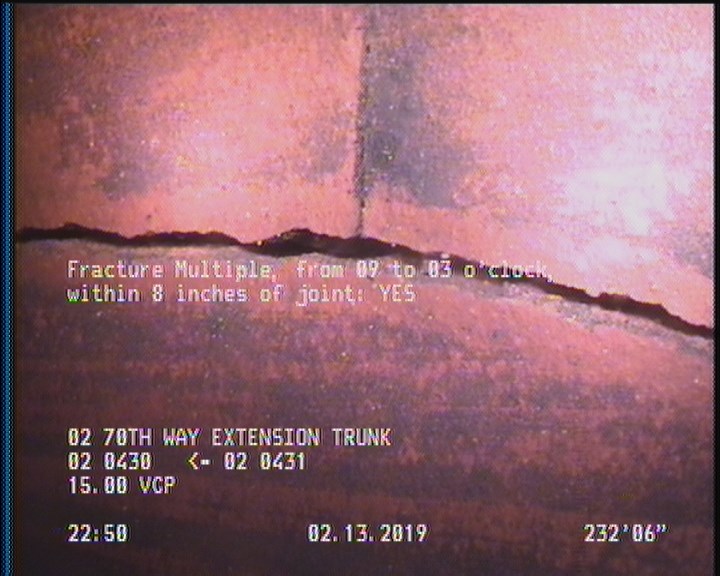

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    232.5 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

All inspections of P02754Work order 745529

Observations (15)

DistanceCodeObservation
302.1CM—
43.9TFC—
294.8TFC—
245.4TFC—
305.4AMH02 0431
0AMH02 0430
0MWL—
143.5TFA—
192.3TFC—
97.2TFC—
32.1CM—
2DAGS—
232.5FM—
302.1DAGS—
0MWM—

Properties (6)

additional_info
SC365906
custom_field_two
2
customer
LACSD
datetime
2019-02-13T22:38:41-08:00
documentation
PRO PIPE
is_lateral_inspection
false
