Wastewater/Activity/PacpInspection/1.0Feb 14, 2019, 05:36 AM
02 0429_02 0428 _02132019_215221.mp4
- Date
- 02/13/2019
- W/O
- 745529
- Weather
- Light Rain
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00312
- PipeID
- P02752
- Time
- 9:36 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6395
- Sewer Name
- 02 70TH WAY EXTENSION TRUNK
- City
- PARAMOUNT
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 35
- Purpose
- Routine Assessment
- Project
- RFIR_WO_745529_TV02338_JAN2019
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 0429
- Downstream MH
- 02 0428
- Dir. of Survey
- Downstream
- Length Surveyed
- 358.8 ft.
- Total Length
- 358.8 ft.
- Structural Index
- 3
- Structural Quick
- 3M00
- Structural Rating
- 210
- O&M Index
- 2
- O&M Quick
- 412M
- O&M Rating
- 146
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 356
Observation photos (4)

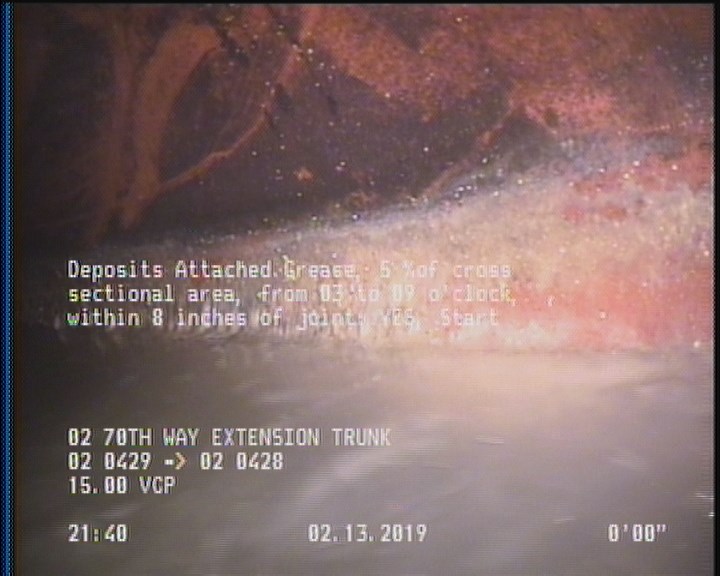

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

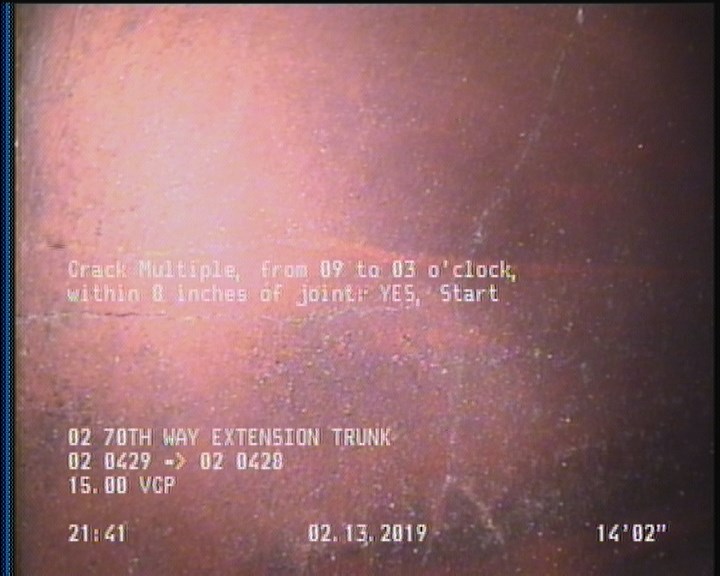

14.2 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

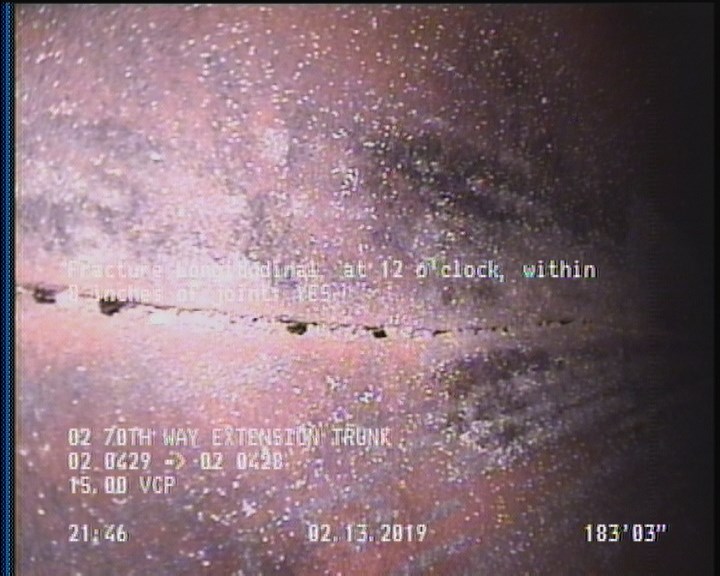

183.3 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

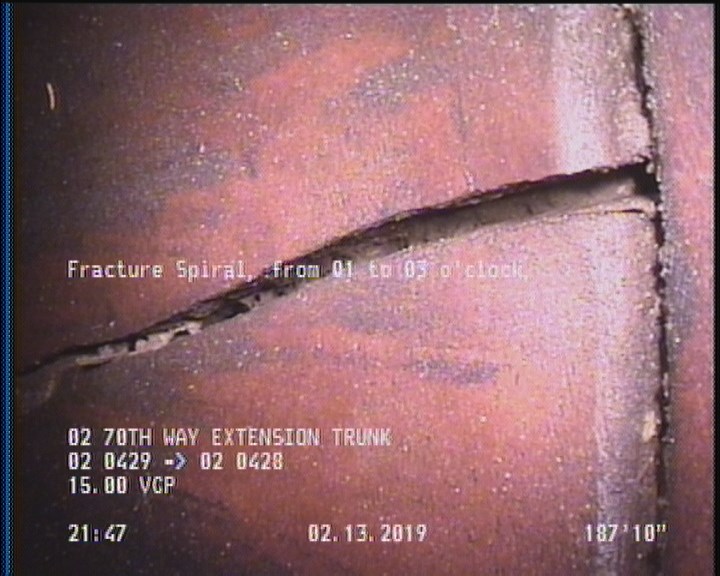

187.8 ft. - Fracture Spiral, from 01 to 03 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 187.8 | FS | — |
| 2 | DAGS | — |
| 14.2 | CM | — |
| 356.5 | CM | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 183.3 | FL | — |
| 0 | MWM | — |
| 356.5 | DAGS | — |
| 358.8 | AMH | 02 0428 |
| 0 | MWL | — |
| 0 | AMH | 02 0429 |
Properties (6)
- additional_info
- SC365906
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-02-13T21:36:13-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
