Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 23, 2019, 06:11 PM

  • 01 0723_01 0722_01242019_000101.mpg

Date
01/23/2019
W/O
745528
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00195
PipeID
P01433
Time
10:11 AM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5346
Sewer Name
01 BULLIS ROAD RELIEF TRUNK, SECTION 1
City
LYNWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
14
Purpose
Routine Assessment
Project
RFIR_WO_745528_TV01259_JAN2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
01 0723
Downstream MH
01 0722
Dir. of Survey
Downstream
Length Surveyed
333.9 ft.
Total Length
333.9 ft.
Structural Index
4
Structural Quick
4B00
Structural Rating
64
O&M Index
2
O&M Quick
412L
O&M Rating
134
Overall Index
2
Overall Quick
—
Overall Rating
198
Pipe schematic from manhole 01 0723 to 01 0722
MH: 01 0723MH: 01 0722downstream0 ft. MWL - Water Level, 35 %of cross sectional area0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 07236.7 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start6.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start74.1 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish176.3 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start191.8 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish333.6 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish333.9 ft. AMH - Downstream Manhole, Survey Ends - 01 0722

Observation photos (3)

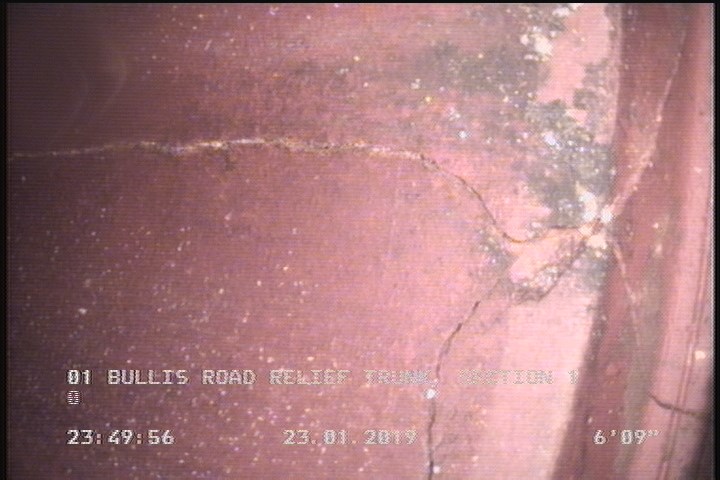

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    6.7 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

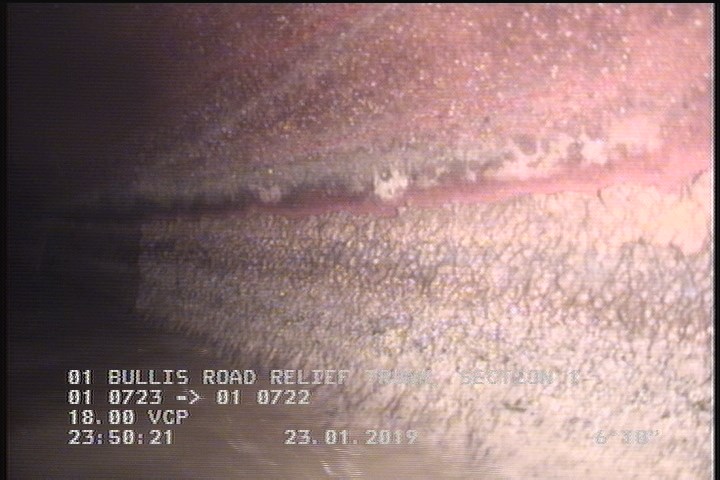

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    6.8 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

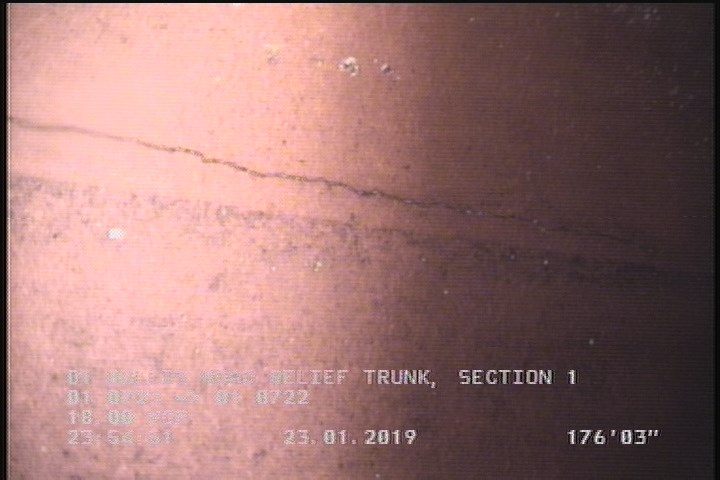

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    176.3 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P01433Work order 745528

Observations (10)

DistanceCodeObservation
0MWL—
0MWM—
176.3FM—
74.1FM—
333.9AMH01 0722
6.8DAGS—
333.6DAGS—
0AMH01 0723
6.7FM—
191.8FM—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-01-23T10:11:28-08:00
documentation
PROPIPE
is_lateral_inspection
false
