Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 24, 2019, 07:34 AM

  • 01 0724_01 0723_01232019_234752.mpg

Date
01/23/2019
W/O
745528
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00195
PipeID
P01434
Time
11:34 PM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5346
Sewer Name
01 BULLIS ROAD RELIEF TRUNK, SECTION 1
City
LYNWOOD
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
14
Purpose
Routine Assessment
Project
RFIR_WO_745528_TV01259_JAN2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
01 0724
Downstream MH
01 0723
Dir. of Survey
Downstream
Length Surveyed
330.4 ft.
Total Length
330.4 ft.
Structural Index
4
Structural Quick
4834
Structural Rating
44
O&M Index
2
O&M Quick
412L
O&M Rating
132
Overall Index
2
Overall Quick
—
Overall Rating
176
Pipe schematic from manhole 01 0724 to 01 0723
MH: 01 0724MH: 01 0723downstream0 ft. AMH - Upstream Manhole, Survey Begins - 01 07240 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 OCLOCK0 ft. MWL - Water Level, 35 %of cross sectional area5.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start242.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start261.4 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start261.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish303 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish327 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish330.4 ft. AMH - Downstream Manhole, Survey Ends - 01 0723

Observation photos (3)

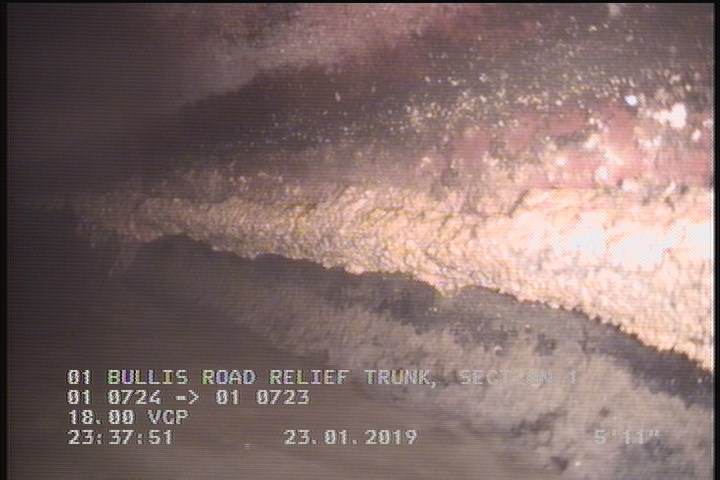

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    5.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

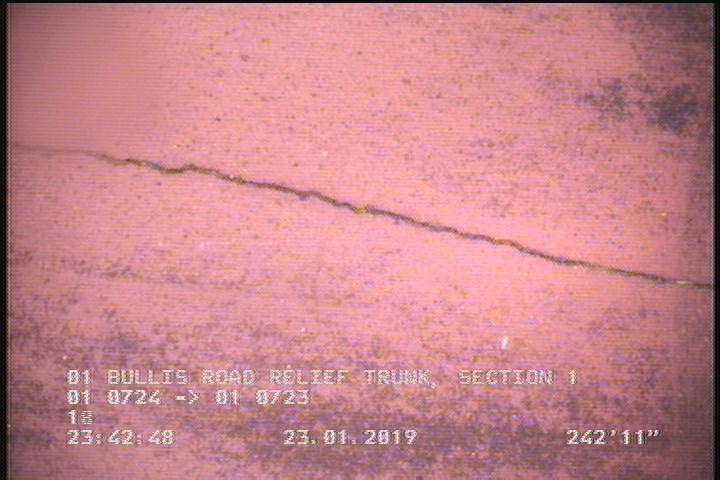

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

    242.9 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start

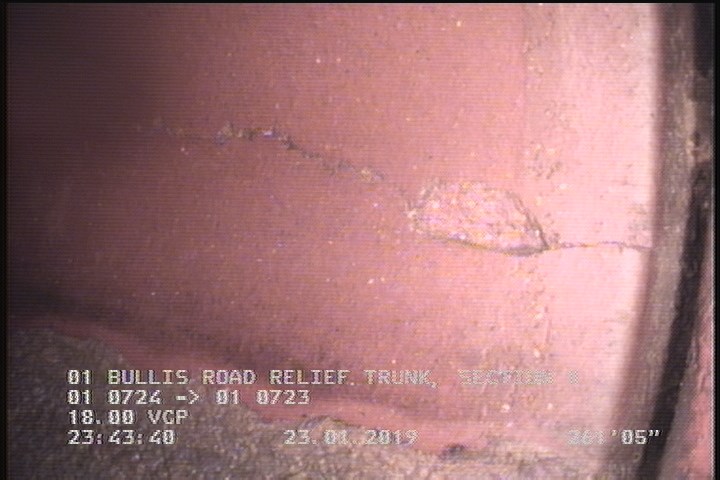

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    261.4 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P01434Work order 745528

Observations (11)

DistanceCodeObservation
261.4FM—
261.4FL—
0AMH01 0724
327DAGS—
330.4AMH01 0723
242.9FL—
0MWM—
0MGOCONNECTION AT MH 3 OCLOCK
5.9DAGS—
0MWL—
303FM—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-01-23T23:34:44-08:00
documentation
PROPIPE
is_lateral_inspection
false
