Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 25, 2019, 09:19 AM

  • 18 1190_18 0649 _01252019_013052.mp4

Date
01/25/2019
W/O
745346
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00687
PipeID
P15035
Time
1:19 AM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K5347
Sewer Name
18 LOWER SPRINGS ROAD TRUNK REPLACEMENT
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
14
Purpose
Routine Assessment
Project
RFIR_WO_745346_TV18109_JAN2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
18 1190
Downstream MH
18 0649
Dir. of Survey
Downstream
Length Surveyed
421.9 ft.
Total Length
421.9 ft.
Structural Index
4
Structural Quick
4100
Structural Rating
4
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 18 1190 to 18 0649
MH: 18 1190MH: 18 0649downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 11904.6 ft. FM - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start390.7 ft. LR - Alignment Right, 5 %416.7 ft. FM - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish416.7 ft. MMC - Material Change, Concrete pipe (non-reinfored)421.9 ft. AMH - Downstream Manhole, Survey Ends - 18 0649

Observation photos (2)

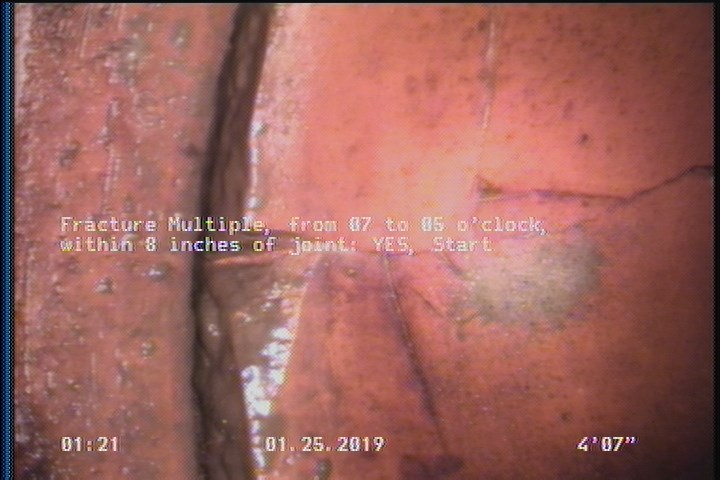

  • Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    4.6 ft. - Fracture Multiple, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

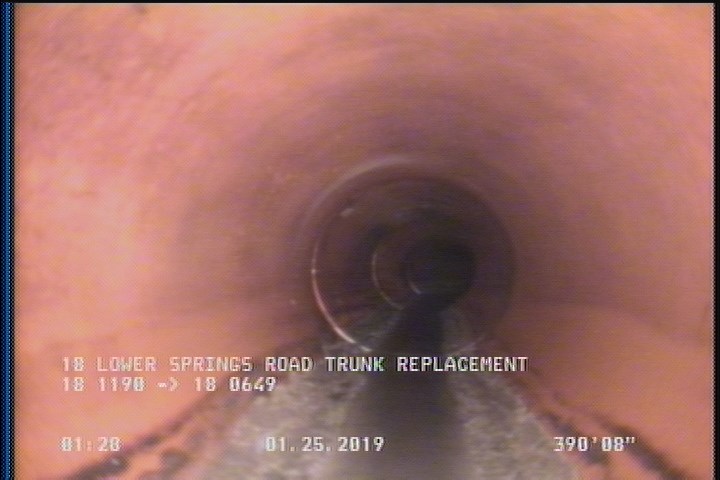

  • Alignment Right, 5 %

    390.7 ft. - Alignment Right, 5 %

All inspections of P15035Work order 745346

Observations (8)

DistanceCodeObservation
390.7LR—
416.7FM—
0MWL—
4.6FM—
0MWM—
421.9AMH18 0649
416.7MMC—
0AMH18 1190

Properties (6)

custom_field_two
3
customer
LACSD
datetime
2019-01-25T01:19:23-08:00
documentation
PROPIPE
is_lateral_inspection
false
year_laid
31671
