Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 21, 2018, 09:08 AM

  • 08 0199_08 0198 _21122018_010912.mp4

Date
12/21/2018
W/O
740635
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00010
PipeID
P00259
Time
1:08 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6254
Sewer Name
08 GRACE STREET TRUNK, SECTS 2&3
City
CARSON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
11
Purpose
Routine Assessment
Project
RFIR_WO_740635_TV08022_DEC2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
08 0199
Downstream MH
08 0198
Dir. of Survey
Downstream
Length Surveyed
188.2 ft.
Total Length
188.2 ft.
Structural Index
3
Structural Quick
3F00
Structural Rating
105
O&M Index
2
O&M Quick
3112
O&M Rating
5
Overall Index
3
Overall Quick
—
Overall Rating
110
Pipe schematic from manhole 08 0199 to 08 0198
MH: 08 0199MH: 08 0198downstream0 ft. AMH - Upstream Manhole, Survey Begins - 08 01990 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start31.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"97.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"104.7 ft. RFJ - Roots Fine Joint, from 08 to 09 o'clock, within 8 inches of joint: YES136.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"136.9 ft. RML - Roots Medium Lateral, at 02 o'clock, 20 %, within 8 inches of joint: NO139.9 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES183.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish188.2 ft. AMH - Downstream Manhole, Survey Ends - 08 0198188.2 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK

Observation photos (2)

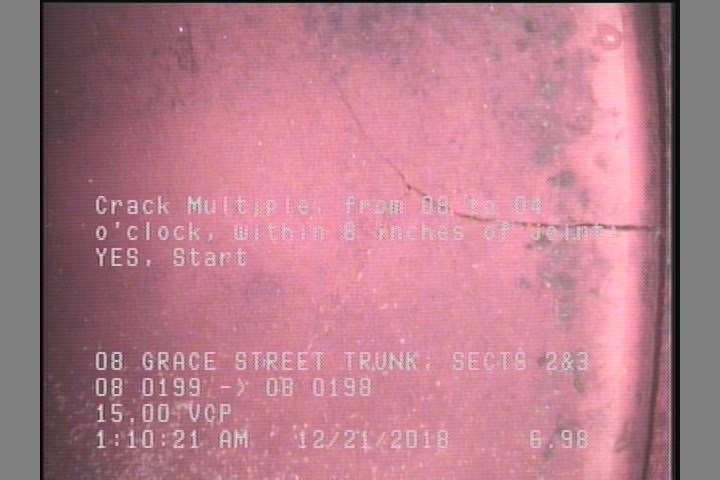

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

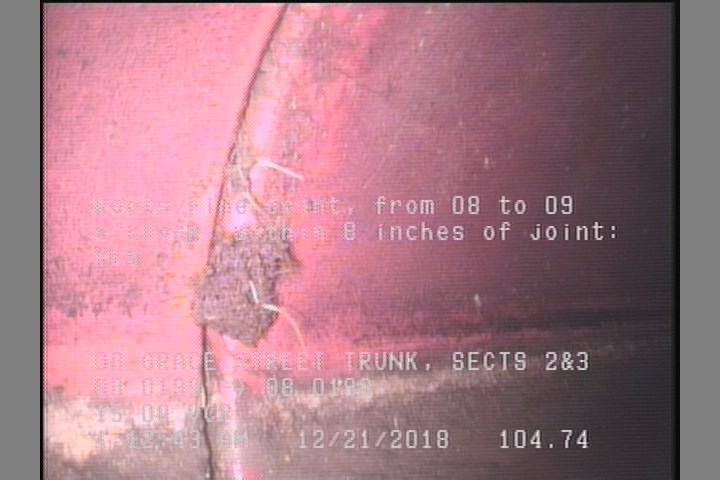

  • Roots Fine Joint, from 08 to 09 o'clock, within 8 inches of joint: YES

    104.7 ft. - Roots Fine Joint, from 08 to 09 o'clock, within 8 inches of joint: YES

All inspections of P00259Work order 740635

Observations (13)

DistanceCodeObservation
7CM—
136.9TF—
136.9RML—
31.2TFC—
0AMH08 0199
188.2AMH08 0198
0MWM—
0MWL—
188.2MGOCONNECTION AT MH 3 O'CLOCK
97.1TF—
104.7RFJ—
139.9RFJ—
183.9CM—

Properties (6)

additional_info
SC365487
custom_field_two
3
customer
LACSD
datetime
2018-12-21T01:08:54-08:00
documentation
PROPIPE
is_lateral_inspection
false
