Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 21, 2018, 06:54 AM

  • 08 0210_08 0209 _20122018_225429.mp4

Date
12/20/2018
W/O
740635
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00010
PipeID
P00270
Time
10:54 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6254
Sewer Name
08 GRACE STREET TRUNK, SECTS 2&3
City
CARSON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
11
Purpose
Routine Assessment
Project
RFIR_WO_740635_TV08022_DEC2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
08 0209
Downstream MH
08 0210
Dir. of Survey
Upstream
Length Surveyed
314 ft.
Total Length
314 ft.
Structural Index
3
Structural Quick
423K
Structural Rating
194
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
194
Pipe schematic from manhole 08 0209 to 08 0210
MH: 08 0209MH: 08 0210upstream0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0 ft. MGO - General Observation - CONNECTION AT MH 12 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Ends - 08 021046 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"68.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"87.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"126.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"129.5 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"143.8 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES169.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"176 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"206.2 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES210.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"217.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"252.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"279.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"298.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"307.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start314 ft. MWM - Water Mark, 15 %of cross sectional area314 ft. AMH - Downstream Manhole, Survey Begins - 08 0209314 ft. MWL - Water Level, 10 %of cross sectional area

Observation photos (4)

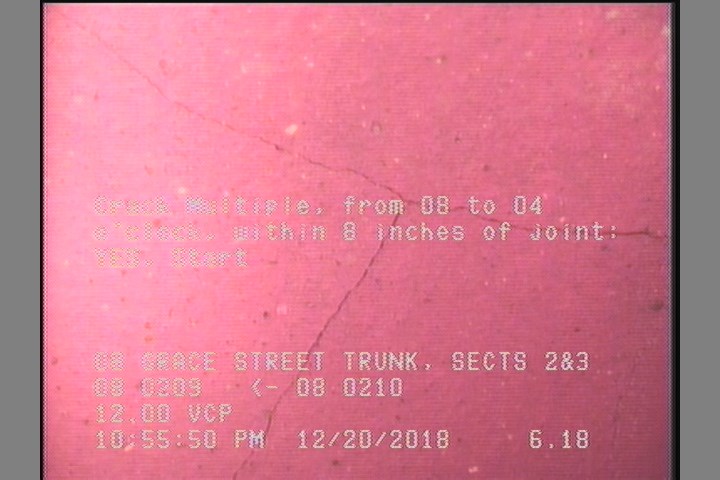

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    6.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

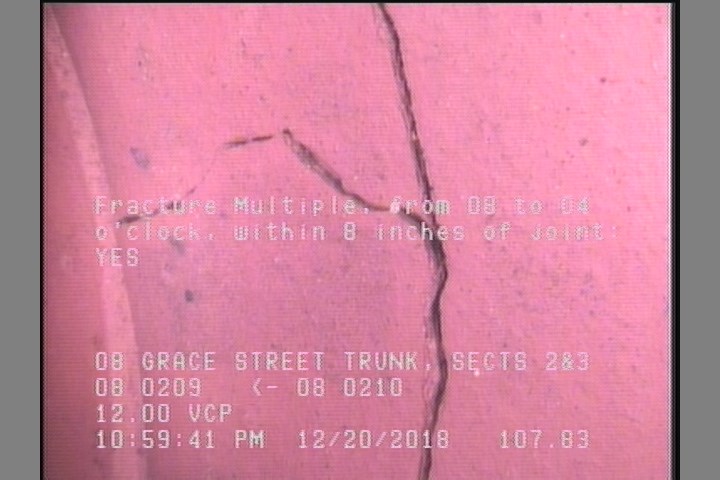

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    107.8 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

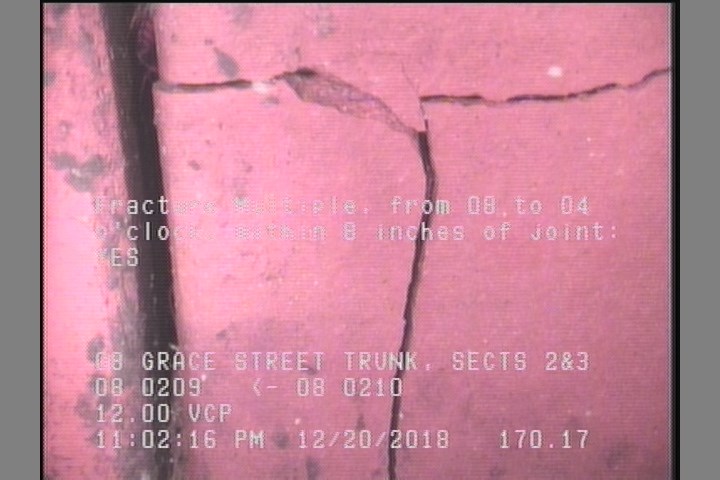

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    170.2 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

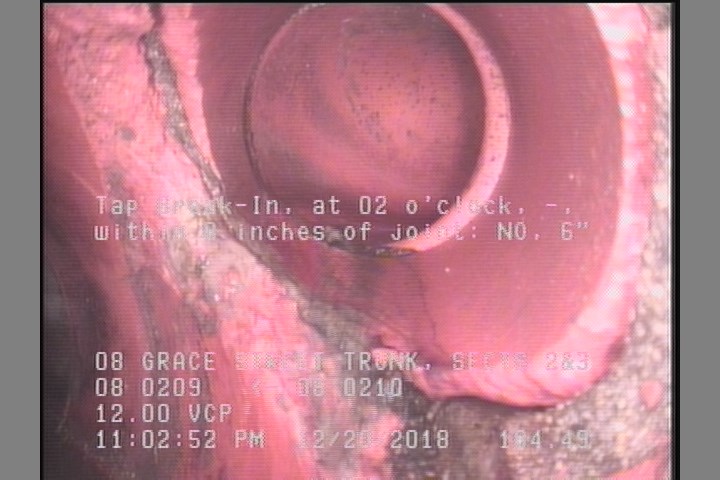

  • Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"

    184.5 ft. - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"

All inspections of P00270Work order 740635

Observations (23)

DistanceCodeObservation
314MGOCONNECTION AT MH 3 O'CLOCK
268TFC—
107.8FM—
0MWM—
226.5TFC—
6.2CM—
314MGOCONNECTION AT MH 9 O'CLOCK
170.2FM—
61.7TF—
314CM—
138TFC—
245.1TFC—
34.8TFC—
314MGOCONNECTION AT MH 12 O'CLOCK
314AMH08 0210
0AMH08 0209
96.7TFC—
15.9TFC—
0MWL—
184.5TB—
103.1TFC—
187.5TFC—
144.6TFC—

Properties (6)

additional_info
SC365487
custom_field_two
3
customer
LACSD
datetime
2018-12-20T22:54:22-08:00
documentation
PROPIPE
is_lateral_inspection
false
