Wastewater/Activity/PacpInspection/1.0Dec 21, 2018, 10:47 AM
08 0193A_08 0193 _21122018_024740.mp4
- Date
- 12/21/2018
- W/O
- 740635
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00010
- PipeID
- P00254
- Time
- 2:47 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6254
- Sewer Name
- 08 GRACE STREET TRUNK, SECTS 2&3
- City
- CARSON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- RFIR_WO_740635_TV08022_DEC2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 08 0193A
- Downstream MH
- 08 0193
- Dir. of Survey
- Downstream
- Length Surveyed
- 99.6 ft.
- Total Length
- 99.6 ft.
- Structural Index
- 3
- Structural Quick
- 3C00
- Structural Rating
- 57
- O&M Index
- 1
- O&M Quick
- 1200
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 59
Observation photos (2)

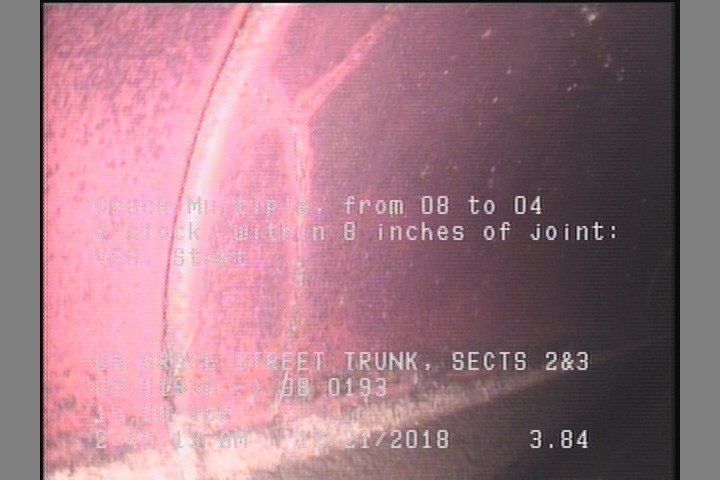

3.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

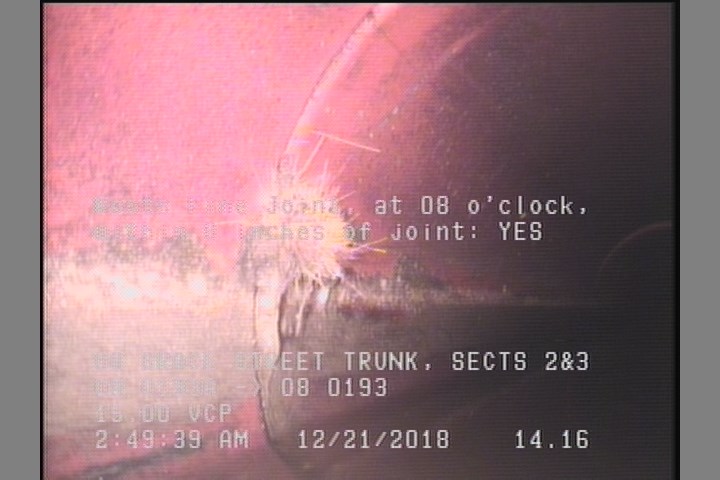

14.2 ft. - Roots Fine Joint, at 08 o'clock, within 8 inches of joint: YES
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 99.6 | AMH | 08 0193 |
| 99.6 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 89.2 | RFJ | — |
| 99.6 | CM | — |
| 93.1 | TF | — |
| 0 | AMH | 08 0193A |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | MWL | — |
| 21.1 | TF | — |
| 31.7 | TF | — |
| 0 | MWM | — |
| 3.8 | CM | — |
| 14.2 | RFJ | — |
Properties (6)
- additional_info
- SC365487
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-12-21T02:47:33-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
