Wastewater/Activity/PacpInspection/1.0Dec 21, 2018, 07:54 AM
08 0202_08 0201 _20122018_235456.mp4
- Date
- 12/20/2018
- W/O
- 740635
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00010
- PipeID
- P00262
- Time
- 11:54 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6254
- Sewer Name
- 08 GRACE STREET TRUNK, SECTS 2&3
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- RFIR_WO_740635_TV08022_DEC2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 08 0202
- Downstream MH
- 08 0201
- Dir. of Survey
- Downstream
- Length Surveyed
- 278.9 ft.
- Total Length
- 278.9 ft.
- Structural Index
- 3
- Structural Quick
- 3J00
- Structural Rating
- 165
- O&M Index
- 2
- O&M Quick
- 2B00
- O&M Rating
- 32
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 197
Observation photos (3)

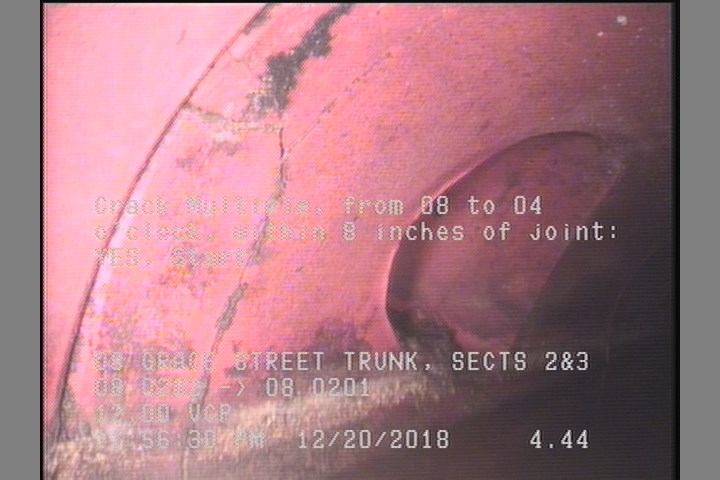

4.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

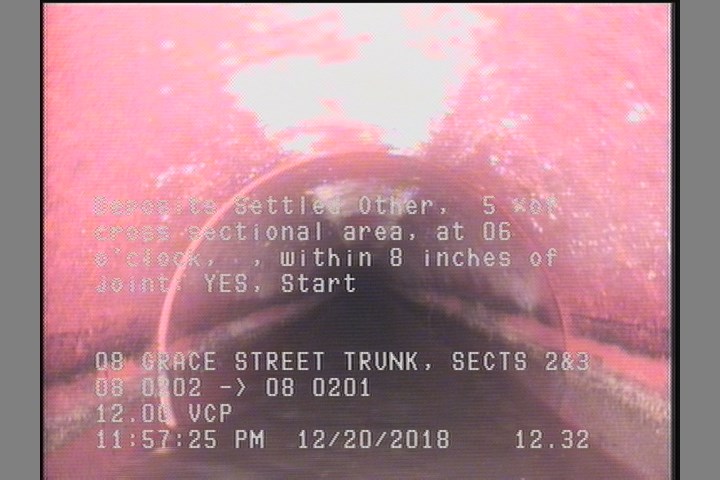

12.3 ft. - Deposits Settled Other, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

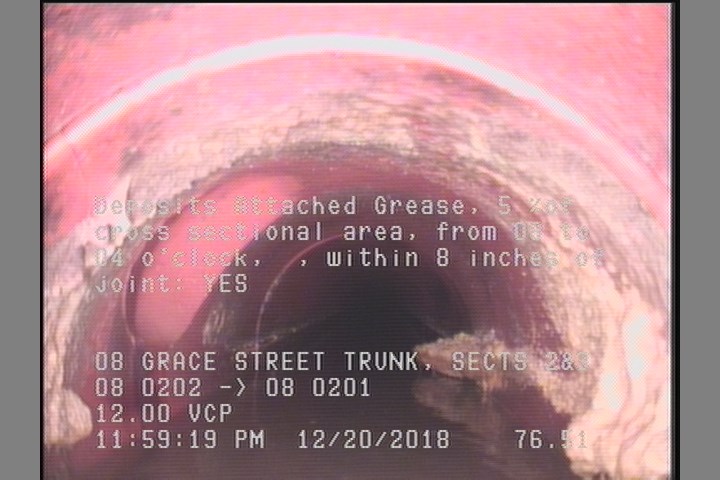

76.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 87 | DSZ | — |
| 0 | AMH | 08 0202 |
| 5.9 | TF | — |
| 4.4 | CM | — |
| 278.9 | CM | — |
| 0 | MWL | — |
| 76.5 | DAGS | — |
| 278.9 | AMH | 08 0201 |
| 137.3 | TF | — |
| 78.5 | TF | — |
| 278.9 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | MWM | — |
| 184.2 | TFA | — |
| 12.3 | DSZ | — |
Properties (6)
- additional_info
- SC365487
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-12-20T23:54:49-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
