Wastewater/Activity/PacpInspection/1.0Dec 21, 2018, 06:28 AM
08 0205A_08 0205 _20122018_222909.mp4
- Date
- 12/20/2018
- W/O
- 740635
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00010
- PipeID
- P00266
- Time
- 10:28 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6254
- Sewer Name
- 08 GRACE STREET TRUNK, SECTS 2&3
- City
- CARSON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- RFIR_WO_740635_TV08022_DEC2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 08 0205A
- Downstream MH
- 08 0205
- Dir. of Survey
- Downstream
- Length Surveyed
- 132.6 ft.
- Total Length
- 132.6 ft.
- Structural Index
- 3
- Structural Quick
- 3D00
- Structural Rating
- 78
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 78
Observation photos (2)

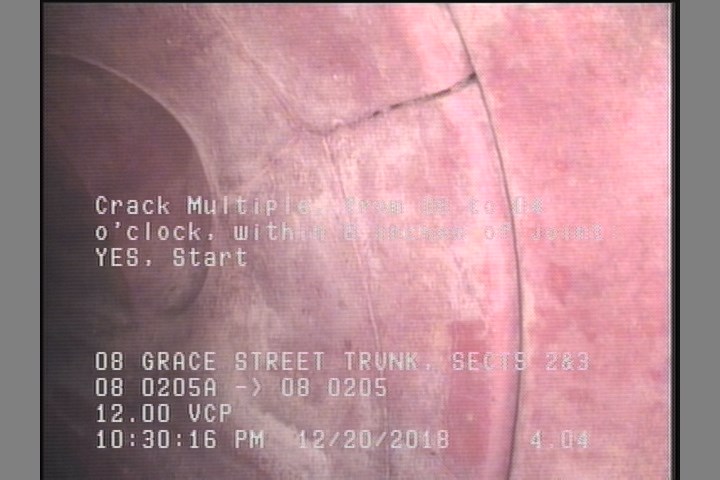

4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

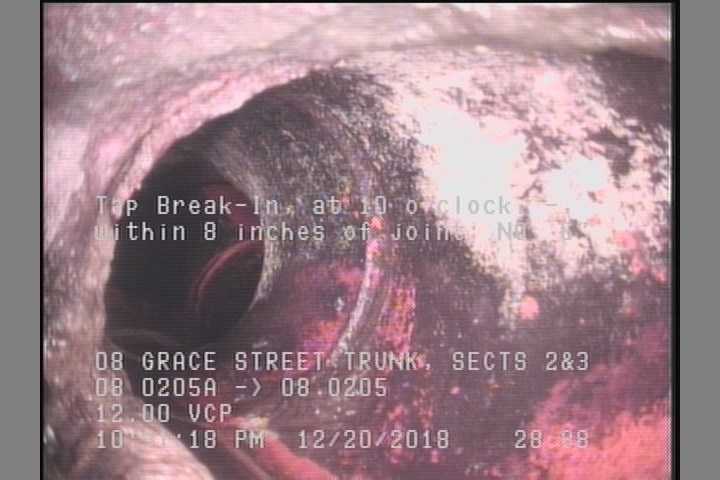

28.9 ft. - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 132.6 | CM | — |
| 132.6 | AMH | 08 0205 |
| 28.9 | TB | — |
| 40.2 | TFC | — |
| 5.4 | TF | — |
| 90.5 | TFC | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 4 | CM | — |
| 0 | MWL | — |
| 0 | AMH | 08 0205A |
Properties (6)
- additional_info
- SC365487
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-12-20T22:28:38-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
