Wastewater/Activity/PacpInspection/1.0Dec 21, 2018, 09:15 AM
08 0198_08 0197 _21122018_011621.mp4
- Date
- 12/21/2018
- W/O
- 740635
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00010
- PipeID
- P00258
- Time
- 1:15 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6254
- Sewer Name
- 08 GRACE STREET TRUNK, SECTS 2&3
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- RFIR_WO_740635_TV08022_DEC2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 08 0198
- Downstream MH
- 08 0197
- Dir. of Survey
- Downstream
- Length Surveyed
- 162.3 ft.
- Total Length
- 162.3 ft.
- Structural Index
- 3
- Structural Quick
- 413E
- Structural Rating
- 97
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 97
Observation photos (2)

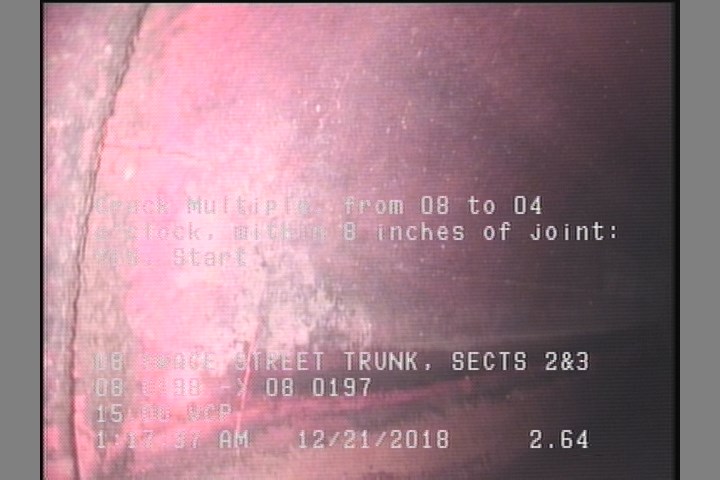

2.6 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

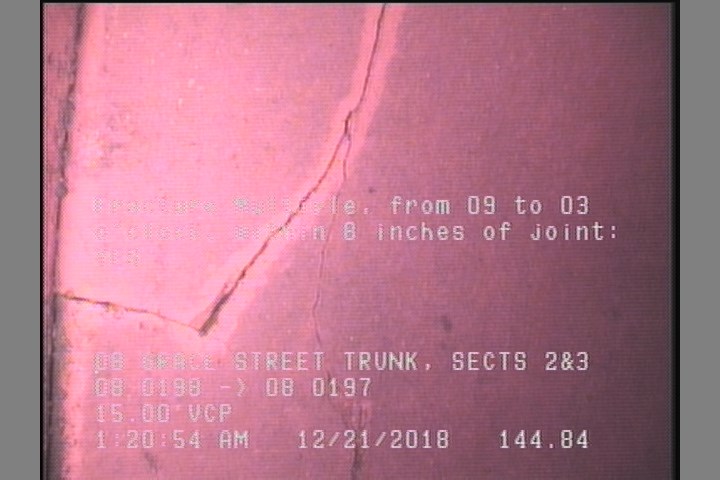

144.8 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 144.8 | FM | — |
| 50 | TFC | — |
| 0 | AMH | 08 0198 |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 96 | TF | — |
| 162.3 | AMH | 08 0197 |
| 156.8 | TFC | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 156.8 | CM | — |
| 2.6 | CM | — |
Properties (6)
- additional_info
- SC365487
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-12-21T01:15:55-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
