Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 29, 2019, 12:10 PM

  • B 0472_B 0471_5292019_051249.mp4

Date
05/29/2019
W/O
0773499
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00094
PipeID
P08996
Time
5:10 AM
Certificate
U-101406022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1217R
Sewer Name
B JOINT OUTFALL B - UNIT 5D
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
06
Purpose
Maintenance Related
Project
20190529MDM_JOINT_OUTFALL_B_UNIT_5D
Material
NRCP
Shape
Circular
Height
18 in.
Upstream MH
B 0472
Downstream MH
B 0471
Dir. of Survey
Downstream
Length Surveyed
328.9 ft.
Total Length
328.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
3A21
O&M Rating
44
Overall Index
2
Overall Quick
—
Overall Rating
44
Pipe schematic from manhole B 0472 to B 0471
MH: B 0472MH: B 0471downstream0 ft. AMH - Upstream Manhole, Survey Begins - 5:10AM0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Capped0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 40 %of cross sectional area5.2 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open9.3 ft. RMJ - Roots Medium Joint, from 08 to 04 o'clock, 10 %, within 8 inches of joint: YESR13 ft. RMJ - Roots Medium Joint, from 07 to 05 o'clock, 25 %, within 8 inches of joint: YESR16.2 ft. RMJ - Roots Medium Joint, from 08 to 04 o'clock, 25 %, within 8 inches of joint: YESR19.2 ft. RMJ - Roots Medium Joint, from 08 to 04 o'clock, 20 %, within 8 inches of joint: YESR22 ft. RMJ - Roots Medium Joint, from 09 to 03 o'clock, 5 %, within 8 inches of joint: YESR25.9 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR - 2%47.3 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR - 3%59 ft. RML - Roots Medium Lateral, from 07 to 12 o'clock, 20 %, within 8 inches of joint: YES59 ft. TFD - Tap Factory Made Defective, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open-80% ROOTS76.7 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR - 4%76.7 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active121.9 ft. RMJ - Roots Medium Joint, from 08 to 11 o'clock, 5 %, within 8 inches of joint: YESR147.6 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active166 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open184.7 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR - 4%194.7 ft. RMJ - Roots Medium Joint, from 10 to 05 o'clock, 30 %, within 8 inches of joint: YESR216.7 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open277.3 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open281.8 ft. RFJ - Roots Fine Joint, from 01 to 04 o'clock, within 8 inches of joint: YESR - 3%284.1 ft. RMJ - Roots Medium Joint, from 08 to 04 o'clock, 10 %, within 8 inches of joint: YESR287.5 ft. RMJ - Roots Medium Joint, from 06 to 10 o'clock, 25 %, within 8 inches of joint: YESR290.3 ft. RMJ - Roots Medium Joint, from 08 to 04 o'clock, 10 %, within 8 inches of joint: YESR309.4 ft. RMJ - Roots Medium Joint, from 08 to 04 o'clock, 10 %, within 8 inches of joint: YESR324 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR - 2%328.9 ft. AMH - Downstream Manhole, Survey Ends - 5:35AM

Observation photos (5)

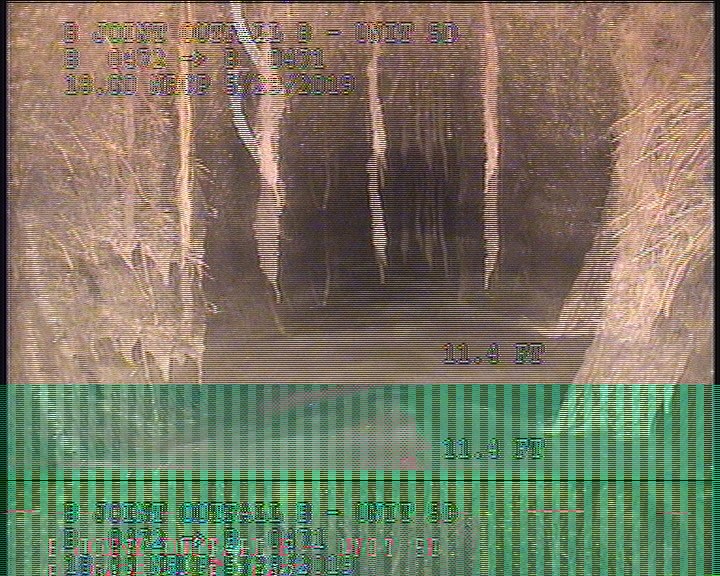

  • Roots Medium Joint, from 07 to 05 o'clock, 25 %, within 8 inches of joint: YESR

    13 ft. - Roots Medium Joint, from 07 to 05 o'clock, 25 %, within 8 inches of joint: YESR

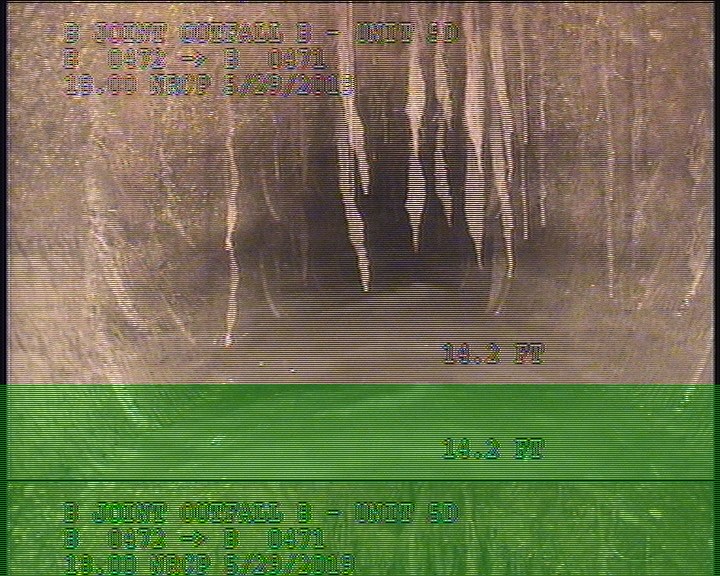

  • Roots Medium Joint, from 08 to 04 o'clock, 25 %, within 8 inches of joint: YESR

    16.2 ft. - Roots Medium Joint, from 08 to 04 o'clock, 25 %, within 8 inches of joint: YESR

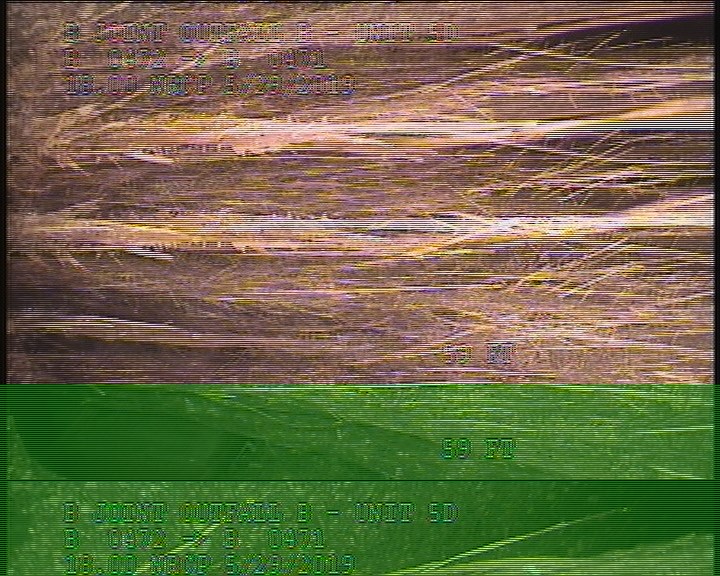

  • Roots Medium Lateral, from 07 to 12 o'clock, 20 %, within 8 inches of joint: YES

    59 ft. - Roots Medium Lateral, from 07 to 12 o'clock, 20 %, within 8 inches of joint: YES

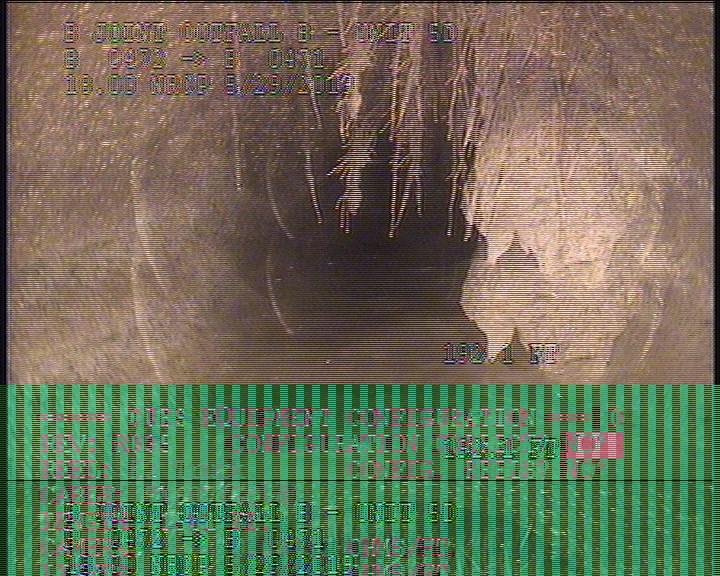

  • Roots Medium Joint, from 10 to 05 o'clock, 30 %, within 8 inches of joint: YESR

    194.7 ft. - Roots Medium Joint, from 10 to 05 o'clock, 30 %, within 8 inches of joint: YESR

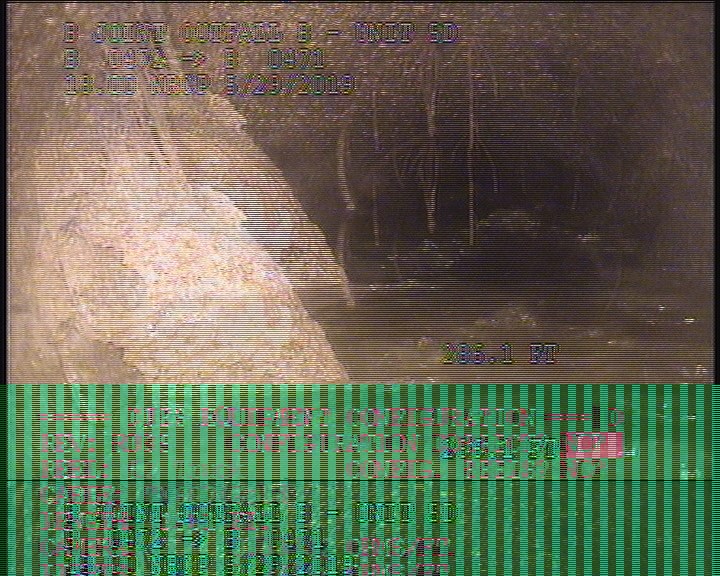

  • Roots Medium Joint, from 06 to 10 o'clock, 25 %, within 8 inches of joint: YESR

    287.5 ft. - Roots Medium Joint, from 06 to 10 o'clock, 25 %, within 8 inches of joint: YESR

All inspections of P08996Work order 0773499

Observations (30)

DistanceCodeObservation
324RFJ2%
194.7RMJ—
290.3RMJ—
277.3TFOpen
0AMH5:10AM
59RML—
147.6TFActive
25.9RFJ2%
284.1RMJ—
76.7RFJ4%
47.3RFJ3%
166TFOpen
0MGOConn. @ Mh, 9 O' Clock. Capped
121.9RMJ—
13RMJ—
5.2TFOpen
328.9AMH5:35AM
22RMJ—
19.2RMJ—
76.7TFActive
9.3RMJ—
0MWL—
309.4RMJ—
216.7TFOpen
0MWM—
16.2RMJ—
287.5RMJ—
59TFDOpen-80% ROOTS
281.8RFJ3%
184.7RFJ4%

Properties (5)

additional_info
ROOT EVALUATION ONLY
customer
LACSD
datetime
2019-05-29T05:10:48-07:00
documentation
MARTIN,REVELES,OLIVER 111,RUVALCABA
is_lateral_inspection
false
