Wastewater/Activity/PacpInspection/1.0May 30, 2019, 04:16 PM
30 0228_30 0227_5302019_092905.mp4
- Date
- 05/30/2019
- W/O
- 0771073
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00884
- PipeID
- P17929
- Time
- 9:16 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7990
- Sewer Name
- 30 VIA CAMPESINA TRUNK
- City
- PALOS VERDES ESTATES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 30
- Page No.
- 09
- Purpose
- Capital Improvement Program Assesment
- Project
- 20190529DF_VIA_CAMPESINA_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 30 0227
- Downstream MH
- 30 0228
- Dir. of Survey
- Upstream
- Length Surveyed
- 84 ft.
- Total Length
- 84 ft.
- Structural Index
- 2
- Structural Quick
- 3121
- Structural Rating
- 6
- O&M Index
- 3
- O&M Quick
- 4221
- O&M Rating
- 10
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 16
Observation photos (5)
0 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

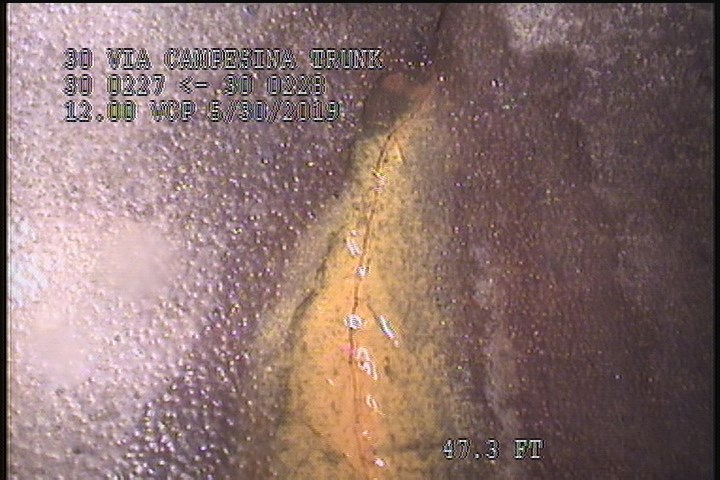

47.3 ft. - Infiltration Runner, at 09 o'clock, within 8 inches of joint: YES

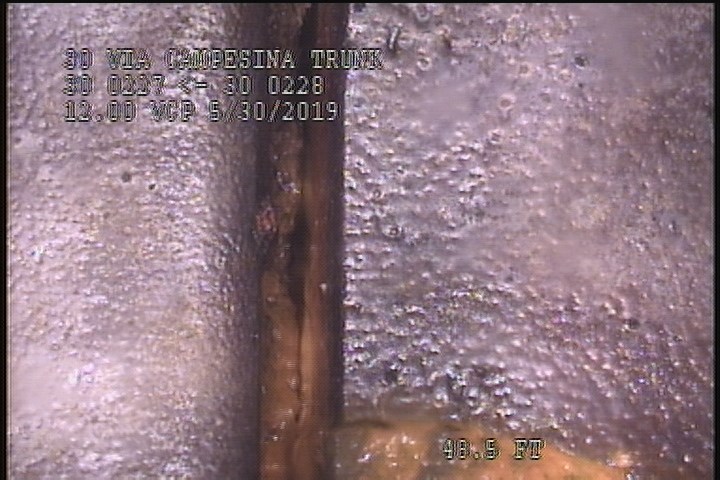

48.5 ft. - Infiltration Runner, at 03 o'clock, within 8 inches of joint: YES

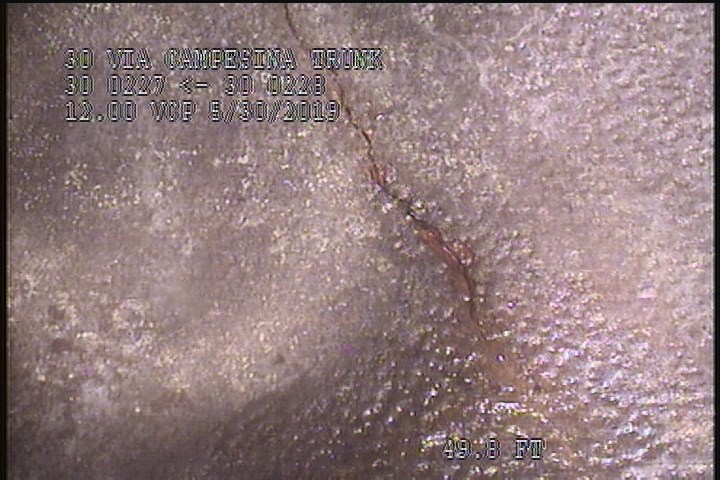

49.8 ft. - Crack Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 83.4 | CM | — |
| 84 | MGO | Grease Throughout The Reach (5%) |
| 84 | AMH | 9:50 AM |
| 0 | AMH | 9:17 AM |
| 0 | MGO | Conn. @ Mh, 1 O' Clock. Active |
| 0 | CM | — |
| 0 | MWL | — |
| 47.3 | IR | — |
| 49.8 | CC | — |
| 48.5 | IR | — |
| 83.4 | SSS | — |
| 7.5 | TBC | — |
| 2 | SSS | — |
Properties (7)
- additional_info
- THE PIPE ID IS WRONG ONSCREEN. CORRECT PIPE ID IS 017929
- custom_field_three
- INFILTRATION RUNNERS @ 3 AND 9 O'CLOCK
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-05-30T09:16:32-07:00
- documentation
- FRANKLIN, BRAR, CASTILLO
- is_lateral_inspection
- false
