Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 29, 2019, 07:07 PM

  • 30 0229_30 0228_5292019_120921.mp4

Date
05/29/2019
W/O
0771072
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00884
PipeID
P17930
Time
12:07 PM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7989
Sewer Name
30 VIA CAMPESINA TRUNK
City
PALOS VERDES ESTATES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 30
Page No.
09
Purpose
Capital Improvement Program Assesment
Project
20190529DF_VIA_CAMPESINA_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
30 0229
Downstream MH
30 0228
Dir. of Survey
Downstream
Length Surveyed
70.3 ft.
Total Length
70.3 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
3
O&M Quick
4111
O&M Rating
5
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 30 0229 to 30 0228
MH: 30 0229MH: 30 0228downstream0 ft. AMH - Upstream Manhole, Survey Begins - 12:08 PM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 15 %of cross sectional area2 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active2 ft. IR - Infiltration Runner, at 10 o'clock, within 8 inches of joint: YES - IN THE STACK2 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active3 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start4.1 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start19.3 ft. MGP - General Photograph24.4 ft. MGP - General Photograph24.4 ft. MGP - General Photograph49.1 ft. MGP - General Photograph64.6 ft. MGP - General Photograph68.7 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Finish68.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish68.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish70.3 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)70.3 ft. AMH - Downstream Manhole, Survey Ends - 12:22 PM

Observation photos (9)

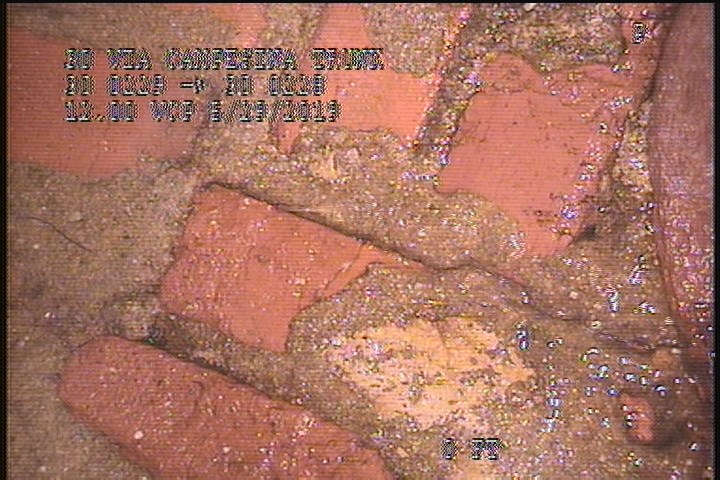

  • Infiltration Runner, at 10 o'clock, within 8 inches of joint: YES - IN THE STACK

    2 ft. - Infiltration Runner, at 10 o'clock, within 8 inches of joint: YES - IN THE STACK

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

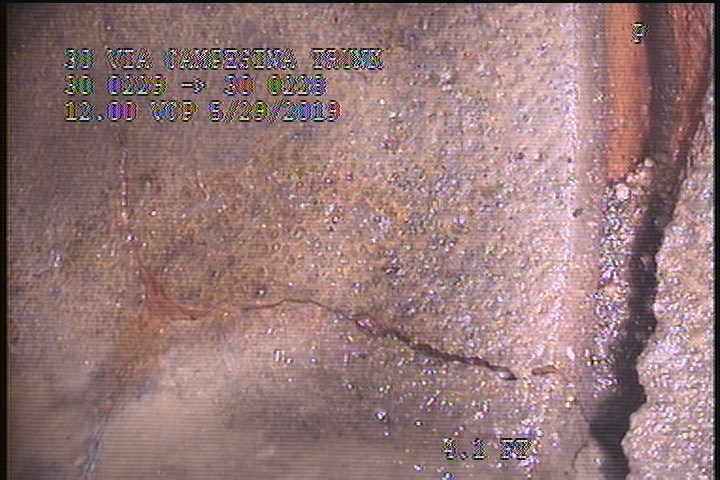

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

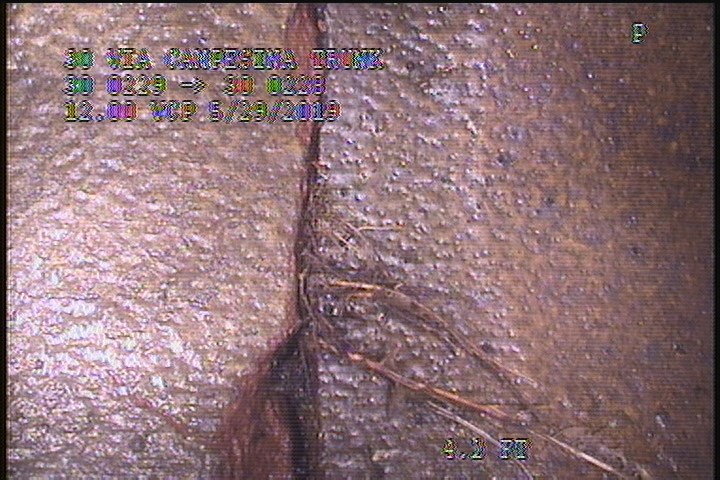

  • Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start

    4.1 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start

  • General Photograph

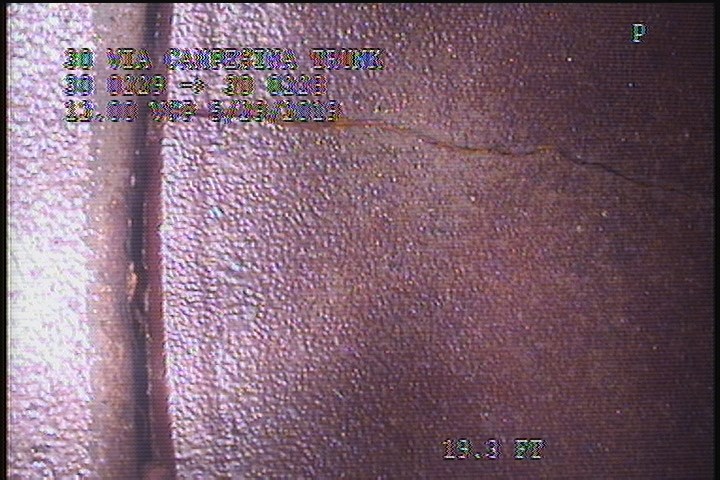

    19.3 ft. - General Photograph

  • General Photograph

    24.4 ft. - General Photograph

  • General Photograph

    24.4 ft. - General Photograph

  • General Photograph

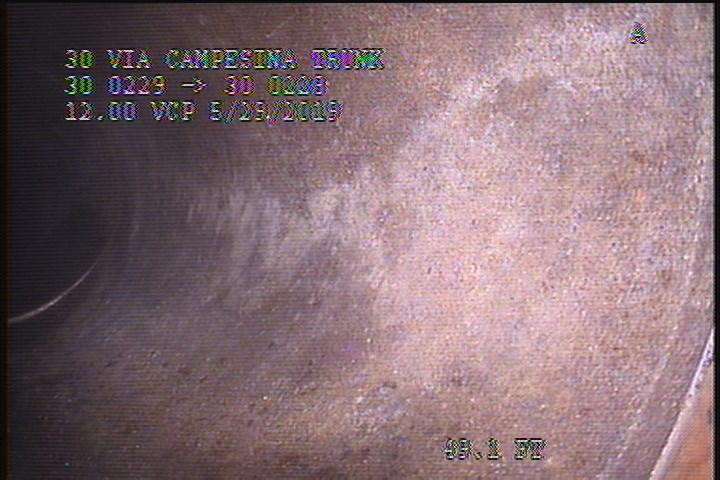

    49.1 ft. - General Photograph

  • General Photograph

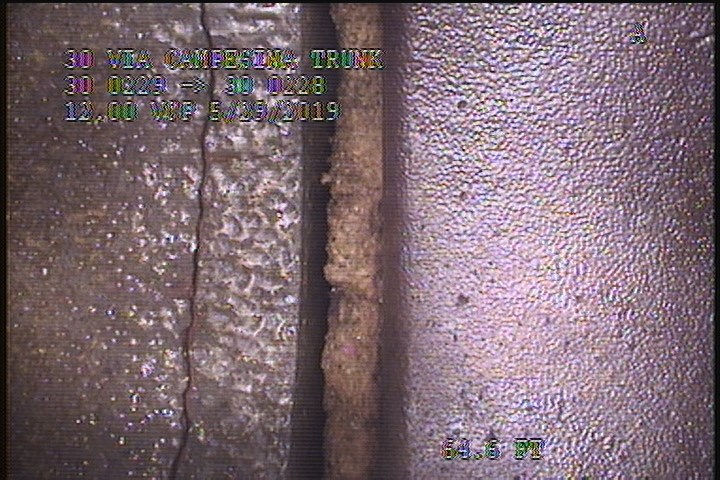

    64.6 ft. - General Photograph

All inspections of P17930Work order 0771072

Observations (19)

DistanceCodeObservation
68.7RFJ—
68.7CM—
2MGOConn. @ Mh, 3 O' Clock. Active
0AMH12:08 PM
70.3MGOGREASE THROUGHOUT THE REACH (5%)
70.3AMH12:22 PM
3SSS—
0MWL—
3CM—
0MWM—
49.1MGP—
64.6MGP—
19.3MGP—
24.4MGP—
24.4MGP—
2IRIN THE STACK
4.1RFJ—
2MGOConn. @ Mh, 9 O' Clock. Active
68.7SSS—

Properties (6)

custom_field_three
INFILTRATION RUNNER IN THE STACK @ 10 O'CLOCK
custom_field_two
3
customer
LACSD
datetime
2019-05-29T12:07:49-07:00
documentation
FRANKLIN, BRAR, CASTILLO
is_lateral_inspection
false
