Wastewater/Activity/PacpInspection/1.0May 29, 2019, 06:35 PM
30 0230_30 0229_5292019_114513.mp4
- Date
- 05/29/2019
- W/O
- 0771072
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00884
- PipeID
- P17931
- Time
- 11:35 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7989
- Sewer Name
- 30 VIA CAMPESINA TRUNK
- City
- PALOS VERDES ESTATES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 30
- Page No.
- 09
- Purpose
- Capital Improvement Program Assesment
- Project
- 20190529DF_VIA_CAMPESINA_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 30 0230
- Downstream MH
- 30 0229
- Dir. of Survey
- Downstream
- Length Surveyed
- 175 ft.
- Total Length
- 175 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (6)
0 ft. - Water Level, 10 %of cross sectional area

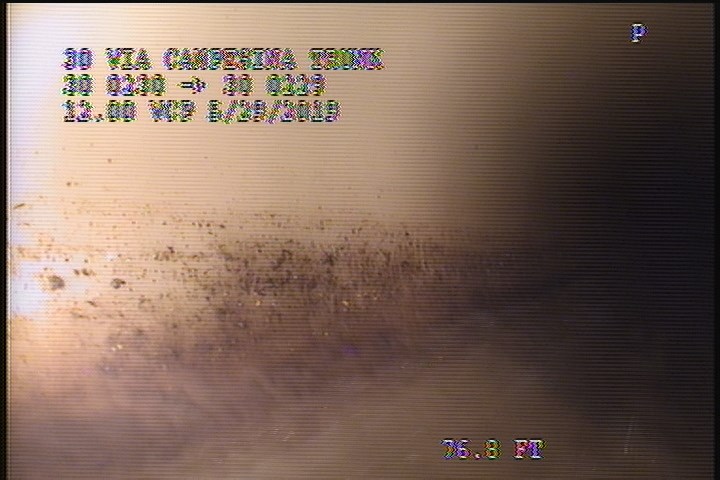

76.8 ft. - General Photograph

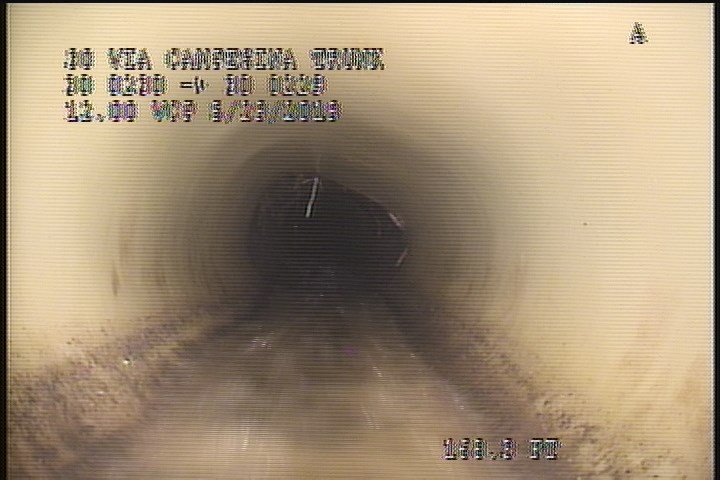

173.1 ft. - Lining Failure Annular Space, from 11 to 03 o'clock, within 8 inches of joint: YES

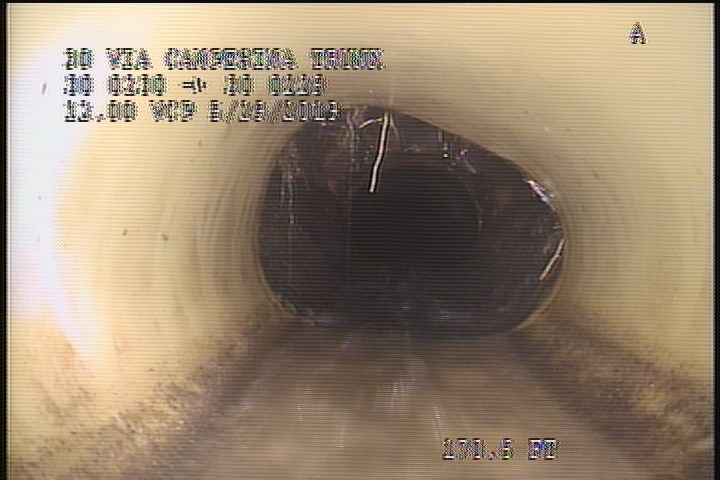

173.1 ft. - General Photograph
173.9 ft. - Lining Failure Bulges, from 11 to 03 o'clock, within 8 inches of joint: YES

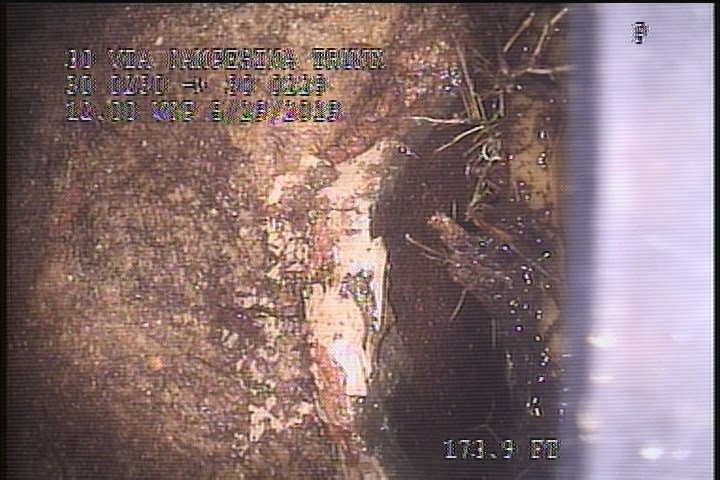

173.9 ft. - General Photograph
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 173.1 | LFAS | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 2 | MGO | Conn. @ Mh, 9 O' Clock. Active |
| 173 | MGO | Conn. @ Mh, 9 O' Clock. Active |
| 0 | AMH | 11:36 AM |
| 175 | AMH | 12:07 PM |
| 168.3 | MGP | — |
| 173.9 | LFBU | — |
| 173 | MGO | GREASE THROUGHOUT THE REACH (5%) |
| 173.1 | MGP | — |
| 173.9 | MGP | — |
| 76.8 | MGP | — |
| 173 | MGO | Conn. @ Mh, 3 O' Clock. Active |
| 139.9 | TBA | — |
Properties (5)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2019-05-29T11:35:11-07:00
- documentation
- FRANKLIN, BRAR, CASTILLO
- is_lateral_inspection
- false
