Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 29, 2019, 04:43 PM

  • 30 0232_30 0231_5292019_100230.mp4

Date
05/29/2019
W/O
0771073
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00884
PipeID
P17933
Time
9:43 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7989
Sewer Name
30 VIA CAMPESINA TRUNK
City
PALOS VERDES ESTATES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 30
Page No.
09
Purpose
Capital Improvement Program Assesment
Project
20190529DF_VIA_CAMPESINA_TRUNK
Material
NRCP
Shape
Circular
Height
10 in.
Upstream MH
30 0232
Downstream MH
30 0231
Dir. of Survey
Downstream
Length Surveyed
70.7 ft.
Total Length
70.7 ft.
Structural Index
3
Structural Quick
3221
Structural Rating
8
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
2
Overall Quick
—
Overall Rating
9
Pipe schematic from manhole 30 0232 to 30 0231
MH: 30 0232MH: 30 0231downstream0 ft. AMH - Upstream Manhole, Survey Begins - 9:55 AM0.1 ft. MWM - Water Mark, 15 %of cross sectional area0.1 ft. MWL - Water Level, 10 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start2 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start23.7 ft. MGP - General Photograph56.4 ft. MGP - General Photograph57.6 ft. TB - Tap Break-In, at 09 o'clock, -, within 8 inches of joint: YES, 4" - Open67.8 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish67.9 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish67.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish67.9 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Finish69 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active70.7 ft. MGO - General Observation - Grease Throughout The Reach (5%)70.7 ft. AMH - Downstream Manhole, Survey Ends - 10:12 AM

Observation photos (5)

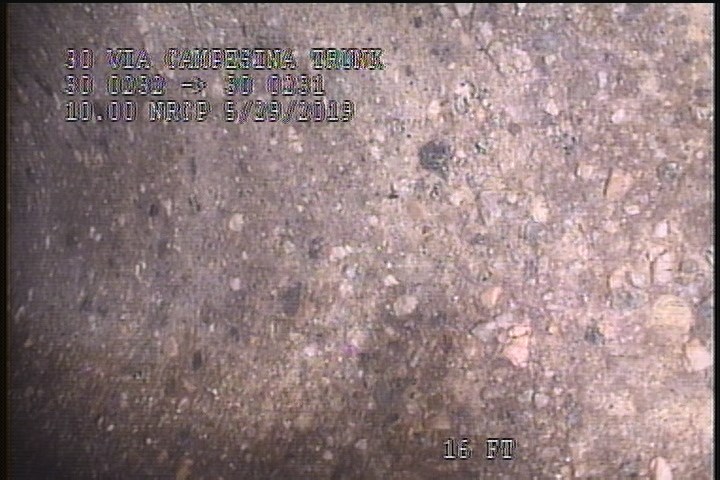

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

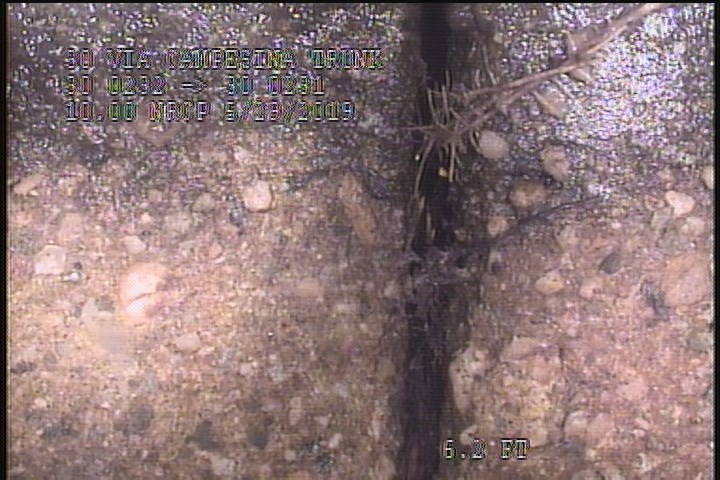

  • Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start

    2 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YESR, Start

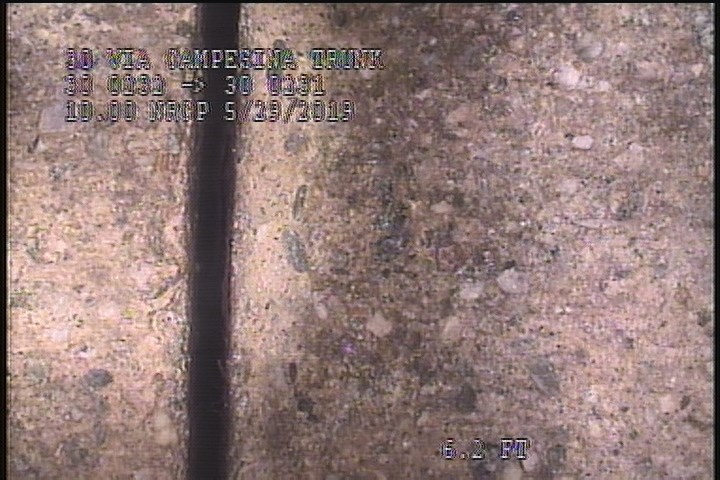

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

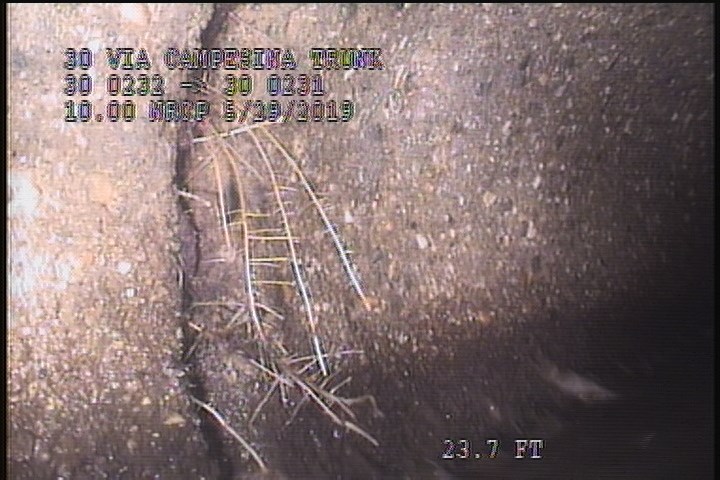

  • General Photograph

    23.7 ft. - General Photograph

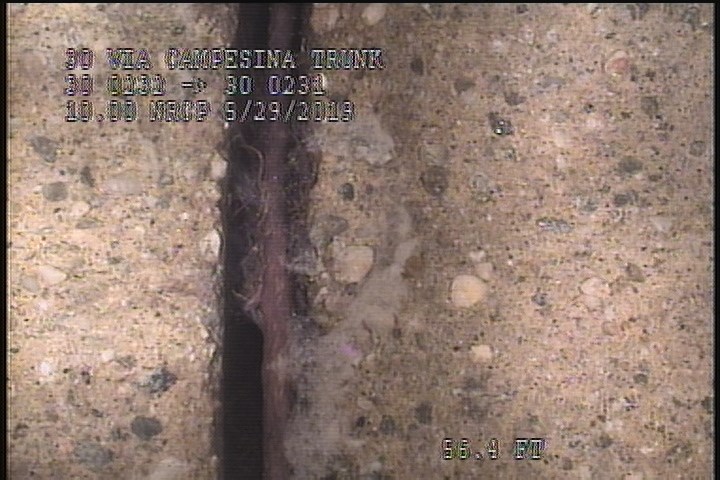

  • General Photograph

    56.4 ft. - General Photograph

All inspections of P17933Work order 0771073

Observations (17)

DistanceCodeObservation
69MGOConn. @ Mh, 9 O' Clock. Active
2SSS—
67.9SAV—
57.6TBOpen
23.7MGP—
67.9CM—
2RFJ—
70.7MGOGrease Throughout The Reach (5%)
0.1MWM—
70.7AMH10:12 AM
0.1MWL—
2CM—
2SAV—
0AMH9:55 AM
67.8SSS—
56.4MGP—
67.9RFJ—

Properties (6)

additional_info
THE ONSCREEN W.O. NUMBER IS WRONG. THE CORRECT W.O. NUMBER IS (0771073)
custom_field_two
3
customer
LACSD
datetime
2019-05-29T09:43:28-07:00
documentation
FRANKLIN, BRAR, CASTILLO
is_lateral_inspection
false
