Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 17, 2019, 08:18 AM

  • 30 0248_30 0247_5172019_013840.mp4

Date
05/17/2019
W/O
0771071
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00884
PipeID
P17949
Time
1:18 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H1214
Sewer Name
30 VIA CAMPESINA TRUNK
City
PALO VERDES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 30
Page No.
09
Purpose
Routine Assessment
Project
20190517MDM_VIA_CAMPESINA_TRUNK
Material
NRCP
Shape
Circular
Height
10 in.
Upstream MH
30 0248
Downstream MH
30 0247
Dir. of Survey
Downstream
Length Surveyed
205.9 ft.
Total Length
205.9 ft.
Structural Index
4
Structural Quick
5142
Structural Rating
13
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
4
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole 30 0248 to 30 0247
MH: 30 0248MH: 30 0247downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:15AM0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active8 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: NO, Start - SEVERE AGG52.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open52.5 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG106.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open108.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped199.7 ft. RFJ - Roots Fine Joint, from 08 to 11 o'clock, within 8 inches of joint: YESR - 1%205.5 ft. MGO - General Observation - SHELF 9:00 SEVERE CORRISON205.5 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active205.5 ft. SAM - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: NO, Finish - SEVERE AGG205.5 ft. HVV - Hole Void Visible, from 05 to 07 o'clock, within 8 inches of joint: NO - INSIDE MH BOTTOM OF PIPE205.5 ft. MGP - General Photograph - HOLE BOTTOM OF PIPE205.9 ft. AMH - Downstream Manhole, Survey Ends - 1:45AM

Observation photos (5)

  • Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: NO, Start - SEVERE AGG

    8 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: NO, Start - SEVERE AGG

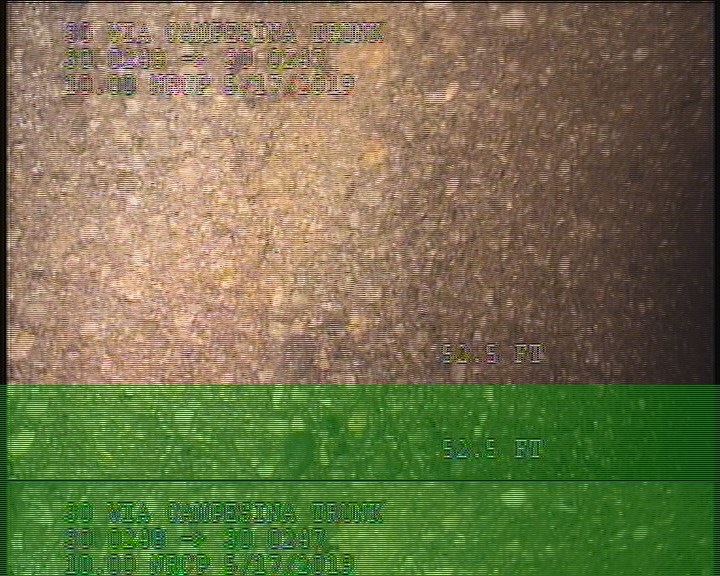

  • Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG

    52.5 ft. - Surface Aggregate Missing, from 08 to 04 o'clock, within 8 inches of joint: NO - SEVERE AGG

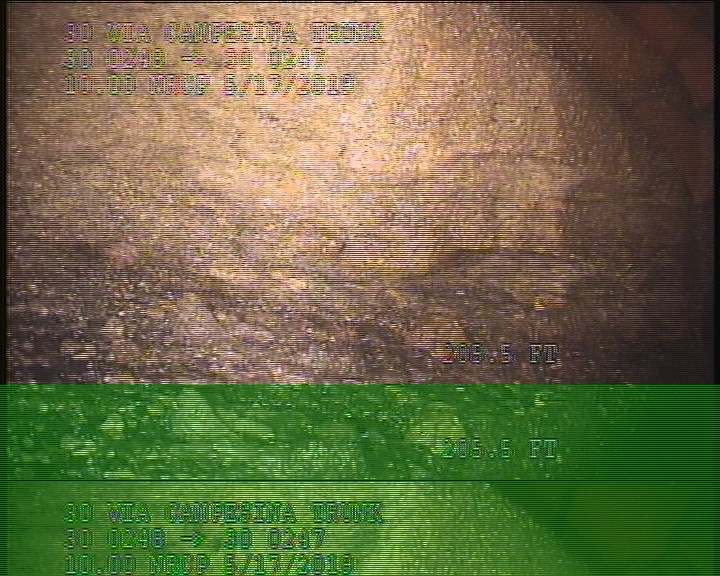

  • General Observation - SHELF 9:00 SEVERE CORRISON

    205.5 ft. - General Observation - SHELF 9:00 SEVERE CORRISON

  • Hole Void Visible, from 05 to 07 o'clock, within 8 inches of joint: NO - INSIDE MH BOTTOM OF PIPE

    205.5 ft. - Hole Void Visible, from 05 to 07 o'clock, within 8 inches of joint: NO - INSIDE MH BOTTOM OF PIPE

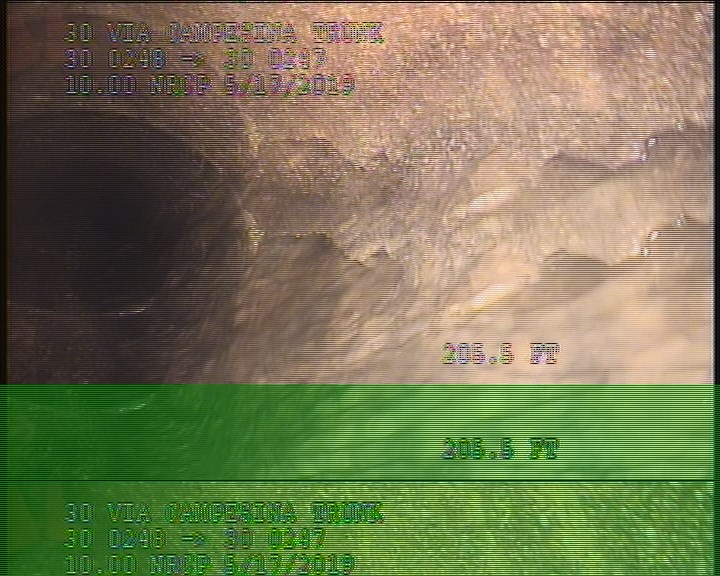

  • General Photograph - HOLE BOTTOM OF PIPE

    205.5 ft. - General Photograph - HOLE BOTTOM OF PIPE

All inspections of P17949Work order 0771071

Observations (16)

DistanceCodeObservation
0MWL—
205.5MGOSHELF 9:00 SEVERE CORRISON
205.5MGOConn. @ Mh, 9 O' Clock. Active
52.5TFOpen
0MWM—
205.5SAMSEVERE AGG
199.7RFJ1%
106.2TFOpen
108.6TFCCapped
0AMH1:15AM
205.5HVVINSIDE MH BOTTOM OF PIPE
52.5SAMSEVERE AGG
205.9AMH1:45AM
205.5MGPHOLE BOTTOM OF PIPE
8SAMSEVERE AGG
0MGOConn. @ Mh, 3 O' Clock. Active

Properties (7)

additional_info
HOLE WITH VOID 5:00 TO 7:00 INSIDE MH 247
custom_field_three
SEVERE AGG MISSING
custom_field_two
2
customer
LACSD
datetime
2019-05-17T01:18:04-07:00
documentation
MARTIN,REVELES,OLIVER 111
is_lateral_inspection
false
