Wastewater/Activity/PacpInspection/1.0Mar 14, 2019, 08:09 AM
C 0553_C 0552_03142019_011957.mp4
- Date
- 03/14/2019
- W/O
- 756627
- Weather
- Dry
- Operator/Surveyor
- J. BUENROSTRO
- Sewer ID
- Z00362
- PipeID
- P04736
- Time
- 1:09 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5827
- Sewer Name
- C JOINT OUTFALL C - UNIT 4D
- City
- LONG BEACH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_756627_TV03083_MAR2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- C 0553
- Downstream MH
- C 0552
- Dir. of Survey
- Downstream
- Length Surveyed
- 268.7 ft.
- Total Length
- 268.7 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 4131
- O&M Rating
- 9
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (1)

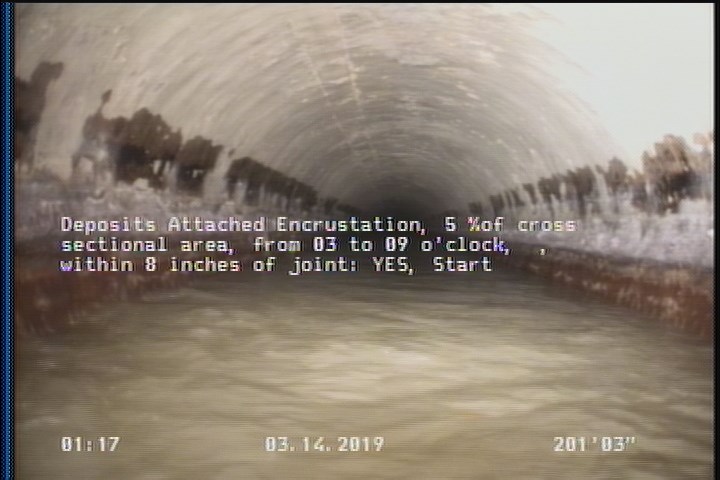

201.3 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | AMH | C 0553 |
| 268.7 | MGO | SERVICE CONNECTION AT 3 O' CLOCK AT MH |
| 266.6 | DAE | — |
| 201.3 | DAE | — |
| 105.2 | DSC | — |
| 5 | MGO | LINER |
| 268.7 | AMH | C 0552 |
| 6.7 | TB | — |
| 0 | MWL | — |
Properties (8)
- additional_info
- SC366057
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2019-03-14T01:09:29-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
- lining
- CIPP
- year_laid
- 36286
