Wastewater/Activity/PacpInspection/1.0Apr 3, 2019, 07:30 AM
B 0583_B 0582 _04032019_005118.mp4
- Date
- 04/03/2019
- W/O
- 756625
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z00104
- PipeID
- P09154
- Time
- 12:30 AM
- Certificate
- U-715-07000753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6510
- Sewer Name
- B JOINT OUTFALL B - UNIT 8A
- City
- EL MONTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 22
- Purpose
- Routine Assessment
- Project
- WO_756625_TV15054_MAR2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- B 0583
- Downstream MH
- B 0582
- Dir. of Survey
- Downstream
- Length Surveyed
- 356.2 ft.
- Total Length
- 356.2 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2111
- O&M Rating
- 3
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (4)

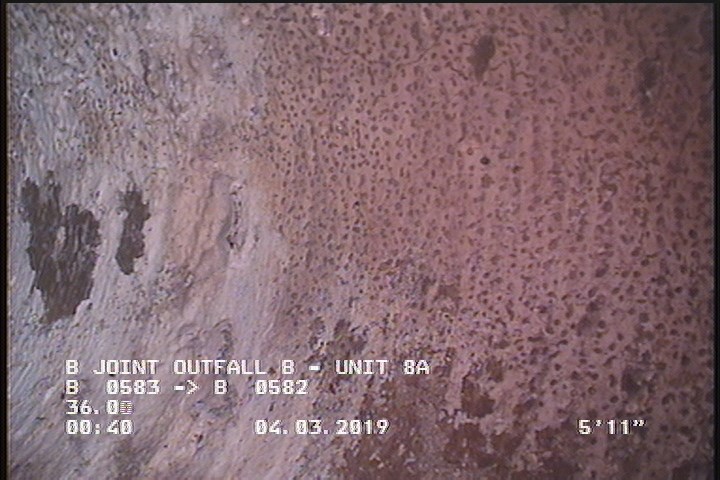

6 ft. - General Observation - MAG COAT THROUGHOUT START

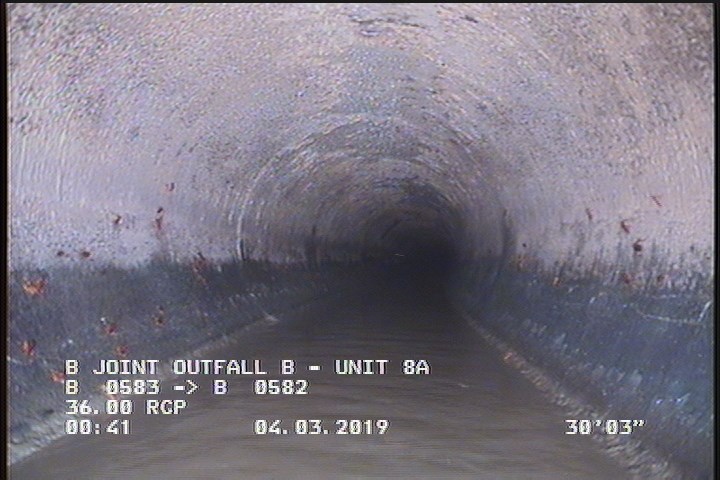

30.3 ft. - Alignment Right, 5 %

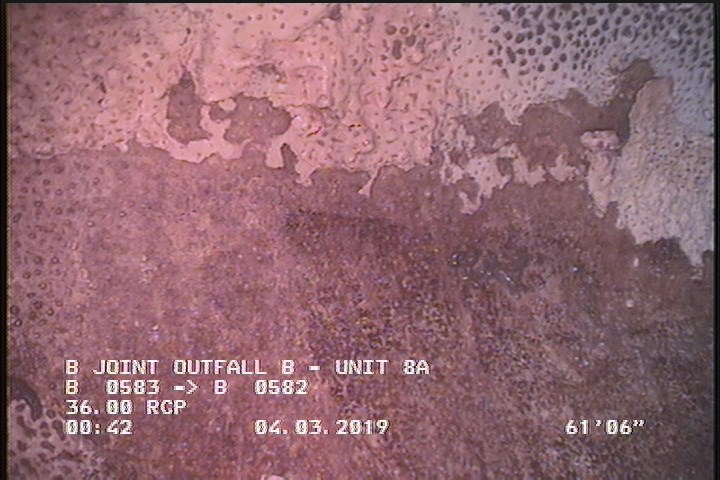

61.5 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

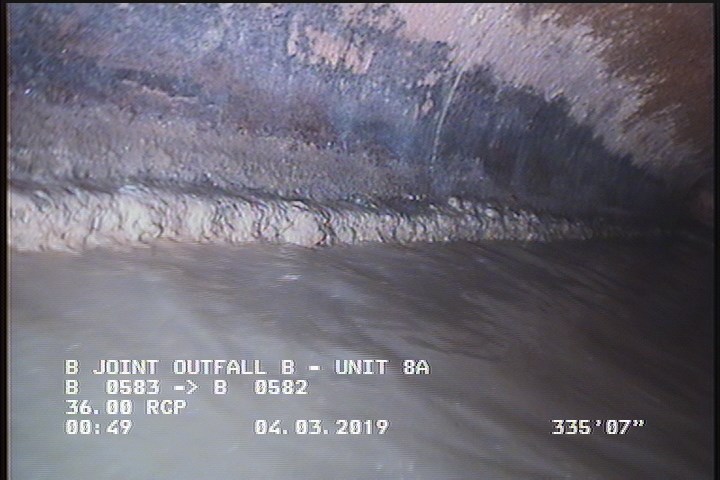

335.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 353.3 | MGO | MAG COAT THROUGHOUT END |
| 0 | MWL | — |
| 6 | MGO | MAG COAT THROUGHOUT START |
| 61.5 | SAV | — |
| 30.3 | LR | — |
| 0 | AMH | B 0583 |
| 335.4 | DAGS | — |
| 0 | MWM | — |
| 353.3 | DAGS | — |
| 353.3 | SAV | — |
| 356.2 | AMH | B 0582 |
Properties (5)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2019-04-03T00:30:21-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
