Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 2, 2019, 05:15 AM

  • B 0578_B 0576 _04012019_225100.mp4

Date
04/01/2019
W/O
756625
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00104
PipeID
P09149
Time
10:15 PM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6508
Sewer Name
B JOINT OUTFALL B - UNIT 8A
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
22
Purpose
Routine Assessment
Project
WO_756625_TV15054_MAR2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
36 in.
Width
36 in.
Upstream MH
B 0578
Downstream MH
B 0576
Dir. of Survey
Downstream
Length Surveyed
707.8 ft.
Total Length
707.8 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
6
Pipe schematic from manhole B 0578 to B 0576
MH: B 0578MH: B 0576downstream0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. MWL - Water Level, 30 %of cross sectional area0 ft. MWM - Water Mark, 45 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - B 05786 ft. MGO - General Observation - MAG COAT9.5 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start338.2 ft. MGO - General Observation - MH ABANDONED429 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start429 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish704.7 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish704.7 ft. MGO - General Observation - MAG COAT707.8 ft. AMH - Downstream Manhole, Survey Ends - B 0576707.8 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK CAPPED

Observation photos (2)

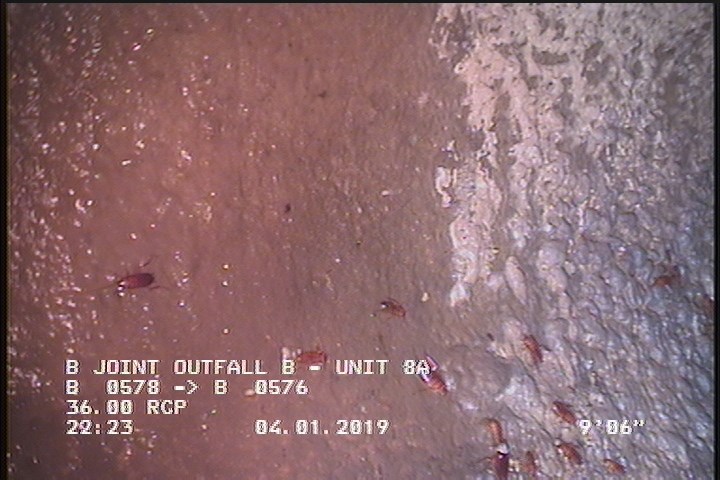

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    9.5 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

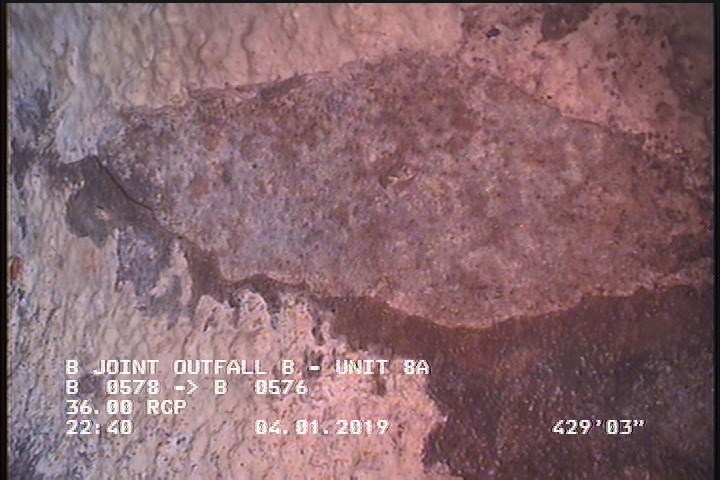

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    429 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P09149Work order 756625

Observations (13)

DistanceCodeObservation
704.7SAP—
429SAP—
707.8AMHB 0576
0MGOCONNECTION AT MH 3 O'CLOCK
0MWL—
338.2MGOMH ABANDONED
0MWM—
429SAV—
6MGOMAG COAT
9.5SAV—
707.8MGOCONNECTION AT MH 3 O'CLOCK CAPPED
704.7MGOMAG COAT
0AMHB 0578

Properties (5)

custom_field_two
2
customer
LACSD
datetime
2019-04-01T22:15:25-07:00
documentation
PROPIPE
is_lateral_inspection
false
