Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 1, 2019, 09:34 AM

  • B 0598_B 0597 _04012019_024915.mp4

Date
04/01/2019
W/O
756625
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00104
PipeID
P09169
Time
2:34 AM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6507
Sewer Name
B JOINT OUTFALL B - UNIT 8A
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
16
Purpose
Routine Assessment
Project
WO_756625_TV15054_MAR2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
30 in.
Width
30 in.
Upstream MH
B 0598
Downstream MH
B 0597
Dir. of Survey
Downstream
Length Surveyed
332.7 ft.
Total Length
332.7 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole B 0598 to B 0597
MH: B 0598MH: B 0597downstream0 ft. AMH - Upstream Manhole, Survey Begins - B 05980 ft. MWL - Water Level, 30 %of cross sectional area0 ft. MWM - Water Mark, 40 %of cross sectional area4.9 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start4.9 ft. MGO - General Observation - MAG COAT329.7 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish329.7 ft. MGO - General Observation - MAG COAT332.7 ft. AMH - Downstream Manhole, Survey Ends - B 0597

Observation photos (2)

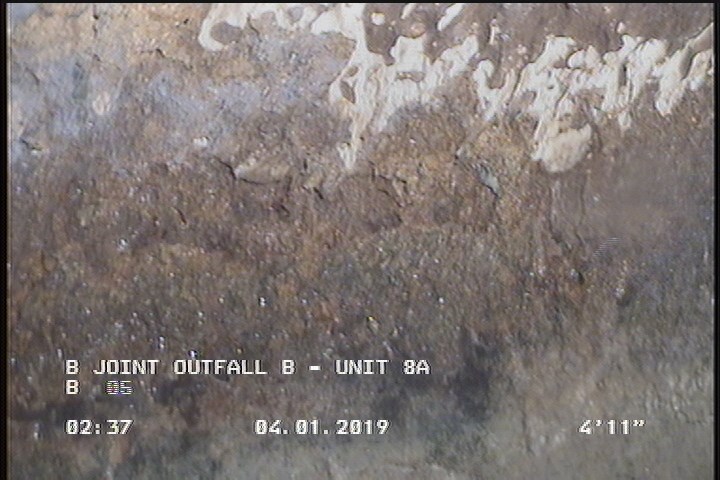

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.9 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

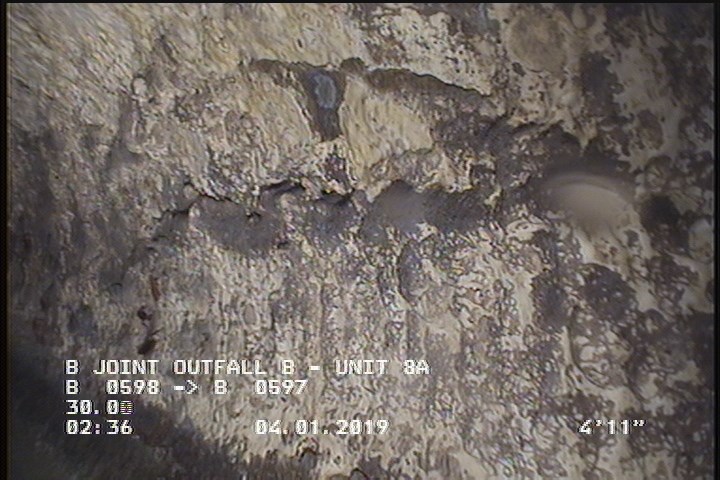

  • General Observation - MAG COAT

    4.9 ft. - General Observation - MAG COAT

All inspections of P09169Work order 756625

Observations (8)

DistanceCodeObservation
0AMHB 0598
4.9SAP—
329.7SAP—
0MWL—
0MWM—
332.7AMHB 0597
329.7MGOMAG COAT
4.9MGOMAG COAT

Properties (5)

custom_field_two
2
customer
LACSD
datetime
2019-04-01T02:34:00-07:00
documentation
PROPIPE
is_lateral_inspection
false
