Wastewater/Activity/PacpInspection/1.0Apr 1, 2019, 11:02 AM
B 0596_B 0595 _04012019_040615.mp4
- Date
- 04/01/2019
- W/O
- 756625
- Weather
- Dry
- Operator/Surveyor
- E.RUIZ
- Sewer ID
- Z00104
- PipeID
- P09167
- Time
- 4:02 AM
- Certificate
- U-715-07000753
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K6507
- Sewer Name
- B JOINT OUTFALL B - UNIT 8A
- City
- EL MONTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- WO_756625_TV15054_MAR2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- B 0596
- Downstream MH
- B 0595
- Dir. of Survey
- Downstream
- Length Surveyed
- 24.4 ft.
- Total Length
- 24.4 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

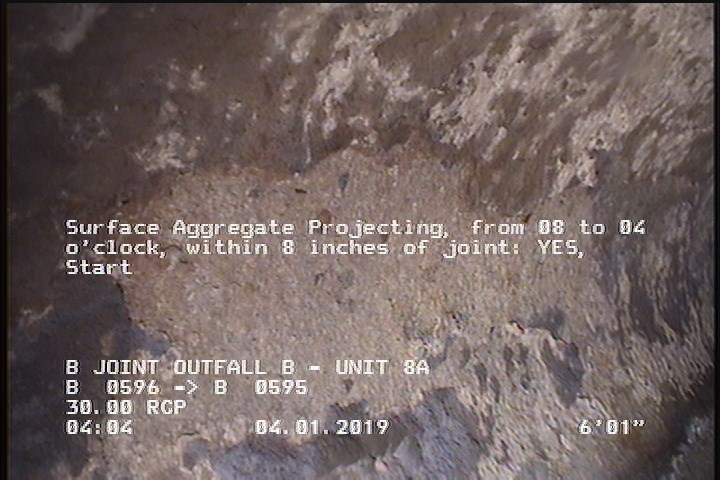

6.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

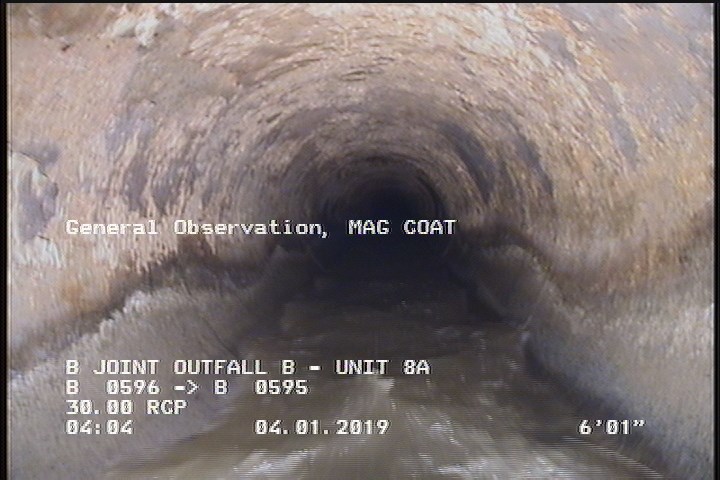

6.1 ft. - General Observation - MAG COAT
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 6.1 | SAP | — |
| 24.4 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 19.4 | SAP | — |
| 0 | MWM | — |
| 0 | AMH | B 0596 |
| 19.4 | MGO | MAG COAT |
| 24.4 | AMH | B 0595 |
| 6.1 | MGO | MAG COAT |
| 0 | MWL | — |
Properties (5)
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-04-01T04:02:11-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
