Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 2, 2019, 08:05 AM

  • B 0587_B 0586 _04022019_011955.mp4

Date
04/02/2019
W/O
756625
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00104
PipeID
P09158
Time
1:05 AM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6508
Sewer Name
B JOINT OUTFALL B - UNIT 8A
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
22
Purpose
Routine Assessment
Project
WO_756625_TV15054_MAR2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
36 in.
Width
36 in.
Upstream MH
B 0587
Downstream MH
B 0586
Dir. of Survey
Downstream
Length Surveyed
197.2 ft.
Total Length
197.2 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole B 0587 to B 0586
MH: B 0587MH: B 0586downstream0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 45 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - B 05870 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK6 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start6 ft. MGO - General Observation - MAG COAT68.6 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 8"165.7 ft. TFB - Tap Factory Made Abandoned, at 10 o'clock, -, within 8 inches of joint: YES, 6"171 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"197.2 ft. AMH - Downstream Manhole, Survey Ends - B 0586197.2 ft. MGO - General Observation - MAG COAT197.2 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish

Observation photos (2)

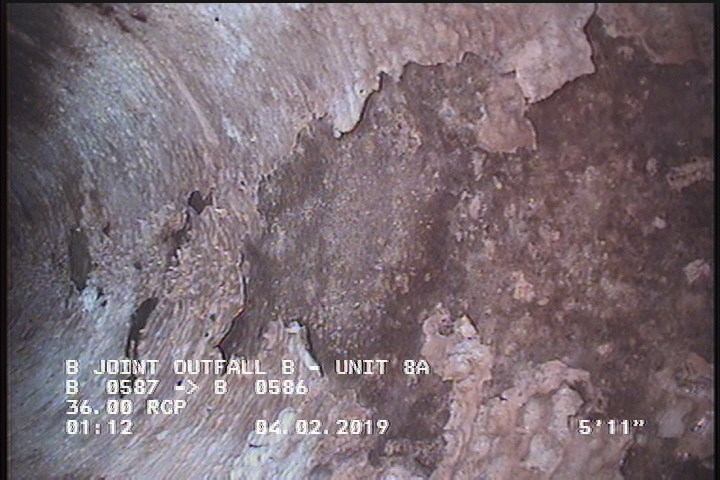

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    6 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

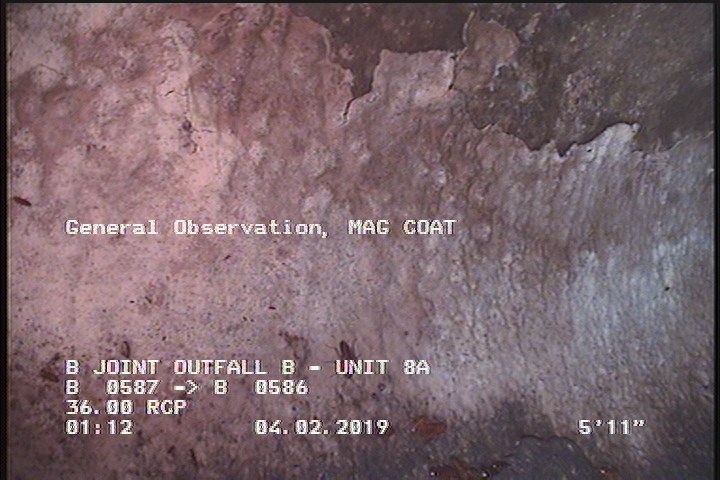

  • General Observation - MAG COAT

    6 ft. - General Observation - MAG COAT

All inspections of P09158Work order 756625

Observations (13)

DistanceCodeObservation
165.7TFB—
6SAV—
0MGOCONNECTION AT MH 9 O'CLOCK
197.2AMHB 0586
197.2MGOMAG COAT
0MWL—
6MGOMAG COAT
197.2SAV—
0MWM—
0AMHB 0587
0MGOCONNECTION AT MH 3 O'CLOCK
171TFC—
68.6TFA—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-04-02T01:05:54-07:00
documentation
PROPIPE
is_lateral_inspection
false
