Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Apr 2, 2019, 10:07 AM

  • B 0592_B 0591 _04022019_031900.mp4

Date
04/02/2019
W/O
756625
Weather
Dry
Operator/Surveyor
E.RUIZ
Sewer ID
Z00104
PipeID
P09163
Time
3:07 AM
Certificate
U-715-07000753
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K6508
Sewer Name
B JOINT OUTFALL B - UNIT 8A
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
22
Purpose
Routine Assessment
Project
WO_756625_TV15054_MAR2019
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
27 in.
Width
27 in.
Upstream MH
B 0592
Downstream MH
B 0591
Dir. of Survey
Downstream
Length Surveyed
261.7 ft.
Total Length
261.7 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole B 0592 to B 0591
MH: B 0592MH: B 0591downstream0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - B 05920 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. MWL - Water Level, 15 %of cross sectional area4.2 ft. MGO - General Observation - MAG COAT4.2 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start71.2 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 6"259.6 ft. SAV - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish259.6 ft. MGO - General Observation - MAG COAT THROUGHOUT END261.7 ft. AMH - Downstream Manhole, Survey Ends - B 0591

Observation photos (2)

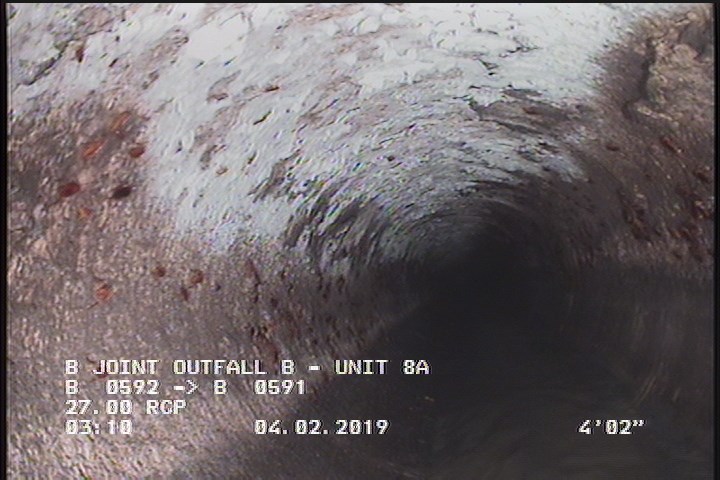

  • General Observation - MAG COAT

    4.2 ft. - General Observation - MAG COAT

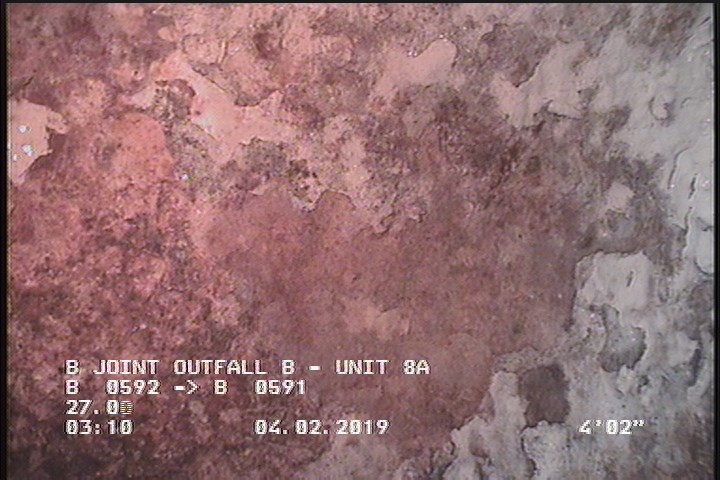

  • Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    4.2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P09163Work order 756625

Observations (11)

DistanceCodeObservation
0MGOCONNECTION AT MH 3 O'CLOCK
259.6SAV—
0MWM—
261.7AMHB 0591
0AMHB 0592
4.2MGOMAG COAT
4.2SAV—
259.6MGOMAG COAT THROUGHOUT END
0MGOCONNECTION AT MH 9 O'CLOCK
0MWL—
71.2TFA—

Properties (5)

custom_field_two
3
customer
LACSD
datetime
2019-04-02T03:07:24-07:00
documentation
PROPIPE
is_lateral_inspection
false
