Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 28, 2019, 06:45 AM

  • 29 0193_29 0173 _02272019_224622.mp4

Date
02/27/2019
W/O
750894
Weather
Light Rain
Operator/Surveyor
S. LOPEZ
Sewer ID
Z01025
PipeID
P24091
Time
10:45 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6408
Sewer Name
29 28TH STREET SEWER
City
SIGNAL HILL
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
02
Purpose
Routine Assessment
Project
WO_750894_TV29101_FEB2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0173
Downstream MH
29 0193
Dir. of Survey
Upstream
Length Surveyed
326.9 ft.
Total Length
326.9 ft.
Structural Index
3
Structural Quick
423K
Structural Rating
191
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
191
Pipe schematic from manhole 29 0173 to 29 0193
MH: 29 0173MH: 29 0193upstream0 ft. AMH - Upstream Manhole, Survey Ends - 29 01931.9 ft. CM - Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES, Finish40 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"42.9 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"51.1 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"90 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"92.4 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"140.2 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: NO, 6"142.4 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"187.5 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"189.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"212.5 ft. FM - Fracture Multiple, from 03 to 09 o'clock, within 8 inches of joint: YES, Finish215.8 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: YES, 6"216.1 ft. FM - Fracture Multiple, from 03 to 09 o'clock, within 8 inches of joint: YES, Start237.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"239.7 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"287.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"289.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"305.3 ft. CM - Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES, Start326.9 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK326.9 ft. MWL - Water Level, 5 %of cross sectional area326.9 ft. MWM - Water Mark, 10 %of cross sectional area326.9 ft. AMH - Downstream Manhole, Survey Begins - 29 0173

Observation photos (2)

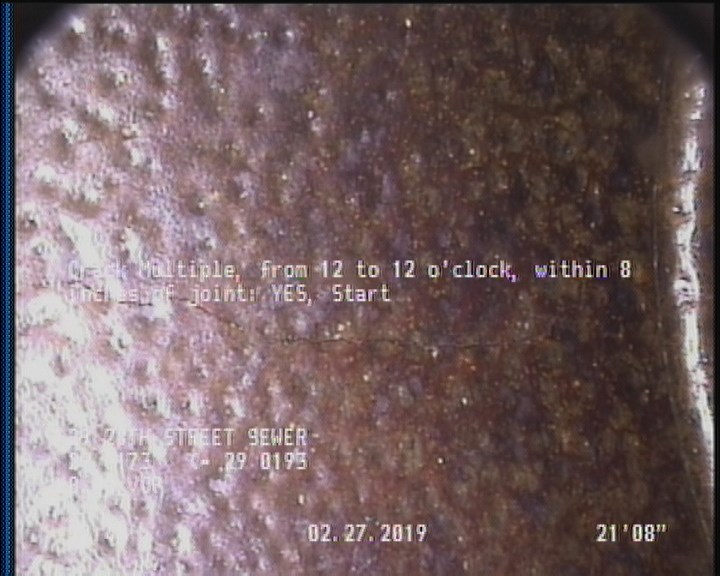

  • Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES, Start

    21.6 ft. - Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES, Start

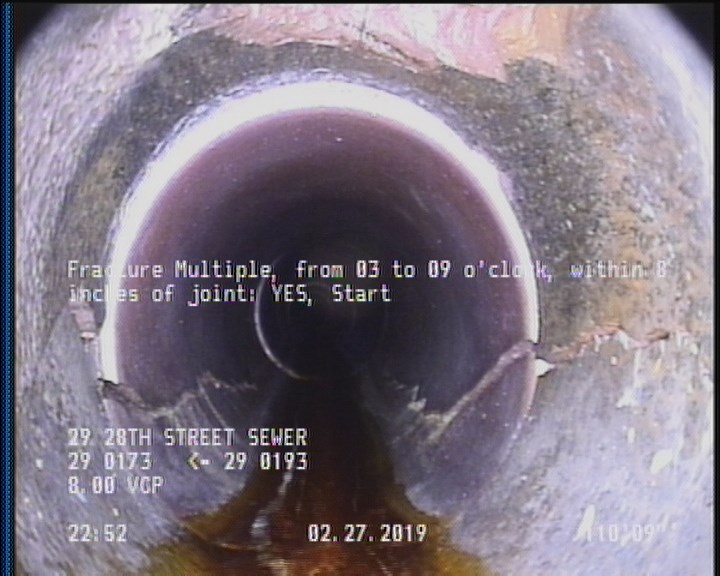

  • Fracture Multiple, from 03 to 09 o'clock, within 8 inches of joint: YES, Start

    110.8 ft. - Fracture Multiple, from 03 to 09 o'clock, within 8 inches of joint: YES, Start

All inspections of P24091Work order 750894

Observations (23)

DistanceCodeObservation
326.9AMH29 0193
111.1TBA—
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK
0MWL—
186.7TFC—
137.3TFC—
325CM—
284TFC—
184.5TFC—
21.6CM—
110.8FM—
139.4TFA—
114.4FM—
39.7TFC—
236.9TFC—
234.5TFC—
89.5TFC—
286.9TFC—
0MWM—
0AMH29 0173
87.2TFC—
37.3TFA—
275.8TBA—

Properties (6)

additional_info
SC365923
custom_field_two
2
customer
LACSD
datetime
2019-02-27T22:45:12-08:00
documentation
PRO PIPE
is_lateral_inspection
false
