Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 28, 2019, 05:37 AM

  • 29 0201_29 0180 _02272019_213804.mp4

Date
02/27/2019
W/O
750894
Weather
Light Rain
Operator/Surveyor
S. LOPEZ
Sewer ID
Z01025
PipeID
P24100
Time
9:37 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6408
Sewer Name
29 28TH STREET SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Routine Assessment
Project
WO_750894_TV29101_FEB2019
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0201
Downstream MH
29 0180
Dir. of Survey
Downstream
Length Surveyed
336.5 ft.
Total Length
336.5 ft.
Structural Index
3
Structural Quick
3J00
Structural Rating
168
O&M Index
2
O&M Quick
2L00
O&M Rating
134
Overall Index
2
Overall Quick
—
Overall Rating
302
Pipe schematic from manhole 29 0201 to 29 0180
MH: 29 0201MH: 29 0180downstream0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 29 2010 ft. MWL - Water Level, 5 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start7.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"10.9 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"30 ft. CM - Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES54.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"56.8 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"58.1 ft. CM - Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES, Start106.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"109.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"156.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"159.3 ft. TBA - Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: NO, 6"206.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"208.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"258.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"261.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"307.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"310.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"335.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish335.3 ft. CM - Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES, Finish336.5 ft. AMH - Downstream Manhole, Survey Ends - 29 0180336.5 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK

Observation photos (3)

  • Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

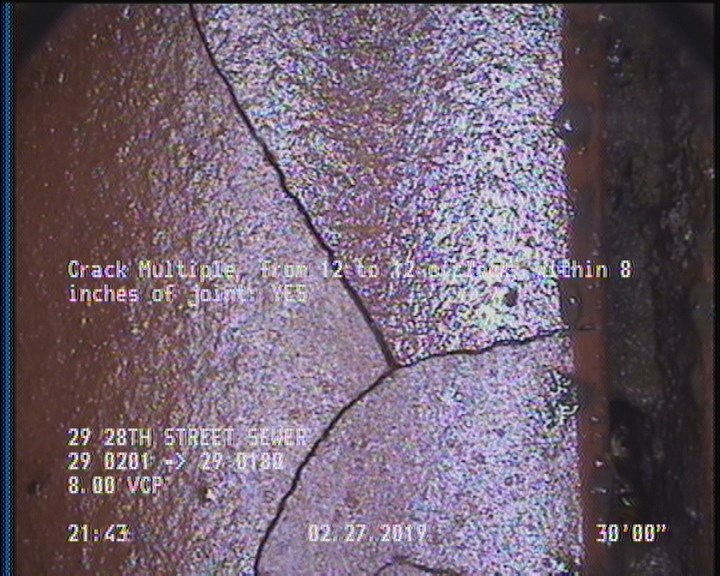

  • Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

    30 ft. - Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES, Start

    58.1 ft. - Crack Multiple, from 12 to 12 o'clock, within 8 inches of joint: YES, Start

All inspections of P24100Work order 750894

Observations (24)

DistanceCodeObservation
335.3DAGS—
30CM—
0MWM—
261.3TFC—
310.4TFC—
10.9TFA—
58.1CM—
2DAGS—
335.3CM—
0AMH29 201
106.8TFC—
159.3TBA—
56.8TFA—
258.2TFC—
156.3TFC—
109.5TFC—
307.5TFC—
336.5AMH29 0180
54.4TFC—
0MWL—
7.8TFC—
208.7TFC—
206.7TFC—
336.5MGOACTIVE CONNECTION AT MH 3 O'CLOCK

Properties (6)

additional_info
SC365923
custom_field_two
3
customer
LACSD
datetime
2019-02-27T21:37:40-08:00
documentation
PRO PIPE
is_lateral_inspection
false
