Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 3, 2019, 11:38 AM

  • 08 0400_08 0390 _01032019_035044.mp4

Date
01/03/2019
W/O
740301
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00002
PipeID
P00453
Time
3:38 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6312
Sewer Name
08 DAVIDSON CITY TRUNK, SECTION 4
City
COMPTON
Loc. details
Sidewalk
Location Code
F
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
09
Purpose
Routine Assessment
Project
WO_740301_TV08168_DEC2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
08 0390
Downstream MH
08 0400
Dir. of Survey
Upstream
Length Surveyed
350 ft.
Total Length
350 ft.
Structural Index
3
Structural Quick
3421
Structural Rating
14
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole 08 0390 to 08 0400
MH: 08 0390MH: 08 0400upstream0 ft. AMH - Upstream Manhole, Survey Ends - 08 040071.2 ft. CM - Crack Multiple, from 11 to 02 o'clock, within 8 inches of joint: YES, Finish91.4 ft. CM - Crack Multiple, from 11 to 02 o'clock, within 8 inches of joint: YES, Start94.1 ft. CL - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES147.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"328.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"350 ft. AMH - Downstream Manhole, Survey Begins - 08 0390350 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK350 ft. MWM - Water Mark, 5 %of cross sectional area350 ft. MWL - Water Level, 5 %of cross sectional area

Observation photos (2)

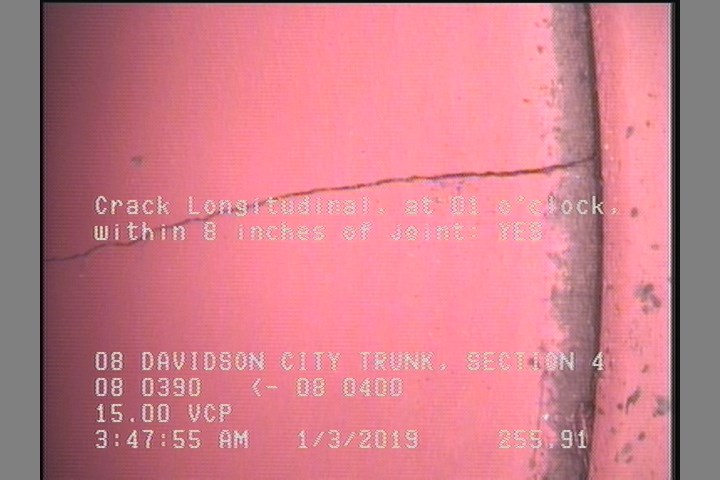

  • Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

    255.9 ft. - Crack Longitudinal, at 01 o'clock, within 8 inches of joint: YES

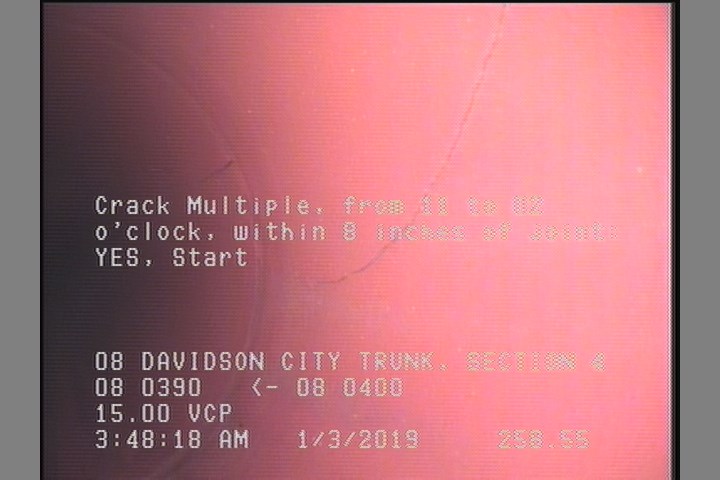

  • Crack Multiple, from 11 to 02 o'clock, within 8 inches of joint: YES, Start

    258.6 ft. - Crack Multiple, from 11 to 02 o'clock, within 8 inches of joint: YES, Start

All inspections of P00453Work order 740301

Observations (10)

DistanceCodeObservation
202.3TF—
0AMH08 0390
255.9CL—
21.1TFC—
258.6CM—
278.8CM—
0MGOCONNECTION AT MH 3 O'CLOCK
0MWM—
350AMH08 0400
0MWL—

Properties (6)

additional_info
SC365496
custom_field_two
3
customer
LACSD
datetime
2019-01-03T03:38:31-08:00
documentation
PROPIPE
is_lateral_inspection
false
