Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 25, 2018, 06:58 AM

  • 32 0161_32 0160_07242018_235906.mp4

Date
07/24/2018
W/O
718360
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00887
PipeID
P19913
Time
11:58 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5880
Sewer Name
32 DISTRICT #32 MAIN TRUNK
City
SANTA CLARITA
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 32
Page No.
13
Purpose
Routine Assessment
Project
WO_718360_TV32015_AUG2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
32 0161
Downstream MH
32 0160
Dir. of Survey
Downstream
Length Surveyed
449.9 ft.
Total Length
449.9 ft.
Structural Index
3
Structural Quick
3Q00
Structural Rating
267
O&M Index
2
O&M Quick
2Q00
O&M Rating
178
Overall Index
3
Overall Quick
—
Overall Rating
445
Pipe schematic from manhole 32 0161 to 32 0160
MH: 32 0161MH: 32 0160downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. AMH - Upstream Manhole, Survey Begins - 32 01612 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2 ft. SAP - Surface Aggregate Projecting, from 08 to 08 o'clock, within 8 inches of joint: YES, Start5.8 ft. MGO - General Observation - MAG COATING THROUGHOUT 60%79.1 ft. TBA - Tap Break-In Active, at 11 o'clock, -, within 8 inches of joint: NO, 6"211.8 ft. TBA - Tap Break-In Active, at 11 o'clock, -, within 8 inches of joint: NO, 6"236.1 ft. TBA - Tap Break-In Active, at 11 o'clock, -, within 8 inches of joint: NO, 6"448.7 ft. SAP - Surface Aggregate Projecting, from 08 to 08 o'clock, within 8 inches of joint: YES, Finish448.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish449.9 ft. AMH - Downstream Manhole, Survey Ends - 32 0160449.9 ft. MGO - General Observation - COCKROACHES IN MANHOLE

Observation photos (4)

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

  • Surface Aggregate Projecting, from 08 to 08 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 08 to 08 o'clock, within 8 inches of joint: YES, Start

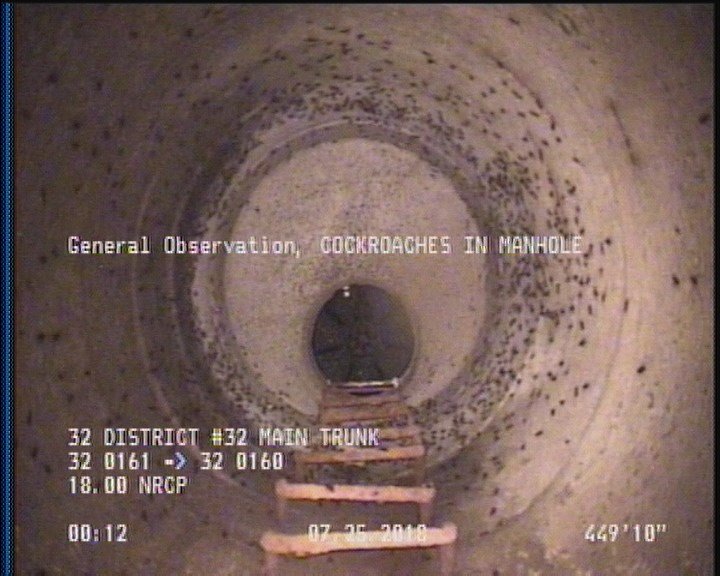

  • General Observation - COCKROACHES IN MANHOLE

    449.9 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P19913Work order 718360

Observations (14)

DistanceCodeObservation
0MWL—
2DAGS—
2SAP—
449.9AMH32 0160
211.8TBA—
449.9MGOCOCKROACHES IN MANHOLE
79.1TBA—
0MWM—
5.8MGOMAG COATING THROUGHOUT 60%
0MGOCOCKROACHES IN MANHOLE
448.7SAP—
236.1TBA—
0AMH32 0161
448.7DAGS—

Properties (6)

additional_info
SC359748
custom_field_two
2
customer
LACSD
datetime
2018-07-24T23:58:45-07:00
documentation
PRO PIPE
is_lateral_inspection
false
