Wastewater/Activity/PacpInspection/1.0Aug 24, 2018, 08:46 AM
32 0113_32 0112A _08242018_014701.mp4
- Date
- 08/24/2018
- W/O
- 718360
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00887
- PipeID
- P25347
- Time
- 1:46 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6017
- Sewer Name
- 32 DISTRICT #32 MAIN TRUNK
- City
- SANTA CLARITA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_718360_TV32015_AUG2018
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- 32 0113
- Downstream MH
- 32 0112A
- Dir. of Survey
- Downstream
- Length Surveyed
- 355.7 ft.
- Total Length
- 355.7 ft.
- Structural Index
- 3
- Structural Quick
- 3M00
- Structural Rating
- 204
- O&M Index
- 2
- O&M Quick
- 2M00
- O&M Rating
- 144
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 348
Observation photos (3)

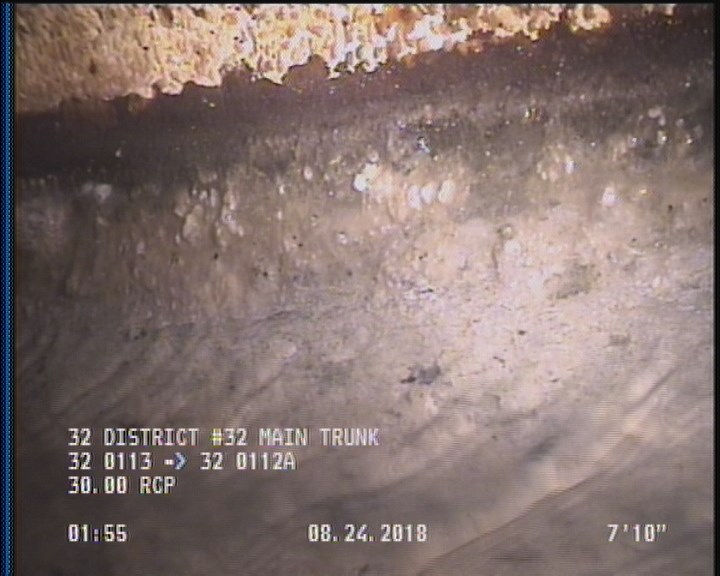

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

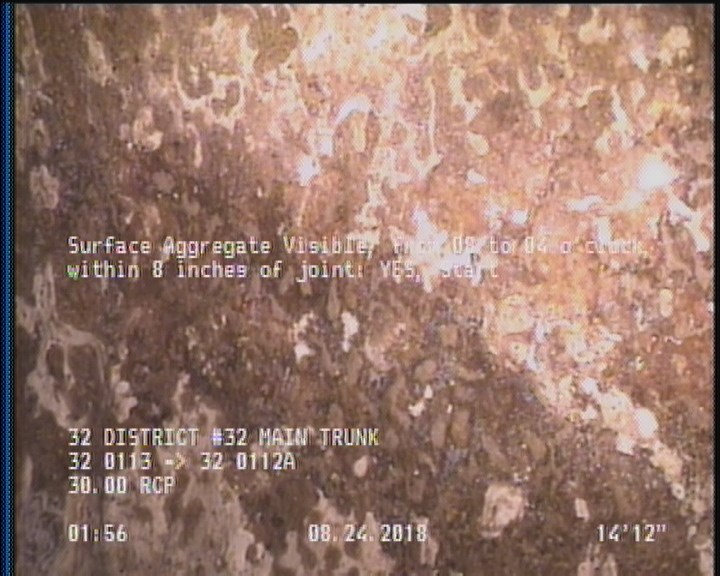

15 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

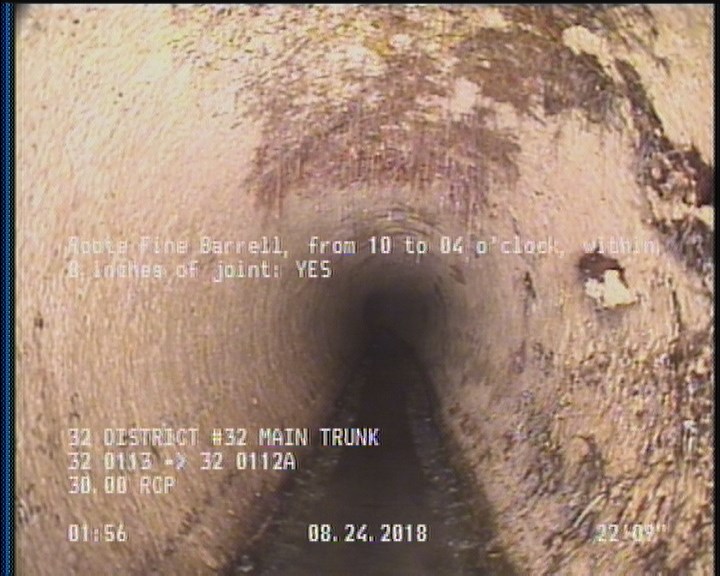

22.8 ft. - Roots Fine Barrell, from 10 to 04 o'clock, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 15 | SAV | — |
| 0 | MWL | — |
| 355.7 | SAV | — |
| 2 | DAGS | — |
| 355.7 | DAGS | — |
| 0 | MGO | MAG COATING THROUGHOUT 70% |
| 355.7 | AMH | 32 0112A |
| 0 | AMH | 32 0113 |
| 22.8 | RFB | — |
Properties (6)
- additional_info
- SC364781
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-08-24T01:46:54-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
