Wastewater/Activity/PacpInspection/1.0Jul 26, 2018, 10:35 AM
32 0141_32 0140 _07262018_033533.mp4
- Date
- 07/26/2018
- W/O
- 718360
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00887
- PipeID
- P19889
- Time
- 3:35 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5881
- Sewer Name
- 32 DISTRICT #32 MAIN TRUNK
- City
- SANTA CLARITA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_718360_TV32015_AUG2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 32 0141
- Downstream MH
- 32 0140
- Dir. of Survey
- Downstream
- Length Surveyed
- 415.4 ft.
- Total Length
- 415.4 ft.
- Structural Index
- 3
- Structural Quick
- 3O00
- Structural Rating
- 246
- O&M Index
- 2
- O&M Quick
- 2O00
- O&M Rating
- 164
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 410
Observation photos (2)
2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

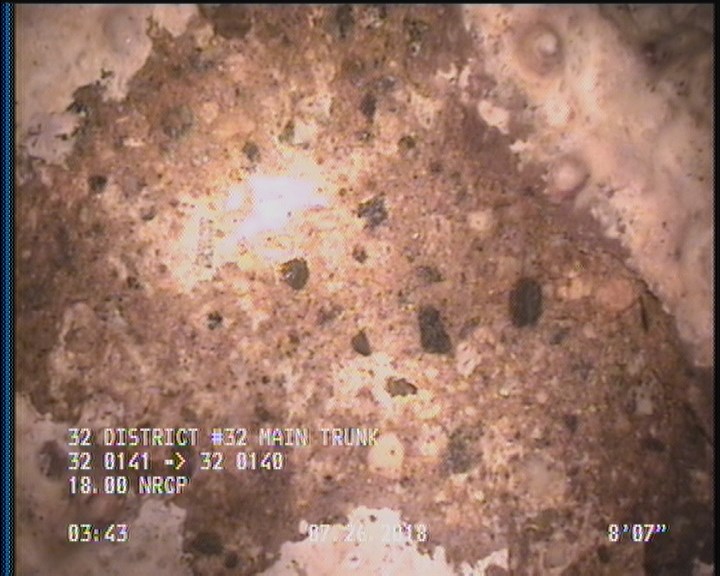

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | MAG COATING THROUGHOUT 75% |
| 2 | DAGS | — |
| 413.8 | DAGS | — |
| 415.4 | AMH | 32 0140 |
| 0 | AMH | 32 0141 |
| 0 | MWM | — |
| 0 | MWL | — |
| 2 | SAP | — |
| 413.8 | SAP | — |
Properties (6)
- additional_info
- SC359749
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-07-26T03:35:19-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
