Wastewater/Activity/PacpInspection/1.0Jul 25, 2018, 09:28 AM
32 0157_32 0185 _07252018_022909.mp4
- Date
- 07/25/2018
- W/O
- 718360
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00887
- PipeID
- P19909
- Time
- 2:28 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5880
- Sewer Name
- 32 DISTRICT #32 MAIN TRUNK
- City
- SANTA CLARITA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_718360_TV32015_AUG2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 32 0157
- Downstream MH
- 32 0185
- Dir. of Survey
- Downstream
- Length Surveyed
- 159.5 ft.
- Total Length
- 159.5 ft.
- Structural Index
- 3
- Structural Quick
- 3E00
- Structural Rating
- 93
- O&M Index
- 2
- O&M Quick
- 3A2E
- O&M Rating
- 95
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 188
Observation photos (3)
2 ft. - Surface Aggregate Projecting, from 12 to 12 o'clock, within 8 inches of joint: YES, Start

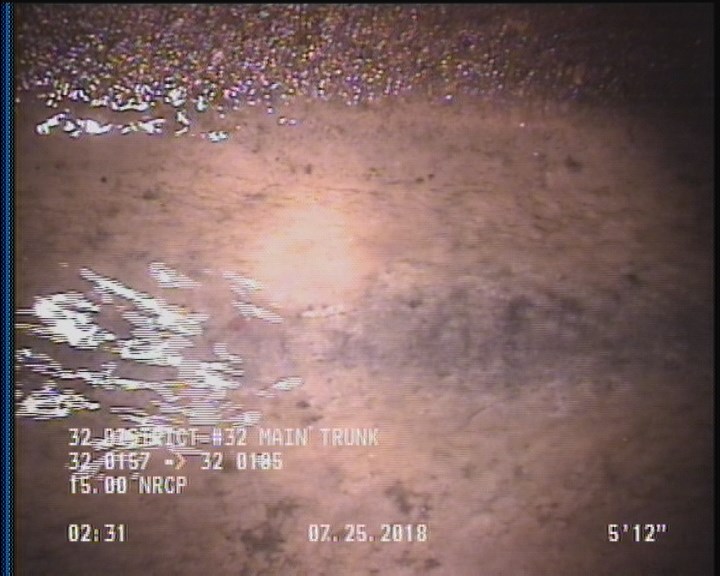

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
159.5 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 2 | SAP | — |
| 159.5 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | AMH | 32 0157 |
| 100.2 | DSZ | DEBRIS |
| 159.5 | AMH | 32 0185 |
| 157.5 | DSZ | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 157.5 | SAP | — |
| 159.5 | MGO | COCKROACHES IN MANHOLE |
| 2 | DAGS | — |
| 157.5 | DAGS | — |
Properties (6)
- additional_info
- SC359748
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-07-25T02:28:51-07:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
