Wastewater/Activity/PacpInspection/1.0Mar 4, 2019, 11:50 AM
J 0307_J 0306_03042019_050252.mp4
- Date
- 03/04/2019
- W/O
- 750731
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00059
- PipeID
- P11548
- Time
- 3:50 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6414
- Sewer Name
- J JOINT OUTFALL J - UNIT 1G
- City
- RANCHO PALOS VERDES
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 41
- Purpose
- Routine Assessment
- Project
- RFIR_WO_750731_TV05319_FEB2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- J 0307
- Downstream MH
- J 0306
- Dir. of Survey
- Downstream
- Length Surveyed
- 336.2 ft.
- Total Length
- 336.2 ft.
- Structural Index
- 3
- Structural Quick
- 3L00
- Structural Rating
- 198
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 132
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 330
Observation photos (3)

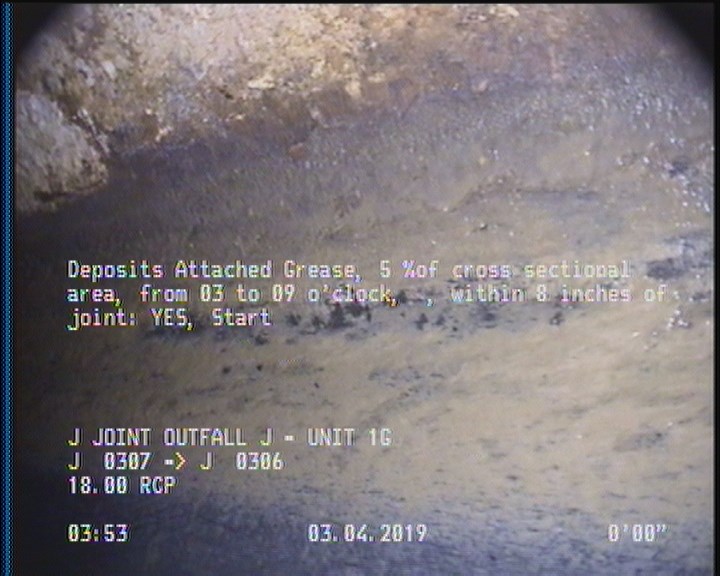

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

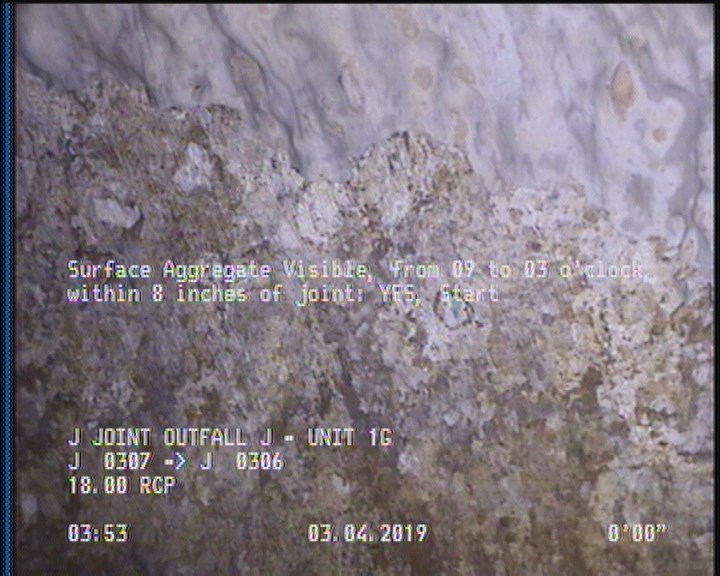

2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

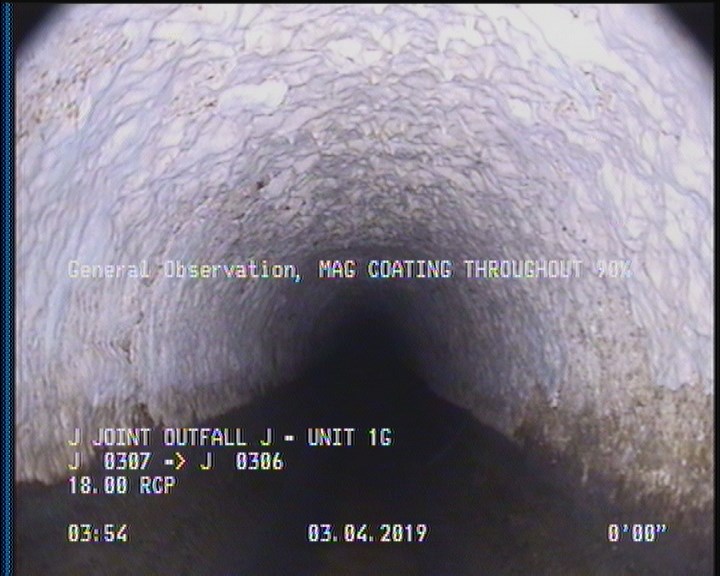

2 ft. - General Observation - MAG COATING THROUGHOUT 90%
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | J 0307 |
| 2 | DAGS | — |
| 2 | SAV | — |
| 0 | MWL | — |
| 336.2 | AMH | J 0306 |
| 2 | MGO | MAG COATING THROUGHOUT 90% |
| 334 | SAV | — |
| 334 | DAGS | — |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC365930
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-03-04T03:50:42-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
