Wastewater/Activity/PacpInspection/1.0Jan 31, 2019, 10:43 AM
14 0239_14 1003_01312019_030656.mp4
- Date
- 01/31/2019
- W/O
- 745527
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00569
- PipeID
- P25747
- Time
- 2:43 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6377
- Sewer Name
- 14 AVENUE "H" TRUNK
- City
- LANCASTER
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- RFIR_WO_745527_TV14038_JAN2019
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- 14 0239
- Downstream MH
- 14 1003
- Dir. of Survey
- Downstream
- Length Surveyed
- 577 ft.
- Total Length
- 577 ft.
- Structural Index
- 3
- Structural Quick
- 5H3V
- Structural Rating
- 790
- O&M Index
- 2
- O&M Quick
- 2V00
- O&M Rating
- 228
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 1018
Observation photos (4)

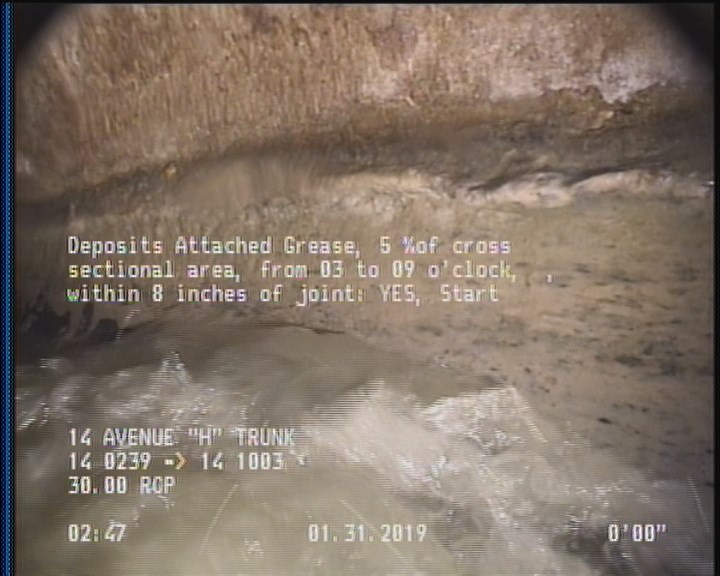

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

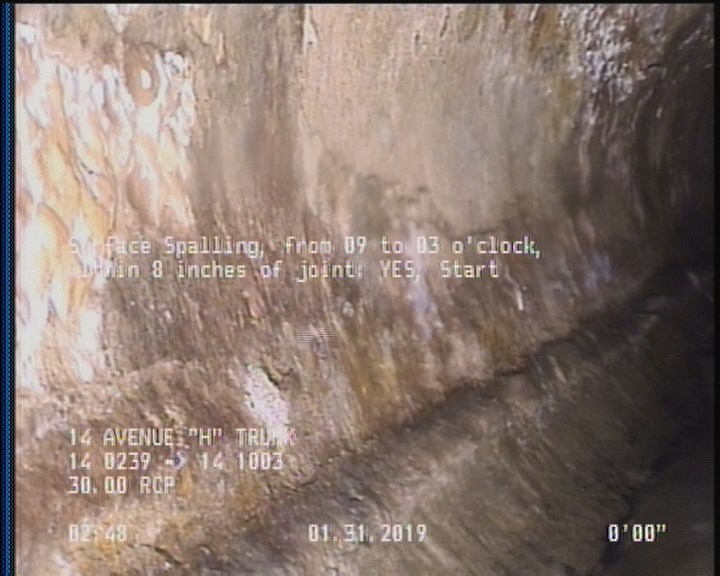

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

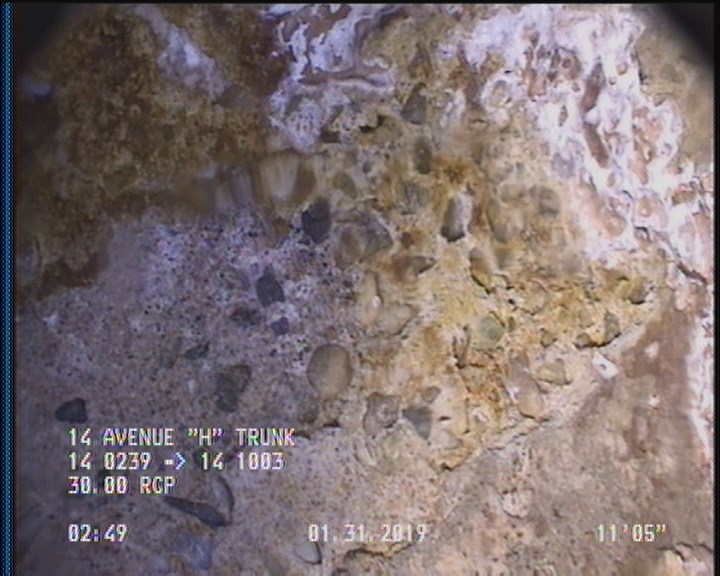

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

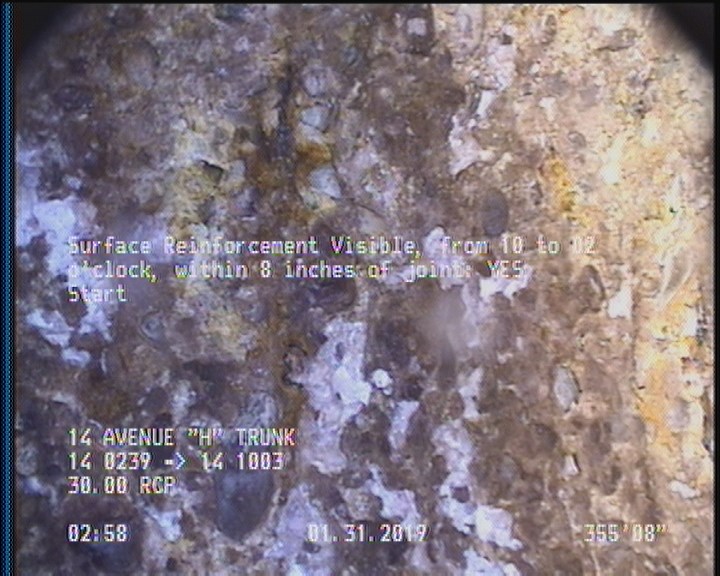

355.6 ft. - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 2 | DAGS | — |
| 0 | MWM | — |
| 573.2 | DAGS | — |
| 2 | SSS | — |
| 573.2 | SRV | — |
| 2 | SAP | — |
| 577 | AMH | 14 1003 |
| 573.2 | SSS | — |
| 355.6 | SRV | — |
| 577 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 0 | AMH | 14 0239 |
| 0 | MWL | — |
| 573.2 | SAP | — |
Properties (6)
- additional_info
- SC365689
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-01-31T02:43:32-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
