Wastewater/Activity/PacpInspection/1.0Feb 1, 2019, 11:06 AM
22 1135_22 1134 _02012019_031146.mp4
- Date
- 02/01/2019
- W/O
- 745522
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00807
- PipeID
- P17513
- Time
- 3:06 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6380
- Sewer Name
- 22 DUARTE TRUNK
- City
- DUARTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- RFIR_WO_745522_TV22157_JAN2019
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 22 1135
- Downstream MH
- 22 1134
- Dir. of Survey
- Downstream
- Length Surveyed
- 80.7 ft.
- Total Length
- 80.7 ft.
- Structural Index
- 3
- Structural Quick
- 3B00
- Structural Rating
- 45
- O&M Index
- 2
- O&M Quick
- 412B
- O&M Rating
- 34
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 79
Observation photos (3)

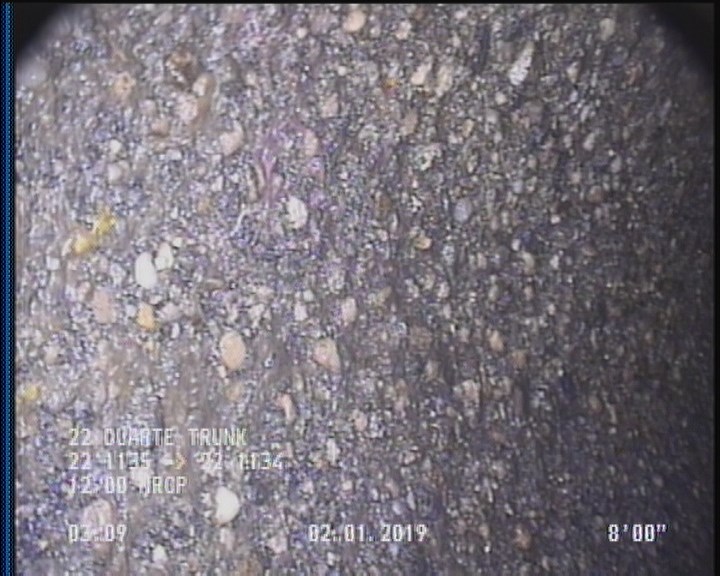

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

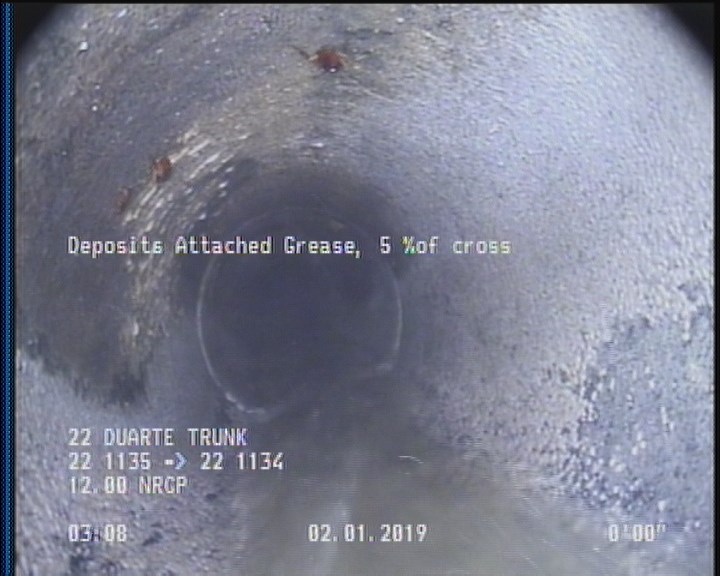

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

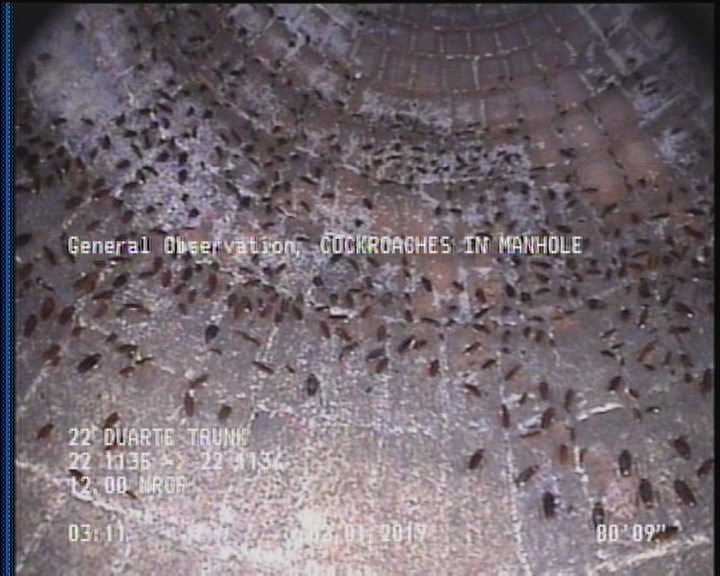

80.7 ft. - General Observation - COCKROACHES IN MANHOLE
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 79.3 | DAGS | — |
| 0 | MWL | — |
| 2 | SAP | — |
| 0 | MWM | — |
| 79.3 | SAP | — |
| 80.7 | AMH | 22 1134 |
| 80.7 | MGO | COCKROACHES IN MANHOLE |
| 0 | AMH | 22 1135 |
| 2 | DAGS | — |
Properties (6)
- additional_info
- SC365692
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2019-02-01T03:06:10-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
