Wastewater/Activity/PacpInspection/1.0Dec 20, 2018, 08:52 AM
02 0259_02 1848_12202018_005359.mp4
- Date
- 12/20/2018
- W/O
- 740647
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00251
- PipeID
- P02570
- Time
- 12:52 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6278
- Sewer Name
- 02 DOWNEY-BELLFLOWER TRUNK
- City
- PICO RIVERA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 25
- Purpose
- Routine Assessment
- Project
- RFIR_WO_740647_TV02381_DEC2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 0259
- Downstream MH
- 02 1848
- Dir. of Survey
- Downstream
- Length Surveyed
- 213.7 ft.
- Total Length
- 213.7 ft.
- Structural Index
- 3
- Structural Quick
- 3G00
- Structural Rating
- 123
- O&M Index
- 3
- O&M Quick
- 4122
- O&M Rating
- 8
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 131
Observation photos (2)

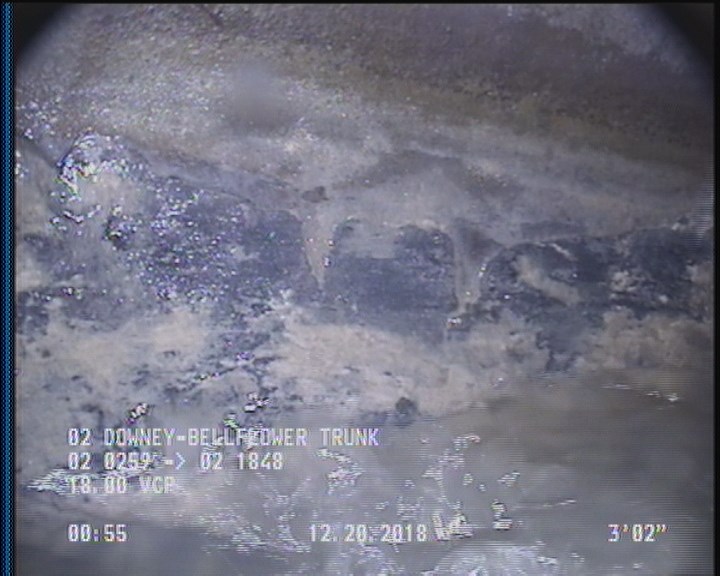

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

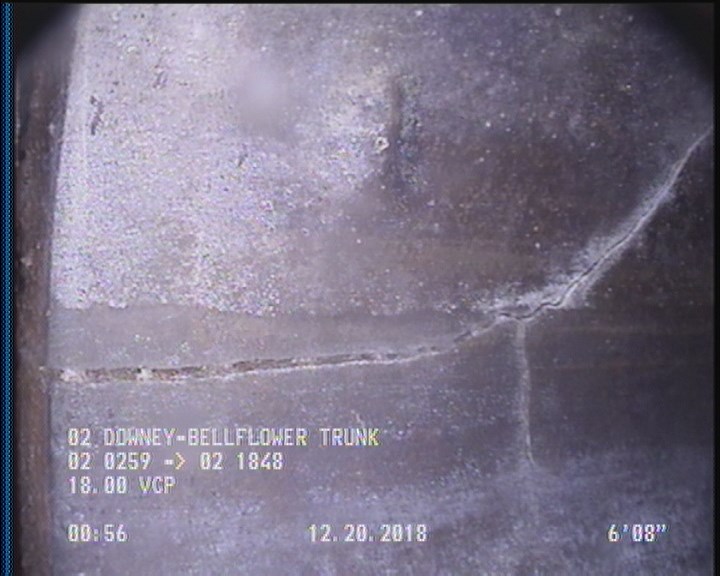

6.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 211.4 | DAGS | — |
| 2 | DAGS | — |
| 211.4 | CM | — |
| 0 | AMH | 02 0259 |
| 213.7 | AMH | 02 1848 |
| 6.7 | CM | — |
| 30.9 | TFC | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 213.7 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
Properties (6)
- additional_info
- SC365394
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-12-20T00:52:16-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
