Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 17, 2018, 10:01 AM

  • 02 0304_02 0303 _12172018_020104.mp4

Date
12/17/2018
W/O
740647
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00251
PipeID
P02618
Time
2:01 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6275
Sewer Name
02 DOWNEY-BELLFLOWER TRUNK
City
PICO RIVERA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
22A
Purpose
Routine Assessment
Project
RFIR_WO_740647_TV02381_DEC2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
02 0304
Downstream MH
02 0303
Dir. of Survey
Downstream
Length Surveyed
134.9 ft.
Total Length
134.9 ft.
Structural Index
3
Structural Quick
3I00
Structural Rating
144
O&M Index
2
O&M Quick
412D
O&M Rating
56
Overall Index
3
Overall Quick
—
Overall Rating
200
Pipe schematic from manhole 02 0304 to 02 0303
MH: 02 0304MH: 02 0303downstream0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MGO - General Observation - COCKROACHES IN MANHOLE0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 03042 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start2 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start18.4 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start48.1 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"130.9 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish131 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish132.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish134.9 ft. MGO - General Observation - COCKROACHES IN MANHOLE134.9 ft. AMH - Downstream Manhole, Survey Ends - 02 0303134.9 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK

Observation photos (3)

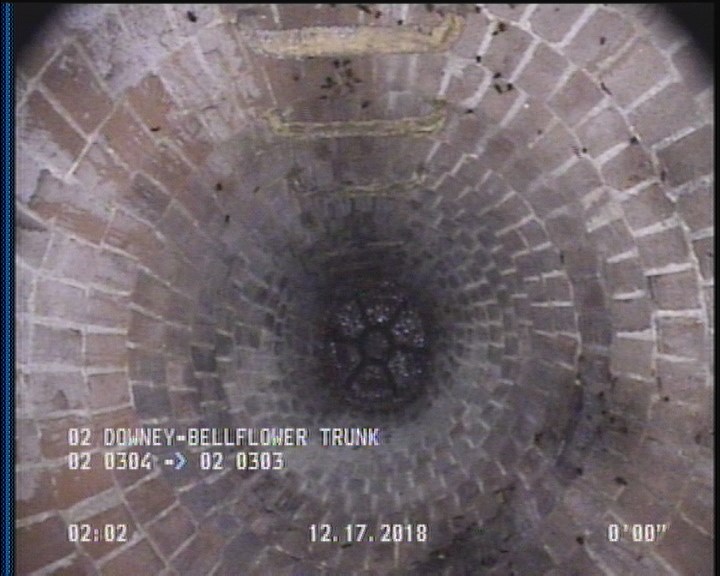

  • General Observation - COCKROACHES IN MANHOLE

    0 ft. - General Observation - COCKROACHES IN MANHOLE

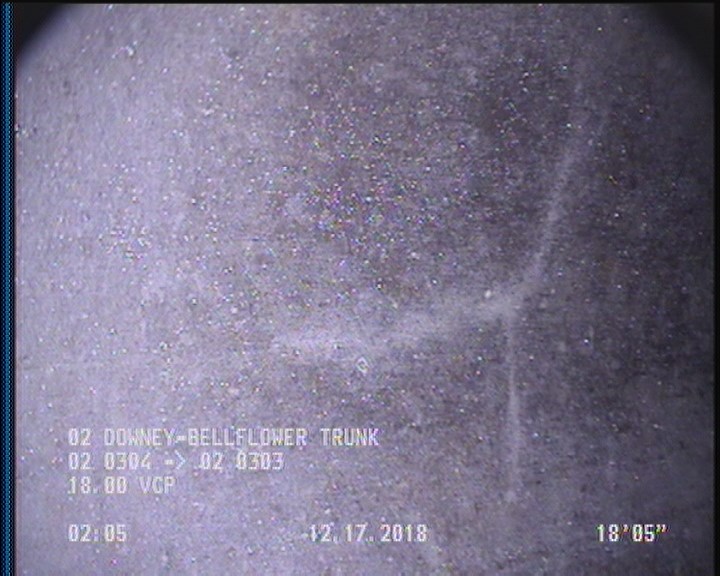

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    18.4 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

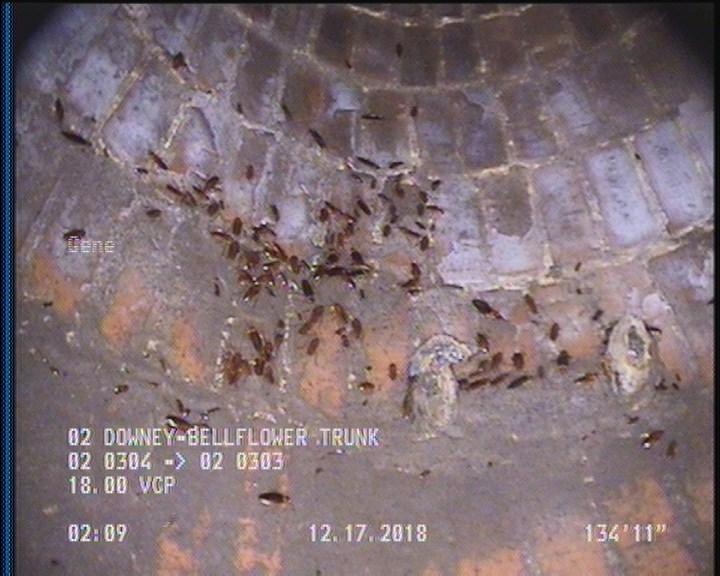

  • General Observation - COCKROACHES IN MANHOLE

    134.9 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P02618Work order 740647

Observations (14)

DistanceCodeObservation
134.9MGOCOCKROACHES IN MANHOLE
0MWM—
0MGOCOCKROACHES IN MANHOLE
0MWL—
131CM—
132.5DAGS—
134.9AMH02 0303
48.1TFA—
2DAGS—
0AMH02 0304
134.9MGOACTIVE CONNECTION AT MH 3 O'CLOCK
18.4CM—
130.9CM—
2CM—

Properties (6)

additional_info
SC365391
custom_field_two
3
customer
LACSD
datetime
2018-12-17T02:01:00-08:00
documentation
PRO PIPE
is_lateral_inspection
false
